Japan OSP-05/250 thread coating bar WFT 5μm length 250mm

The production process is formed, the wet film thickness is 5μm, the diameter is 10mm, the total length is 250mm, the application width is 250mm, the grip width is 0, and the material is 304 stainless steel.

Brand

SKU: NB003708

OSP

Model

Price

$ 93.94

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

OSP shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

OSP OSP-5/250 coating rodOverview
Specifications
Comments
FAQs

OSP-5/250

coating rod

Japan's OSP-05/250 threaded scraping rod breaks the tradition and develops a new extruded coating rod. It uses a special cold extrusion process to process a steel rod to form a coating rod with continuous grooves. The thickness of the wet film is controlled by the size, the workmanship is fine, and it is packaged in an environmentally friendly plastic shell. The wet film thickness of OSP-05 coating rod is 5μm, and the coating width is 250mm.

OSP-05 coating rod operation video

Specification and size of OSP-05 coating stick

Features and advantages of OSP-05 coating stick

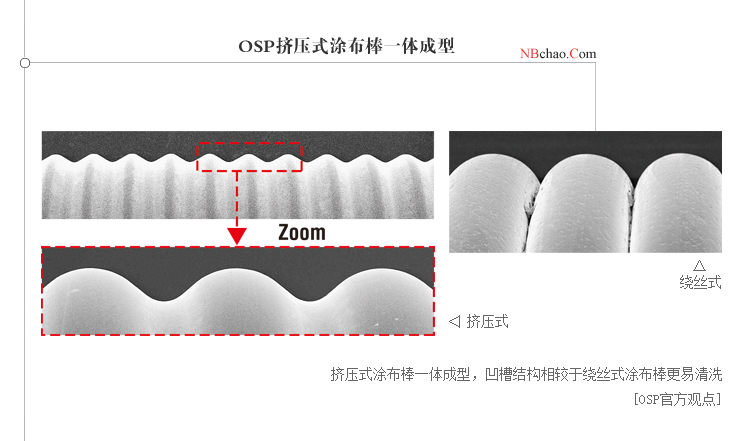

Groove shape of OSP-05 coating stick

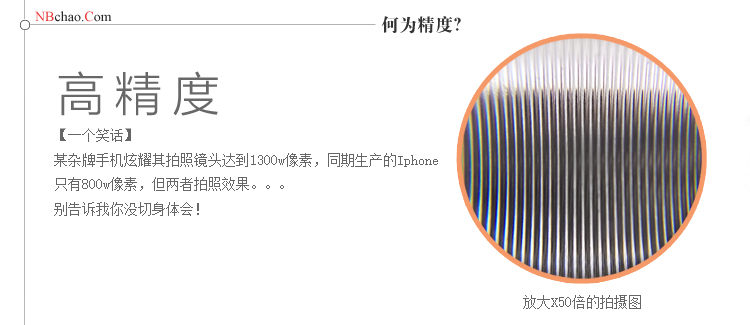

OSP-05 coating rod has high coating precision

Application of OSP-05 coating stick

Why choose NBCHAO Mall to buy OSP-05 coating stick

OSP-05 coating stick real shot picture 1

OSP-05 coating stick real shot picture 2

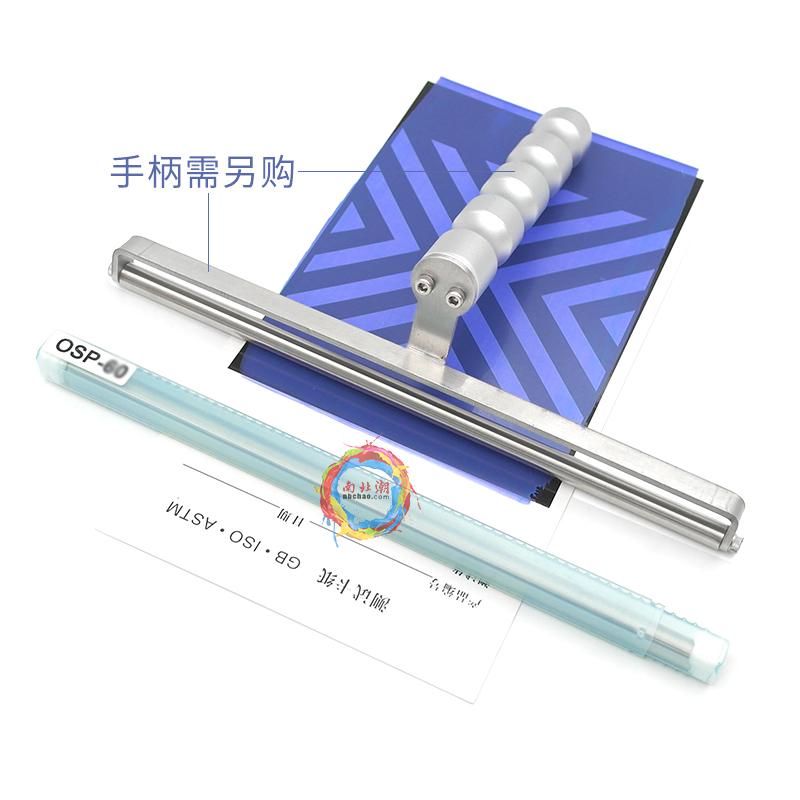

OSP-05 coating stick handle real shot

Optional

Note: Click on the accessory picture to view Details.

OSP OSP-5/250 coating rodSpecifications

LIST	VALUE
Production process	Formed
Wet film thickness	5μm
diameter	10mm
total length	250mm
Application width	250mm
Grip width	0
material	304 stainless steel

OSP OSP-5/250 coating rod Packing list

Stainless Steel Main Rod X1, Transparent External Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is it okay to use the scraping glue for the release film protective film?

[A]

[Q]

Do you have a 5um rod?

[A]

Hello, the OSP-05 stick is a film Film thickness of 5 microns.

[Q]

What is the film fineness of the OSP film scraper? What is the thinnest?

[A]

Hello, it can be done with a 1.5-micron film.

[Q]

I want to buy Applicator rod, is it the thicker the wet film thickness, the thicker the rod?

[A]

Hello, the larger the wet film thickness, the larger the extruded groove.

[Q]

Can this coating rod be prepative of multi-layer ultra-thin film?

[A]

The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
