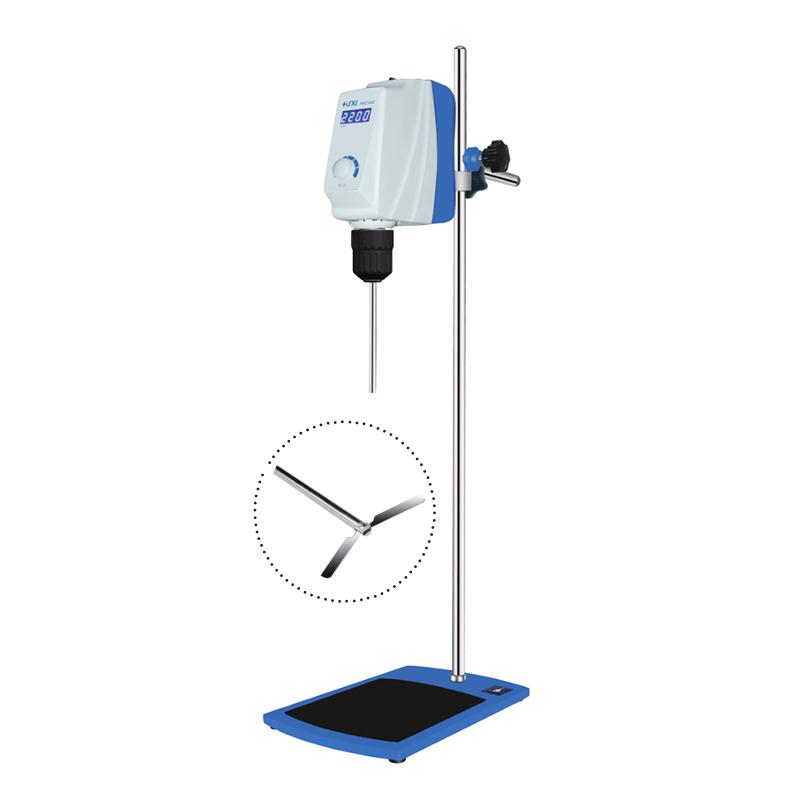

HUXI RWD50E LED Top Stirrer Centrifugal Impeller Paste 90mm Length 350mm

Applications

Overhead (powerful) electric agitators are suitable for mixing medium to high viscosity liquids. It is mainly used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health care products, food, biotechnology and other fields. The product is capable of high-load, ultra-long-term continuous work, and outstanding performance. It has the function of automatic protection against overload and abnormal conditions to ensure the safety of the laboratory.

Features

●LED screen display, the speed can be coarse and finely adjusted, and the speed can also be adjusted during the operation of the instrument;

●The motor is soft-started, running smoothly, and effectively preventing sample overflow;

●The closed shell effectively prevents the liquid from splashing into the instrument and ensures the safe operation of the experiment;

●Equipped with a stirring paddle through hole, the user does not need to adjust the installation height of the instrument, but only needs to adjust the installation position of the stirring rod;

●All kinds of stirring paddles, brackets are optional.

Stirring paddles are optional

1. Round three-hole fan-type stirring paddle

Application: Gentle stirring performance, medium and low speed use, used in the medium that needs to be gentle and stirred.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	500
	70	8	300
	70	8	350
	100	10	300
	100	10	400
	100	10	500

2. Dissolving stirring paddle

Application: Medium and high speed use, so that the mixed medium from the top and bottom to produce radial flow, the formation of strong turbulence and high shear force can crush the particles in the liquid, suitable for medium and high viscosity liquids.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	30	8	350
	40	8	350
	50	8	350
	60	8	350
	80	8	350
	100	8	350
	120	8	350
	150	8	350

3. Three-blade stirring paddle

Application: Stainless steel material, so that the mixed medium flows axially from top to bottom, generating local shear force, which can be used at medium and high speeds.

style	Paddle width mm	The paddles are high mm	Rod diameter mm	Rod length mm
	70	1.5	6	300
	70	1.5	6	350
	70	1.8	6	300
	70	1.8	6	350
	70	1.5	8	300
	70	1.5	8	350
	70	1.8	8	300
	70	1.8	8	350

4. Centrifugal stirring paddle

Application: Folding stirring paddle, the two blades expand with the increase of speed, medium and high speed use, suitable for narrow mouth container paddle height 10mm.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	90	8	300
	90	8	350
	90	8	400
	90	8	500
	90	10	300
	90	10	400
	90	10	500
	90	10	650

5. Four-blade stirring paddle

Application: Standard stirring paddle, stainless steel, medium and high speed use, suitable for medium and low viscosity.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	350
	50	8	500
	100	10	300
	100	10	400
	100	10	500

6. Screw stirring paddle

Application: Slow stirring paddle, often operated in the laminar flow zone, the liquid rises or falls along the spiral surface to form an axial up and down circulation, suitable for the mixing and heat transfer of medium and high viscosity liquids.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	350
	60	8	350
	70	8	350
	80	8	350
	90	8	350
	100	8	350

7. Round six-hole fan-type stirring paddle

Application: Tangential flow is produced during stirring, small turbulence, good heat exchange performance, mild stirring performance, medium and low speed use.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	350
	50	8	500
	100	10	300
	100	10	350
	100	10	400
	100	10	500

8. Slotted stirring paddle

Application: Stainless steel, medium to high speed use, suitable for medium and low viscosity mixing.

style	Slurry diameter mm	Rod diameter mm	Rod length mm
	50	8	300
	50	8	400
	50	8	500
	60	8	300
	60	8	350

9、Round anchor impeller

Application: Tangential flow is generated during stirring, and a high shear rate is formed at the edge, so that the mixed medium is not easy to deposit on the vessel wall, and is suitable for low speeds.

style	Paddle width mm	The paddles are high mm	Rod diameter mm	Rod length mm
	100	60	8	300
	100	60	8	350

10. Square anchor stirring paddle

Application: Low speed use, tangential flow, high shear rate formed at the edge, so that the mixed medium is not easy to be deposited on the container wall, suitable for polymer reaction and dispersion of minerals in liquid, is a satisfactory stirring element for medium and high viscosity fluids.

style	Paddle width mm	Rod diameter mm	Rod length mm
	70	8	300
	70	8	350
	70	8	500
	90	10	650
	140	10	800

11. Quadrangular fan-type stirring paddle

Application: Stainless steel, medium and low speed use

style	Paddle width mm	Rod diameter mm	Rod length mm
	50	8	350
	60	8	350
	60	8	350
	70	8	350

Host X1, Manual X1, Certificate X1, Warranty Card X1, Impeller X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
