Japan OSP-30/400 Spreader roller WFT 30μm length 400mm
The film thickness is 30 microns, the application width is 400mm, 0.5 μm high-precision film, and two types of Spreader rollers, L60 and L250, are also available.
OSP
OSP-30/400
OSP-30/60
OSP-30/250
OSP-30 L2000 Φ16
Japan OSP-30/400 coating roller coating film thickness is 30 microns, coating film width is 400mm, in addition, two types of coating rollers, L60 and L250, can be selected, among which L60 is a short extrusion coating rod , Inheriting the exquisite workmanship of L250 and L400, the coating accuracy is also 0.5 micron, but the price is only half of the two, showing a higher cost performance, suitable for users of small width coating, it is a satisfactory coating tool. The outer packaging of the Japanese OSP coating stick is a light blue environmentally friendly hard plastic shell.
Optional
 |
|
 |  |
Note: Click on the accessory picture to view Details.
OSP OSP-30/400 coating rodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 30pm |
| diameter | 10mm |
| Total length | 400mm |
| Application width | 300mm |
| Grip width | 50+50mm |
| material | 304 stainless steel |

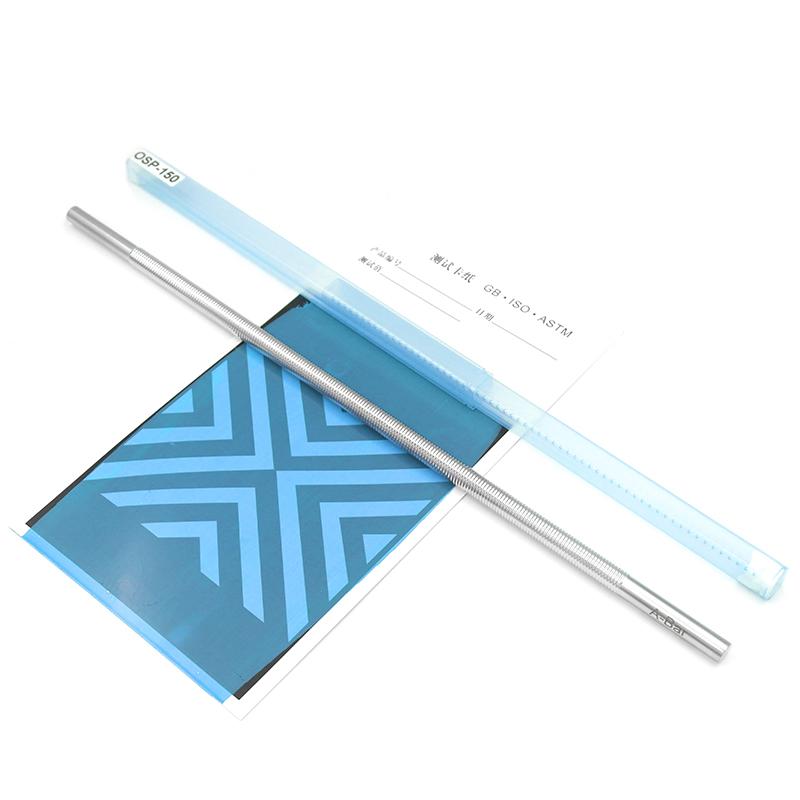

OSP OSP-30/400 coating rod Packing list
Stainless Steel Main Rod X1, Transparent External Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
