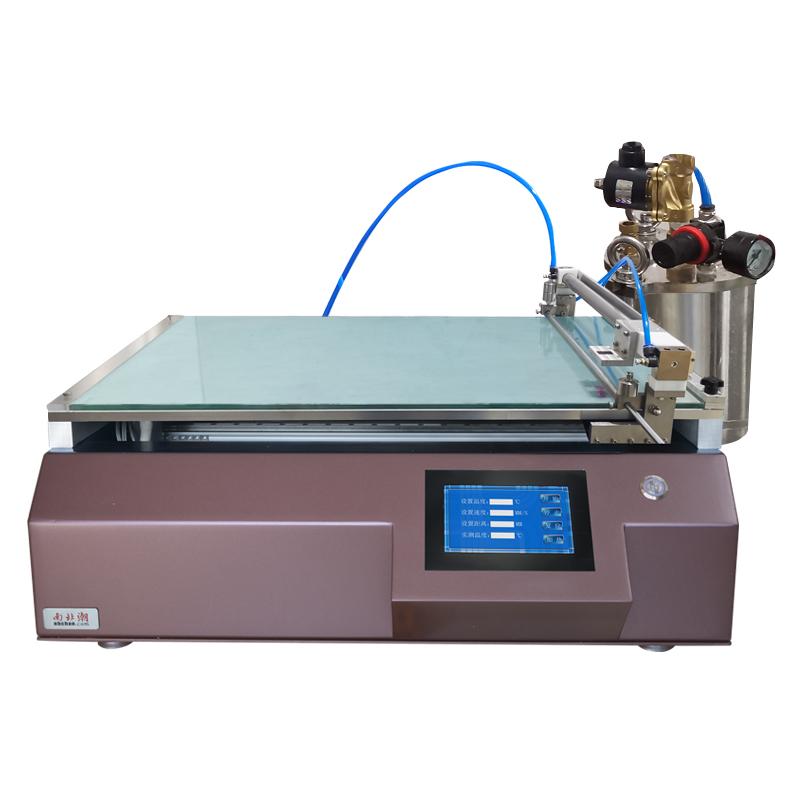

China TBJ-A1-DJ2 bar Lab Film Applicator Automatic Feeding

Bar Spreader, effective coating area 300 * 400mm, equipped with automatic inking system, touch screen operation.

Brand

SKU: NB037829

Boutique

Model

Price

Please contact customer service

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

zy shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

HuiNuo TM3000/07 bar doctor blade coater Coating size 400 * 500mm

$ 3646.00
China Intelligent program-controlled drawdown Bar & blade Film Applicator TBJ-B2-DJ7 Coating size 300 * 450mm

$ 5045.00
China TBJ-X1 Vacuum chuck Drawdown blade Film Applicator Lithium battery small coater

$ 2791.00
HuiNuo TM3300proAK/02 Perovskite Special Film Applicator with Air Knife + Air Knife Bracket 40 * 30cm Servo Motor

$ 5823.00
HuiNuo TM3200proAF/01 Automatic Film Applicator with automatic feeding, effective area 50 * 40cm

$ 5978.00

Genuinegoods

zy TBJ-A1-DJ2 Automatic Film ApplicatorOverview
Specifications
Comments
FAQs

TBJ-A1-DJ2

Automatic Film Applicator

Bar Spreader, effective coating area 300 * 400mm, equipped with automatic inking system, touch screen operation.

The touch laboratory TBJ-A1 wire rod coating testing machine is a newly upgraded product that is carefully designed to coat precise wet films on different substrates. It can repeatedly and continuously prepare smooth, flat and flawless coatings. After testing samples, the equipment has been favored by many familiar companies, research and development institutions, and colleges and universities after it was put into the market.

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 1

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 2

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 3

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 4

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 5

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 6

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 7

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 8

CHINA TBJ-A1-DJ2 Wire Applicator, Automatic Feeding Figure 9

Optional

zy TBJ-A1-DJ2 Automatic Film ApplicatorSpecifications

LIST	VALUE
Application rate	2 ~200mm/s
Coating size	300*400mm
Dimensions	650410520mm
Wire Application Specifications	Standard 1 domestic (CN) bar and 1 imported bar with a precision of up to 1μm (film Film thickness: 1.5μm~ 171.5μm)
Bottom plate material	Glass plate
Key control method	LCD touch screen
Weight	180kg
Shaft drive mode	Timer belt
Ink-jet principle	air pump
Sport mode	Reciprocating linear motion (single ink)
Back and forth traverse speed	2-150mm/s
Ink discharge automatic ink filling system (optional)	Adjustable
power Voltage	220V,50Hz
spit Volume	Adjustable (by adjusting the air pressure and the running speed of the discharge port)
Shaft drive mode	Timer belt
Feeding system air source	0.6Mpa, can be connected to the trachea of φ8 (self-matching)
Feeding system power Voltage	220V,50Hz
Tank pressure	Maximum withstand 8Mpa
Material of feeding barrel	304 stainless steel with wall thickness of 4mm
Feeding barrel configuration	Safety valve, pressure regulating valve, pressure gauge, air discharge valve
Dosing drum Volume	1L
Application mode	Automatic Ink, Wire Application

zy TBJ-A1-DJ2 Automatic Film Applicator Packing list

Film Applicator x1, Automatic Inking System x1, Import bar x2

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
