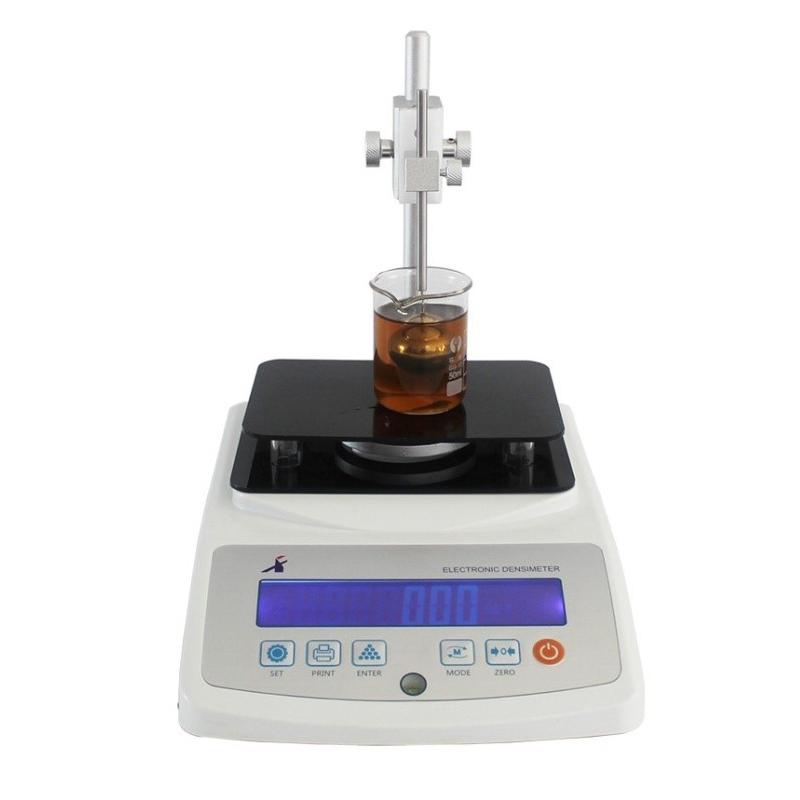

XIONGFA XF-600BH Viscous Liquid Density Meter 600g

Applications

Applicable to: polyester, polyether, mayonnaise, syrup, polyethylene, dispersion paint, ceramic slurry, mercury, ink, liquid resin, grinding liquid, asphalt, liquid adhesive, medium and high viscosity fluidity liquid research experiment room.

It can also be used to measure the density of various fluids such as oil, paint, ink, coating, plastic, slurry, rubber, latex, detergent, resin, condensed milk, cream, medicine, and cosmetics. Instruments needed in laboratories and analysis rooms of petroleum, electromechanical, pharmaceutical, food, light industry, construction and other industries, as well as universities, research institutes, and military departments.

principle

According to the regulations of GB/T21862, GB/T15223, GB/T6750, ASTMD1475, ISO2811-2, ISO1675, DIN53217-3, using Archimedes' method of impregnated Gamma ball volume replacement, with the special design of special gravity meter, accurate reading Take the measured value.

Function

1. The immersion depth of the Gamma liquid surface can be adjusted arbitrarily.

2. It can improve the sticking problem of the mouth of the Gay Lusak and Hubbard pycnometer.

3. Gamma ball can be easily removed and replaced, easy to operate.

4. Gamma ball weight of any weight can be used as its standard value, not limited by volume.

5. It can compensate the error caused by air buoyancy.

Standard accessories: specific gravity Tester, lifting equipment, Gammer ball.

Steps

1. At 0.00, take 50ml of liquid into a beaker and put it into the support platform above the host

2. Use the rotary knob of the lifting table to lower the GAMMA ball into the beaker.

3. Lower the GAMMA ball into the liquid in the beaker until the liquid level reaches the middle of the ball neck. [This position can be compared by testing the density of water]

4. At this time, the weight will appear on the display. After the weight is stable, press the ENTER key, and the density will be displayed on the top of the screen.

host X1, standard GAMMA ball X1, beaker X1, support table X1, labjack ④ lift table X1, hexagon wrench X1, two hexagon screws X1, manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
