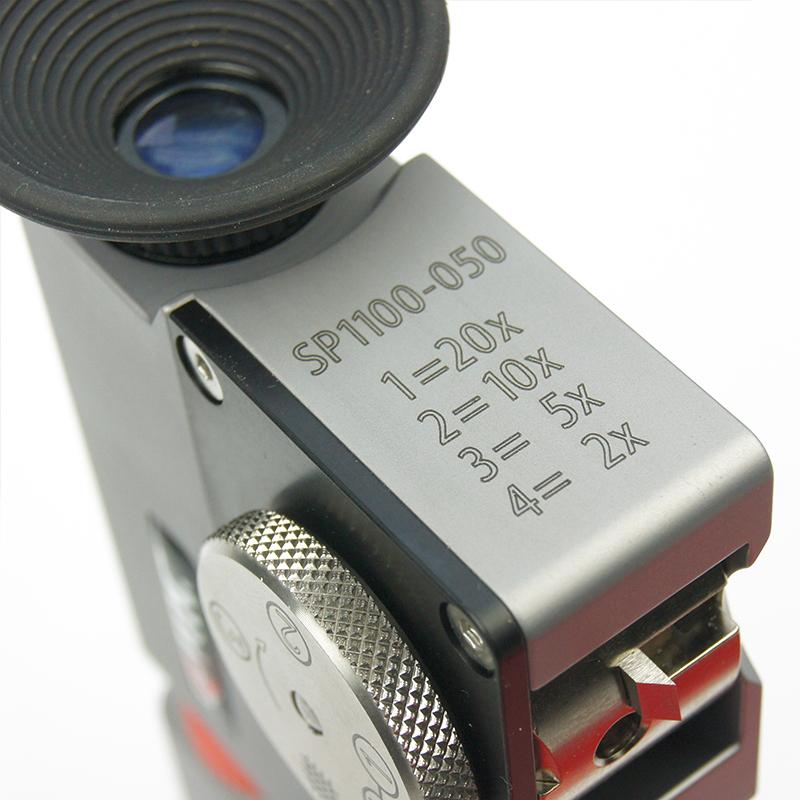

TQC SP1114 Destructiveness Thickness Gauge Blade 4 Blade 2~ 200μm Range

Brand

SKU: NB003849

TQC sheen

Model

Price

$ 287.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

TQC sheen shopSE

Information

Datasheet RFQ Contract Video Catalog

What else did others buy

Defelsko PosiTector 6000 N0S3 imported platings Thickness Gauge

$ 1804.00
HUINUO BP-3000FN Coating Thickness Gauge 3000μm integrated dual-use standard type

$ 220.00
Defelsko NS conventional strip line probe measurement non-ferrous metal substrate coatings

$ 787.00
CHINA CTG-802-1500F Portable Coating Thickness Gauge

$ 220.00
LEEB Leeb232 Coating Thickness Gauge magnetic Induction/eddy Current Range 0~1250μm

$ 413.00

Genuinegoods

TQC sheen SP1114 bladeOverview
Specifications
Comments
FAQs

SP1114

blade

Introduction

TQC Destructive Thickness Gauge Blade SP1111,SP1112、SP1113、SP1114There are four models, each with a different number of edges and measuring ranges, for measuring coating thickness on a single or diverse substrates, including: wood, plastic, metal, etc. Precision destructive measuring instruments made of titanium and aluminum, mainly used to inspect and measure the coating thickness of single or diverse substrates (in fact, all), including: wood, plastic, metal, etc. Defects in substrates and coatings can also be evaluated and measured. A small incision is made on the Super-PIG recoating, and the incision is measured with the help of an LED illumination microscope measurement grid. Reduce calculations. The unique rotary system consists of three stainless steel cutters and one crosscutter.

Parameters

Model	SP1111	SP1112	SP1113	SP1114
Blade	1	2	3	4
range	20-2000μm	10-1000μm	5-500μm	2-200μm
Material	stainless steel
Meets standards	ISO 2808

Product detail drawing

TQC测厚仪刀刃细节图

Coated cutter model is available

	Blade	stainless steel	range
ISO 2808	1	SP1111	20-2000µm
	2	SP1112	10-1000µm
	3	SP1113	5-500µm
	4	SP1114	2-200µm
ISO/DIN 2409	6 teeth, spacing 1mm	SP1702	<60μm (hard substrate)
Crosscutting	6 teeth, spacing 2mm	SP1703	< 60 μm (soft substrate) > 61-120 μm
	6 teeth, spacing 3mm	SP1704	121-250µm
ASTM 3359	11 teeth, 1mm spacing	SP1705	0-50µm
Crosscutting	11 teeth, spacing 1.5mm	SP1706	50-125µm

Take you to the Dutch TQC

TQC公司的历史发展

TQC自动化生产和严格的品质把控

TQC研发团队

TQC sheen SP1114 bladeSpecifications

LIST	VALUE
Measurement principle	destructive
Measurement range	2~200μm
blade	4
Shell material	stainless steel
Standards	ISO 2808

TQC sheen SP1114 blade Packing list

Blade x1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

The film thickness I want to test is about 50~ 60 microns. Which type of blade should I use?

[A]

Hello, there are four models of the blade of this Destructiveness Thickness Gauge. The thickness measurement range of each model includes the Film thickness range of 50-60 microns, but the choice should be made according to your actual experimental situation. The number of blades of different models is different.
