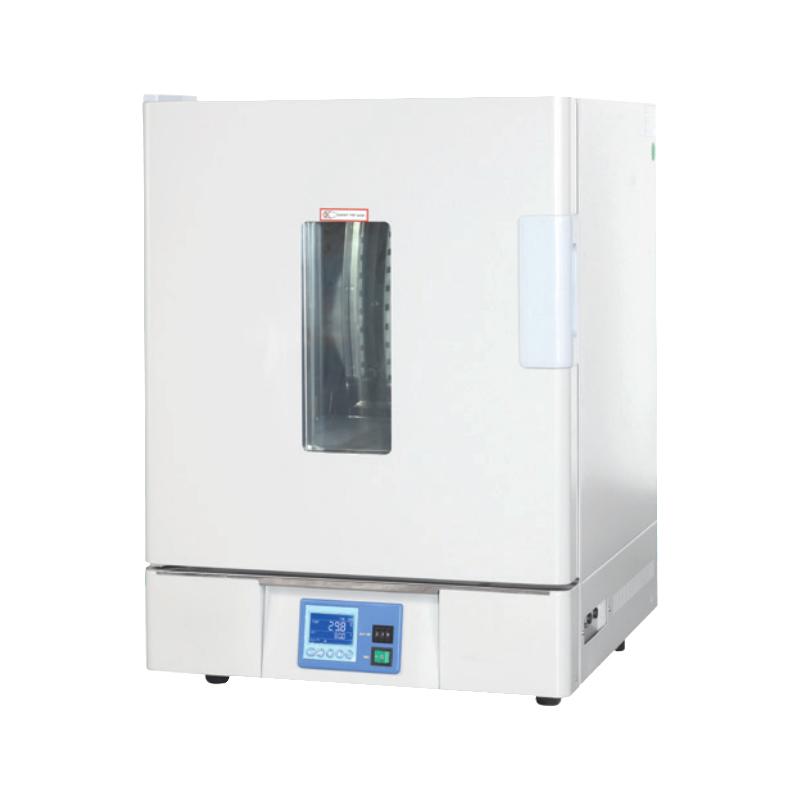

YIHENG BPG-9156B programmable precision Forced Air Drying Oven 175L/1650W

Features

1. Humanized design

● Large-screen LCD display, multiple groups of data displayed on one screen, menu-style operation interface, easy to understand, easy to observe and operate.

●Mirror stainless steel liner is adopted, the four corners are semi-circular transition, and the shelf bracket can be freely loaded and unloaded, which is convenient for the cleaning work of the studio.

2. Multi-segment programmable controller

● Multi-segment LCD programmable controller, one-screen display of various parameters, and menu-style operation interface can simplify the complicated test process and truly realize automatic control and operation.

● Parameters such as multi-stage temperature, circulating wind speed, time and heating rate can be set and programmed at the same time. It can control the gradient of temperature rise, slowly rise from the initial temperature in the box, and can also preset functions such as automatic startup, standby and shutdown .

● 7 groups of 63 steps can be preset, each group has 9 steps, and each group can set the time from 0 to 5999 minutes.

3. Convenient data processing (optional)

● It can be connected to a printer, 485 communication interface or USB data transfer interface (U disk), and record temperature and time with a computer and printer, providing a strong guarantee for data storage and playback during the test .

4. Safety function

● The thickened design of the box wall and door ensures that the temperature of the outer surface of the box is low and protects the safety of users.

● Independent temperature limit alarm system, and sound and light alarm to remind the operator to ensure safe operation without accidents.

● High temperature and over-temperature alarm.

5. Good energy-saving design

● Comprehensive safety performance design prevents high energy consumption from happening.

● The sealing strip of the box adopts a new type of synthetic silicon sealing strip, which can effectively prevent heat loss and prolong the life of the heating element. Compared with traditional equipment, the thermal power is reduced by more than 25%.

host x1, instruction manual x1, packing list x1, certificate x1.

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
