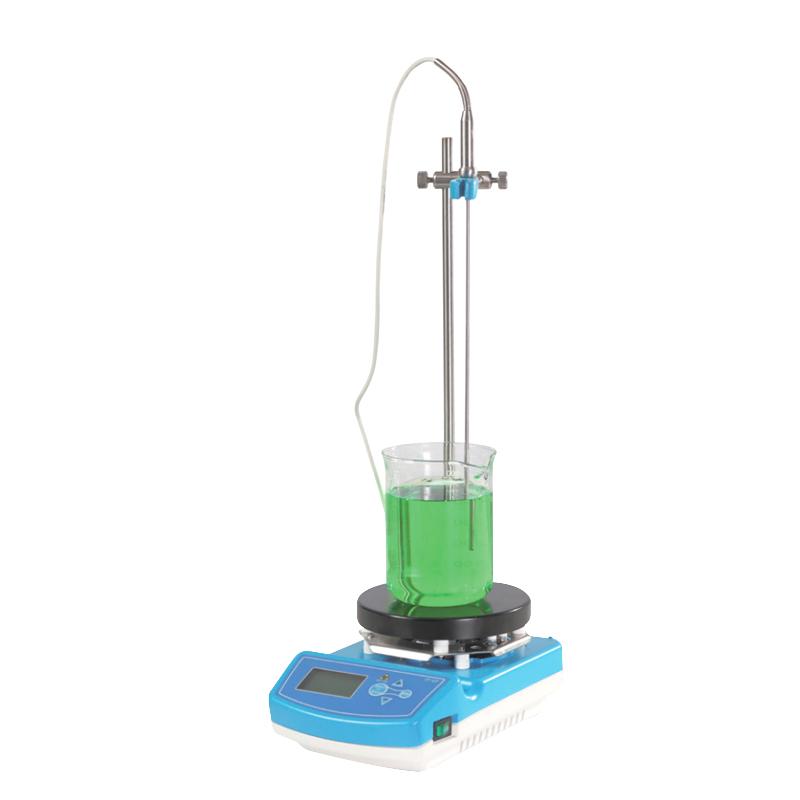

YIHENG IT-08A3 thermostatic Magnetic Stirrer (disc type)
Thermostatic type, external temperature Sensors, can directly measure the liquid temperature in the container, stirring capacity 3L, Heating power 550w, solution temperature control up to 200 ℃, microcomputer control, with temperature deviation protection and anti-scalding warning light.
YiHeng
IT-08A3
IT-08B3
IT-08C5
-
CHIJIU H01-2A 100L Floor Type Stirrer Floor Type, Power 150W
$ 1112.00 -
CHIJIU H03-B Large Capacity Single Stir Magnetic Stirrer Stir Capacity 20L
$ 316.00 -
CHIJIU H01-1C Digital thermostatic Magnetic Stirrer 5L/150 ℃ Timing
$ 240.00 -
BDJK HMS-15H Multi-point heating Magnetic Stirrer
$ 1622.00 -
QIWEI MC-SCL-T Mini Magnetic Stirrer Digital Display Timing Charging Model
$ 111.00
Product Description
The magnetic stirrer is driven by a micro-motor to rotate a high-temperature-resistant strong magnet to generate a rotating magnetic field to drive the stirrer in the container to rotate, thereby stirring, mixing or auxiliary heating the liquid in the container so that the solution can be fully mixed at the set temperature. It can be widely used Used in biology, medicine, chemistry and other fields.
Features
● LCD, menu-style operation interface, parameters such as temperature, speed and countdown are displayed on one screen, which is easy to understand and easy to observe and operate.
● Equipped with microcomputer control technology, it ensures that the rotation speed remains constant when the stirring viscosity is constantly changing.
● The aluminum alloy die-casting shell has the characteristics of high temperature resistance, corrosion resistance and easy cleaning.
● The base material of the heating table is aluminum alloy, and the exterior is sprayed with composite material coating, which not only has good heat conduction effect, but also has corrosion resistance. The smooth mixing table is easy to clean and has no pollutants.
● Large output torque, suitable for stirring solutions with low viscosity and large volume or high viscosity and small volume. (Different models have different volumes)
● An anti-corrosion liquid guiding groove is designed on the top of the control panel, even if the liquid overflows during the stirring process, it will not cause damage to the electronic components in the agitator.
● The heating platform adopts a disc, which concentrates the heat, and is more suitable for heating and stirring round beakers and Erlenmeyer flasks.
● Adopting brushless DC motor, the operation is more stable, the life is longer, and the speed control is more precise.
safety protection
● Temperature deviation protection: 08A/B series will stop heating when the measured temperature exceeds a certain value of the set temperature (10°C-30°C).
● Anti-scalding warning light: 08A/B series work plate temperature exceeds 55 ℃, the indicator light flashes to remind users not to touch the work plate.
● Special protection: anti-scald cover (optional, price: 600 yuan).
Disc type stirrer classification
● Constant temperature magnetic stirrer: IT-08A series external temperature sensor can directly measure and control the temperature of the liquid in the container, and the temperature control is accurate and reliable.
● Heating magnetic stirrer: IT-08B series monitors and controls the temperature of the heating table.
● Magnetic stirrer: IT-08C has no heating function.
YiHeng IT-08A3 Magnetic Stirrer (Disc Type)Specifications
| LIST | VALUE |
|---|---|
| Max. Capacity of stirring | 3L(H2O) |
| Stirring speed | 200~2000rpm |
| Heating power | 550W |
| Input power | 600W |
| Temperature range | RT+5-200°C |
| Temperature control Accuracy | ±5℃ |
| Pan size | F145mm |
| Dimensions | 150*250*130mm |
| Single machine Weight | 4KG |
YiHeng IT-08A3 Magnetic Stirrer (Disc Type) Packing list
host x1, instruction manual x1, packing list x1, certificate x1.
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
