CHINA Resin wire-wound drawdown Bar ASP 330μm film thickness length 400mm Metering rod
330μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material.
Aosipai
ASP330-L400
-
RDS 42 #3/8 "Applicator rod WFT 96.0μm Length 400mm
$ 162.00 -
UK RK KHC.11.6 Wire-wound drawdown Bar Coating Applicator WFT 60μm orange glue head No. 6 rod
$ 168.00 -
CHINA threaded rod film 90μm formed Film Applicator, laboratory use
$ 110.00 -
RDS 75 #1/4 "Applicator rod film thickness 171.5μm rod diameter 6.35mm
$ 156.00 -
Japan OSP OSP-150T L250 Applicator rod wire-wound drawdown Bar WFT 150μm length 250mm
$ 153.00
ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 400mm, the effective coating width is 300mm, and the grips at both ends are 5cm each. There is no need for a matching handle, and it can be directly held and scraped.
This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.
Wire Bar Coater Dimensional Drawing
Models List of ASP Wire Bar Coater
| model | wet film thickness | Effective coating width | Coating process |
| ASP180-L400 | 180μm | 300mm | Squeeze |
| ASP200-L400 | 200μm | ||
| ASP230-L400 | 230μm | ||
| ASP250-L400 | 250μm | ||
| ASP275-L400 | 275μm | ||
| ASP300-L400 | 300μm | ||
| ASP330-L400 | 330μm | ||
| ASP350-L400 | 350μm | ||
| ASP400-L400 | 400μm | ||
| ASP450-L400 | 450μm | ||
| ASP500-L400 | 500μm | ||
| ASP550-L400 | 550μm | ||
| ASP600-L400 | 600μm |

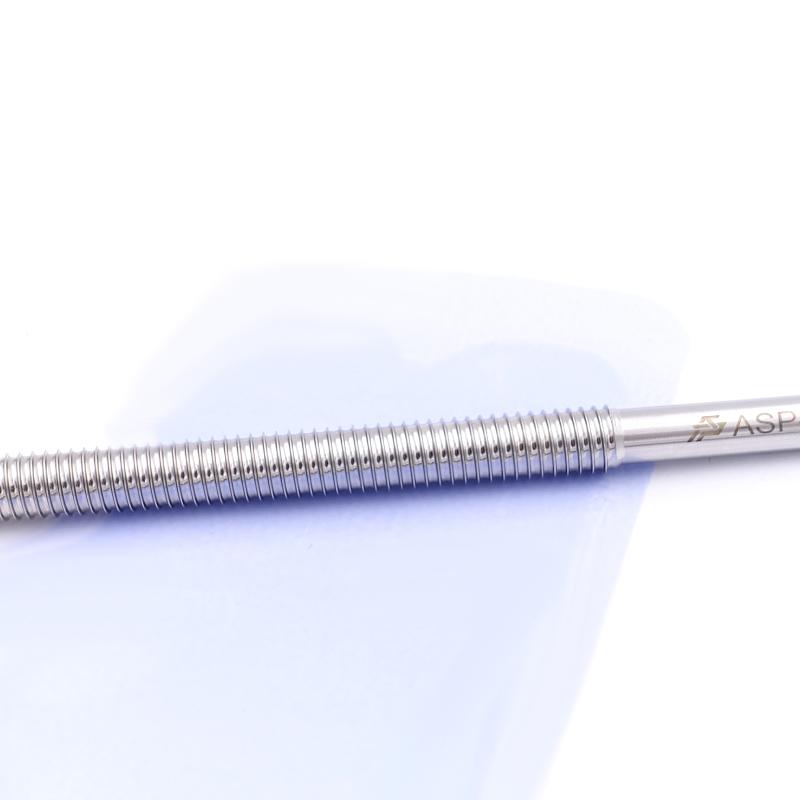

Aosipai ASP330-L400 Mayer RodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 330µm |
| diameter | 10mm |
| Total length | 400mm |
| Application width | 300mm |
| Grip width | 50mm |
Aosipai ASP330-L400 Mayer Rod Packing list
Bar X1, Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
