CHINA ASP bar Applicator rod 400μm film thickness Film Applicator
400μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material.
Aosipai
ASP400-L400
ASP400-L250
-
Japan OSP OSP-200T L60 Applicator rod wire-wound drawdown Bar WFT 200μm length 60mm
$ 116.00 -
Japan OSP-1.5/400 A-Bar WFT 1.5μm length 400mm
$ 173.00 -
Wet Film Applicator Rod 35μm Applicator Mayer-Rod Stainless Steel Preparation Rod, Polymer Applicator
$ 110.00 -
Japan OSP-05/400 Applicator rod WFT 5μm length 400mm
$ 173.00 -
American RDS 15 #1/4 "wide-wound color bar film thickness 34.3μm
$ 156.00
ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 400mm, the effective coating width is 300mm, and the grips at both ends are 5cm each. There is no need for a matching handle, and it can be directly held and scraped.
This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.
Wire Bar Coater Dimensional Drawing
Models List of ASP Wire Bar Coater
| model | wet film thickness | Effective coating width | Coating process |
| ASP180-L400 | 180μm | 300mm | Squeeze |
| ASP200-L400 | 200μm | ||
| ASP230-L400 | 230μm | ||
| ASP250-L400 | 250μm | ||
| ASP275-L400 | 275μm | ||
| ASP300-L400 | 300μm | ||
| ASP330-L400 | 330μm | ||
| ASP350-L400 | 350μm | ||
| ASP400-L400 | 400μm | ||
| ASP450-L400 | 450μm | ||
| ASP500-L400 | 500μm | ||
| ASP550-L400 | 550μm | ||
| ASP600-L400 | 600μm |

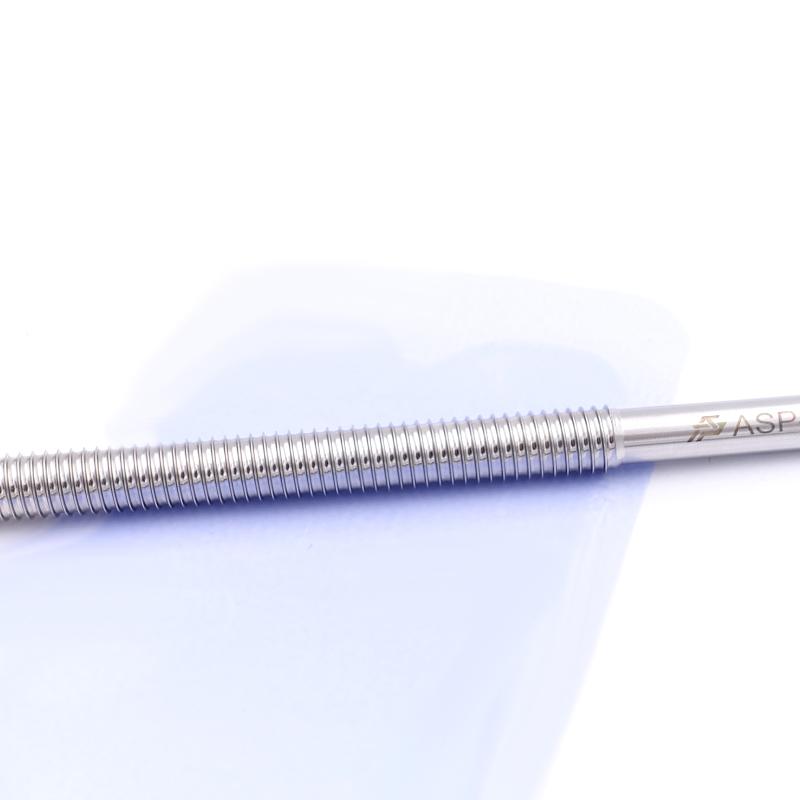

Aosipai ASP400-L400 Mayer RodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 400µm |
| diameter | 10mm |
| Total length | 400mm |
| Application width | 300mm |
| Grip width | 50mm |
| material | Stainless steel material |
Aosipai ASP400-L400 Mayer Rod Packing list
Bar X1, Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
