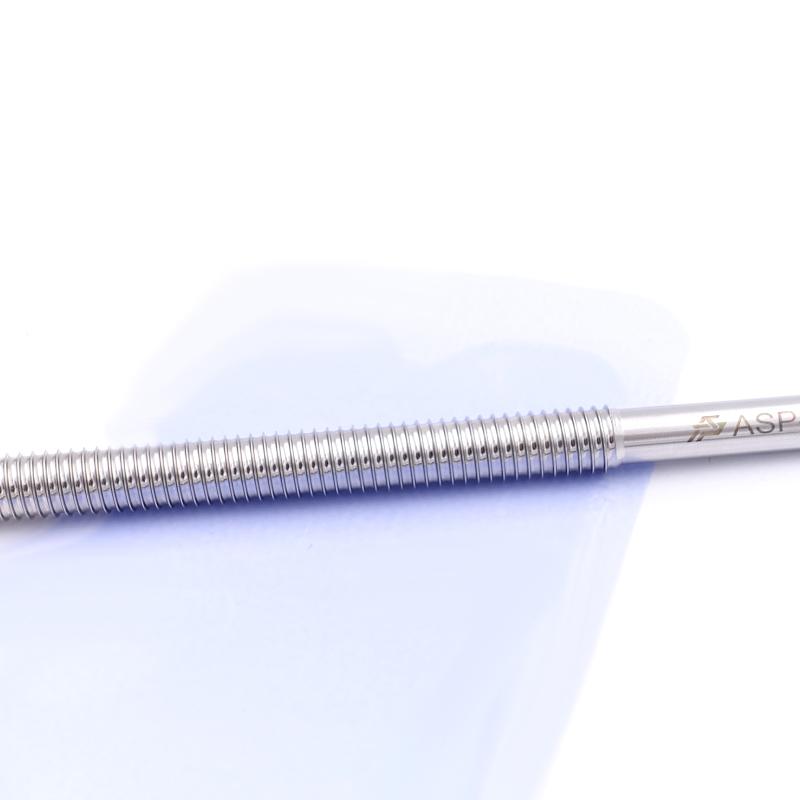

CHINA bar Spreader 450 μm formed Mayer Rod 400mm long
450μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material
Aosipai
ASP450-L400
-
Pushen XB-II 100um inks bar, length 400mm
$ 110.00 -
RDS 4 #1/2 "Steel Wire Drawdown Rod film thickness 9.1μm Wire diameter 0.36mm
$ 181.00 -
Japan OSP OSP-100T L250 Applicator rod wire-wound drawdown Bar WFT 100μm length 250mm
$ 153.00 -
RDS 14 #1/2 "Steel Wire Drawdown Rod film thickness 32.0 μm Wire diameter 0.36mm
$ 181.00 -
RDS 12 #1/4 "Applicator rod film thickness 27.4 μm rod diameter 6.35mm
$ 156.00
ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 400mm, the effective coating width is 300mm, and the grips at both ends are 5cm each. There is no need for a matching handle, and it can be directly held and scraped.
This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.
Wire Bar Coater Dimensional Drawing
Models List of ASP Wire Bar Coater
| model | wet film thickness | Effective coating width | Coating process |
| ASP180-L400 | 180μm | 300mm | Squeeze |
| ASP200-L400 | 200μm | ||
| ASP230-L400 | 230μm | ||
| ASP250-L400 | 250μm | ||
| ASP275-L400 | 275μm | ||
| ASP300-L400 | 300μm | ||
| ASP330-L400 | 330μm | ||
| ASP350-L400 | 350μm | ||
| ASP400-L400 | 400μm | ||
| ASP450-L400 | 450μm | ||
| ASP500-L400 | 500μm | ||
| ASP550-L400 | 550μm | ||
| ASP600-L400 | 600μm |
Aosipai ASP450-L400 Mayer RodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 450µm |
| diameter | 10mm |
| Total length | 400mm |
| Application width | 300mm |
| Grip width | 50mm |
| material | Stainless steel material |
Aosipai ASP450-L400 Mayer Rod Packing list
Bar X1, Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
