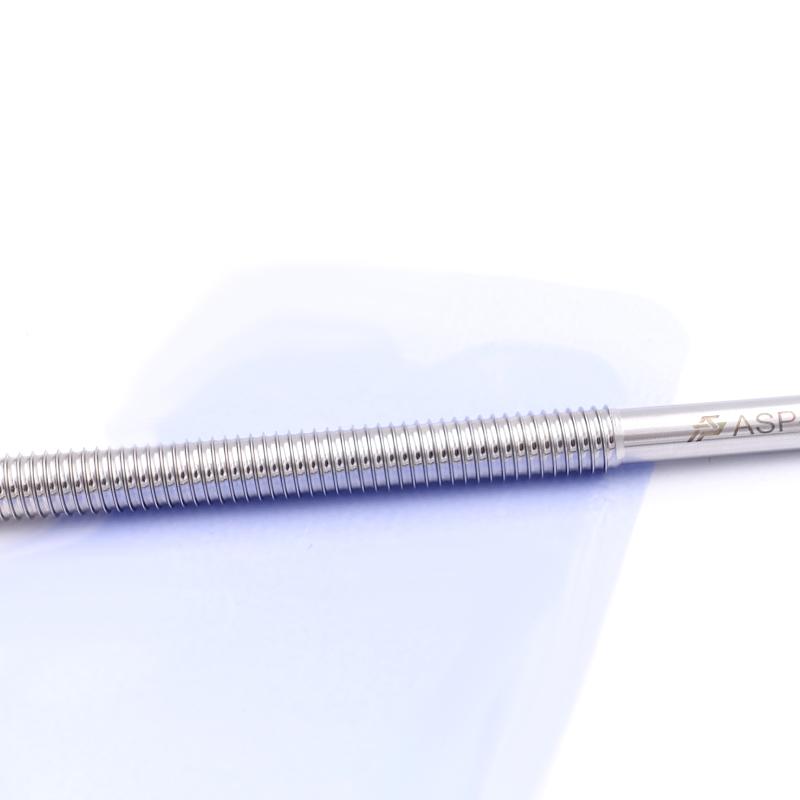

CHINA Spreader coating bar 500μm WFT formed coating rod Mayer Rods
500μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material, support customization.
Aosipai
ASP500-L400
-
Japan OSP OSP-230T L60 Applicator rod wire-wound drawdown Bar WFT 230μm Length 60mm
$ 115.00 -
RDS 44 #1/2 "Steel Wire Drawdown Rod film thickness 100.6μm Wire diameter 1.12mm
$ 179.00 -
RDS 44 #3/8 "Mayer Rods WFT 100.6μm Length 400mm
$ 161.00 -
RDS 32 #1/4 "wire-wound Applicator rod film thickness 73.2μm Wire diameter 0.81mm
$ 155.00 -
Japan OSP OSP-200T L400 Coating bar film thickness 200μm
$ 172.00
ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 400mm, the effective coating width is 300mm, and the grips at both ends are 5cm each. There is no need for a matching handle, and it can be directly held and scraped.
This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.
Wire Bar Coater Dimensional Drawing
Models List of ASP Wire Bar Coater
| model | wet film thickness | Effective coating width | Coating process |
| ASP180-L400 | 180μm | 300mm | Squeeze |
| ASP200-L400 | 200μm | ||
| ASP230-L400 | 230μm | ||
| ASP250-L400 | 250μm | ||
| ASP275-L400 | 275μm | ||
| ASP300-L400 | 300μm | ||
| ASP330-L400 | 330μm | ||
| ASP350-L400 | 350μm | ||
| ASP400-L400 | 400μm | ||
| ASP450-L400 | 450μm | ||
| ASP500-L400 | 500μm | ||
| ASP550-L400 | 550μm | ||
| ASP600-L400 | 600μm |
Aosipai ASP500-L400 Mayer RodsSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 500µm |
| diameter | 10mm |
| Total length | 400mm |
| Application width | 300mm |
| Grip width | 50mm |
| material | Stainless steel material |
Aosipai ASP500-L400 Mayer Rods Packing list
Bar X1, Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
