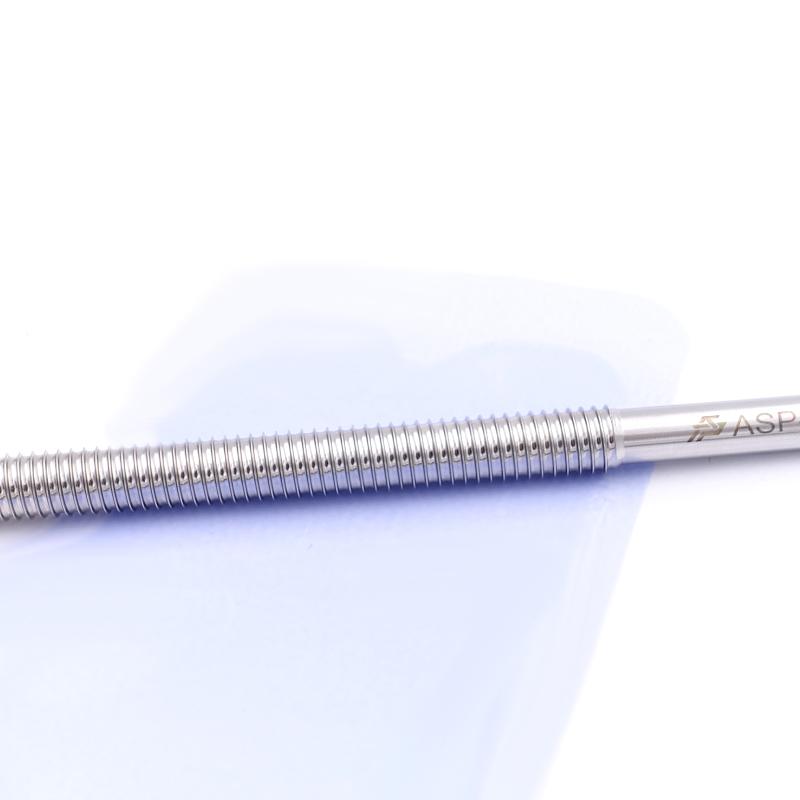

CHINA ASP formed coating rod 550μm film thickness Metering rod Stainless steel Applicator rod

550μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material

Brand

SKU: NB038982

Aosipai

Model

ASP550-L400

Price

$ 134.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Aosipai shopSE

Information

Datasheet RFQ Contract

What else did others buy

Genuinegoods

Aosipai ASP550-L400 Mayer RodOverview
Specifications
Comments
FAQs

ASP550-L400

Mayer Rod

550μm film thickness, 300mm application width, formed process, groove is not blocked, easy to clean, stainless steel material

ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 400mm, the effective coating width is 300mm, and the grips at both ends are 5cm each. There is no need for a matching handle, and it can be directly held and scraped.

This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.

Wire Bar Coater Dimensional Drawing

ASP ASP550-L400 Wire Bar Coater Details Figure 1

Models List of ASP Wire Bar Coater

model	wet film thickness	Effective coating width	Coating process
ASP180-L400	180μm	300mm	Squeeze
ASP200-L400	200μm
ASP230-L400	230μm
ASP250-L400	250μm
ASP275-L400	275μm
ASP300-L400	300μm
ASP330-L400	330μm
ASP350-L400	350μm
ASP400-L400	400μm
ASP450-L400	450μm
ASP500-L400	500μm
ASP550-L400	550μm
ASP600-L400	600μm

Aosipai ASP550-L400 Mayer RodSpecifications

LIST	VALUE
Production process	Formed
WFT	550µm
diameter	10mm
Total length	400mm
Application width	300mm
Grip width	50mm
material	Stainless steel material

Aosipai ASP550-L400 Mayer Rod Packing list

Bar X1, Transparent Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
