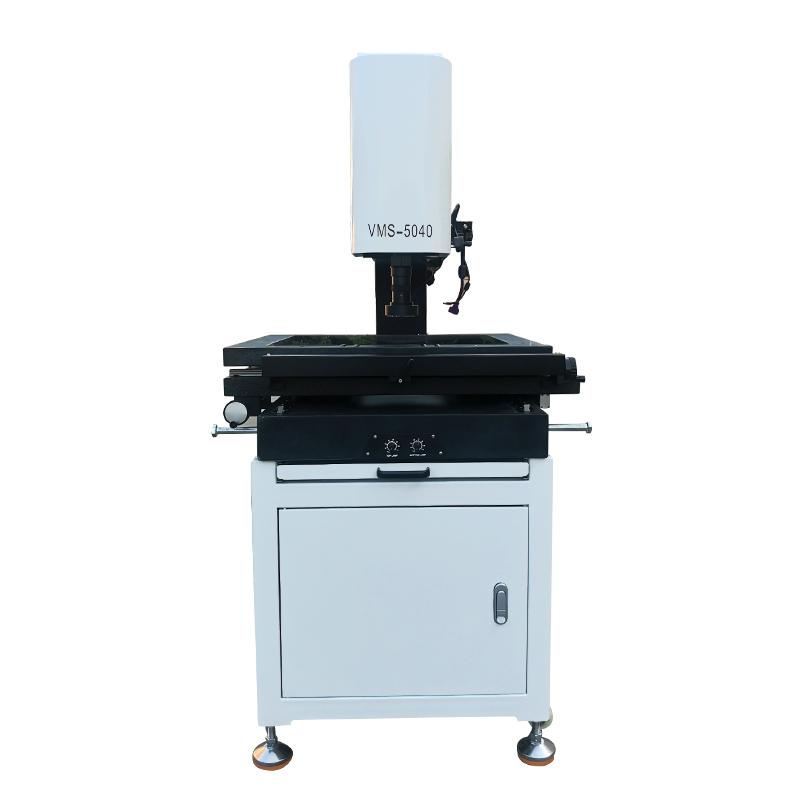

CHINA ASR-YX-5040 2D Imager, Manual 500 × 400mm

Introduction

The two-dimensional image measuring instrument adopts a digital measurement method to convert the shape of the measured object to the computer through image acquisition, and uses professional measurement software to measure the size of the object, while the traditional projector measures the object after it is enlarged through optical projection;

The two-dimensional image measuring instrument is mainly used in the detection, positioning, evaluation and diagnosis of various defects (welds, cracks, inclusions, pores, etc.) inside the workpiece. It can be used in both laboratories and engineering sites . Widely used in boilers, pressure vessels, aerospace, aviation, electric power, petroleum, chemical, offshore oil, pipelines, military industry, shipbuilding, automobiles, machinery manufacturing, metallurgy, metal processing, steel structures, railway transportation, nuclear power, universities, etc. industry.

Features

1. Strive for high-precision measurement in the optical field, and independently develop all marble structure products (the base, column, and workbench all use high-precision "Jinan Green" Chuntian

Natural granite, two-layer design, precision V-shaped guide rail, so that the product has extremely high stability and rigidity), this granite has stable chemical properties, is not easy to weather, can resist the erosion of acid, alkali and corrosive gas, and will not deform ,stainless;

2. Strengthen the product structure and appearance design, pay attention to the practicability and stability of product software functions, share profits and promote profits to friends from all walks of life, strive for cost-effective products, and make your choice more confident!

3. Three-axis friction precision transmission, sensitive and reliable, no backlash, and can move quickly;

4. High-quality optical system and high-resolution CCD can ensure a clear measurement picture;

5. Adjustable LED ring-shaped surface light source to realize large-angle lighting and avoid heat deformation of the workpiece;

6. The digital element measurement and data processing system is composed of a precision optical ruler and a data processor.

Imager host X1, dedicated industrial control computer X1, genuine software X2, axis grating ruler X1, linear guide X1, freeze frame fixed lens X1, high definition CCD camera X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
