3NH TS8450 Portable reflective film Colorimeter φ 4mm caliber
Measurement report, 45/0 Optical inspection structure, φ 4mm diameter, Repeatability Delta E * ab < 0.02, inter-station difference Delta E * ab < 0.15, suitable for traffic signs, markings, reflective film luminance factor, chromaticity coordinate measurement, including GB 2893, GB/T18833 standard color.
3NH
TS8450（Φ4mm）
TS8450（Φ8mm）
TS8450（Φ18mm）
product description
TS8450 is a portable desktop Spectrophotometer with a 45/0 optical structure. It adopts a 256-pixel dual-array CMOS image sensor and an imported whiteboard. It also takes into account the measurement speed and the convenience of operation. The repeatability of the instrument ΔE*ab is easily controlled within 0.02, and the inter-stage difference ΔE*ab is controlled within 0.15. The measurement is accurate and can be used for accurate analysis and transmission of colors in the laboratory. TS8450 portable desktop Spectrophotometer is suitable for measuring the luminance factor and chromaticity coordinates of traffic road signs, marking lines, and reflective films. It includes GB 2893 and GB/T 18833 standard colors, and can manually customize the tolerance of polygonal rectangles.
Applications
TS8450 Portable Desktop Spectrophotometer is equipped with a single customized Φ18/8/4mm measuring aperture, which is used for accurate color measurement and quality control in plastic electronics, paint ink, textile and garment printing and dyeing, printing, ceramics and other industries, and can be used for fluorescent sample measurement. In addition, the TS8450 portable desktop Spectrophotometer is suitable for measuring the luminance factor and chromaticity coordinates of traffic road signs, marking lines, and reflective films. It includes GB 2893 and GB/T 18833 standard colors, and can manually customize the tolerance of polygonal rectangles.
Advantages
High hardware configuration: 7 o'clock TFT pure color capacitive touch screen; Bluetooth 5.0; planar grating light splitting;
Stable measurement: 256-pixel dual-array CMOS image sensor;
Color transfer : measure the reflection and transmission spectrum of the sample, the Lab data is accurate, and can be used for color matching and color transfer;
Measurement accuracy : temperature monitoring and compensation, built-in temperature sensor, monitoring and compensation of the test environment, to ensure accurate measurement results;

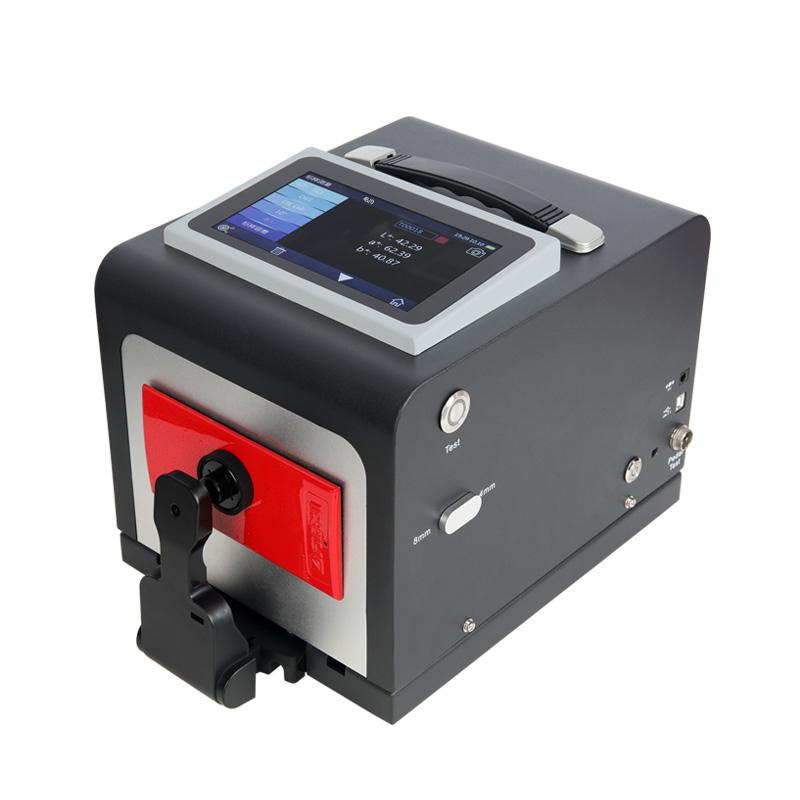

Product Structure
3NH TS8450（Φ4mm） Desktop ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | 45/0 (45 annular uniform illumination 0 ° reception); conforms to standard CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Integrating sphere size | F40mm |
| lighting source | Light spectrum LED light source, UV light source |
| Spectroscopic method | Plane grating spectroscopy |
| sensor | 256-Pixel dual array CMOS image sensor |
| Measurement Wavelength range | 400~700nm |
| wavelength spacing | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Measurement Range | 0~200% |
| Measurement caliber | F4mm / F5mm |
| Light-containing method | 45/0 |
| Color space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,s-RGB,HunterLab,βxy,DIN Lab99 Munsell(C/2) |
| Color difference formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other chromaticity indicators | WI (ASTM E313, CIE/ISO, AATCC, Hunter), YI (ASTM D1925, ASTM 313), Isochromatic Spectrum Index Mt, lightfastmess, color fastness, force, coverage, 555 hue classification |
| Viewing Angle | 2°/10° |
| Observation light source | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4,F5,F6,F7(DLF),F8,F9,F10(TPL5),F11(TL84),F12(TL83/U30) |
| display mode | Light spectrum graphs/data, sample chromatic values, color difference values/graphs, pass/fail results, Color simulation, Color bias |
| Measurement time | About 1.8s |
| Sexual repeability | Chromatic value: MAV/SCI, ΔE * ab within 0.02 (after preheating correction, the average value of 30 whiteboard measurements at intervals of 5s) |
| Inter-station difference | ΔE * from < 0.15 (MAV / SCI) |
| Measurement method | Single measurement, average measurement (2~ 99 times) |
| Positioning method | / |
| size | 370*240*260mm |
| Weight | About 7.8kg |
| Power Supply | DC 24V, 3A power adapter Power |
| Lighting source life | 5 years more than 3 million measurements |
| Display | TFT true color 7.0inch, capacitive touch screen |
| Data Interface | USB, Bluetooth ® 5.0, trigger switch interface |
| Store data | 1000 master standards and 30,000 samples |
| Operating language | Simplified Chinese, English, Traditional Chinese |
| Operating temperature range | 0~40 ℃, 0~85% RH (no condensation), altitude: less than 2000m |
| Storage temperature range | -20~50 ℃, 0~85% RH (no condensation) |
| Optional accessories | Micro printer, foot switch, swirl/spin stand |
3NH TS8450（Φ4mm） Desktop Colorimeter Packing list
Host X1, power adapter X1, data cable X1, quality management software (official website download) X1, black and white correction box X1, protective cover X1, measurement diameter X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
