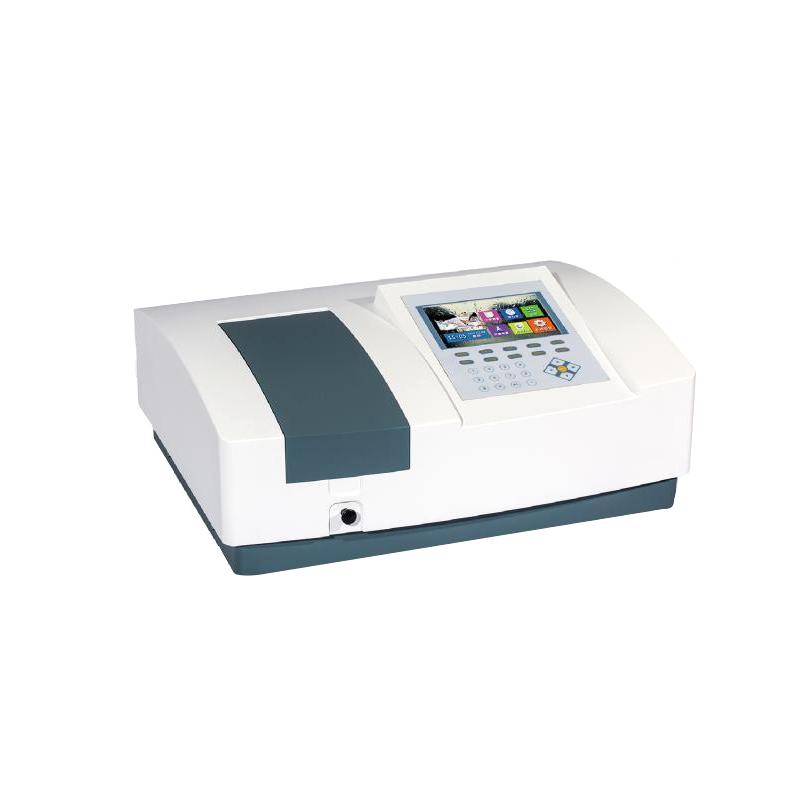

Uco T-N6000S Plus Ultraviolet-visible spectrophoto-meter bandwidth 0.5/1/2/4/5nm

Features

• 7-inch color display screen, the large screen displays various scanning curves and maps.

• Large-capacity sample chamber design, optional 8-row automatic disc rotary sample rack and 5-row ultra-wide sample rack.

• The newly optimized self-collimating CT optical path design and fully sealed optical path design ensure the measurement accuracy and stability of the instrument.

• High-precision, integrated sine mechanism, reliable guarantee for accurate wavelength.

• The automatic light source adjustment design and automatic positioning ensure that the optical system of the instrument is in good condition.

• Suspended optical system design eliminates the impact of vibration or deformation on the optical system.

Features

1. The super-large screen displays various scanning curves and maps, allowing users to complete all measurement needs without using a computer.

2. The data measured by the user can be directly exported to the U disk. The opening and editing of the data does not require any professional auxiliary software support, and Excel, TXT can be supported, Picture format (four formats can be output: .CSV, .qua, .tet, .bmp), which is convenient for users to edit the experiment report directly on the PC, which greatly saves the space of the laboratory bench in colleges and universities, and is convenient for users to use.

3. The first in the industry uses an excellent 32-bit Cortex_M3 processor with a main frequency of 120M. The instrument can store 5000 test data or 500 working curves.

4. The instrument is equipped with 8GB memory as standard, which can store test data in large quantities; the instrument is equipped with a printing interface (232), HOST USB interface, and standard USB (A) interface.

5. 2000-hour ultra-long life light source, the instrument automatically switches the light source according to the measurement needs, automatically records the use time of the light source, and the socket-type light source makes the replacement operation simple.

6.1200 lines/mm effective planar holographic grating, ultra-low stray light.

7. The large sample chamber and various accessories are convenient for various measurement needs of users.

8. It can be directly connected to a printer to output measurement maps and data.

9. Powerful PC function software.

10. The instrument can support remote upgrades, and supports users to download upgrades from the official network.

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
