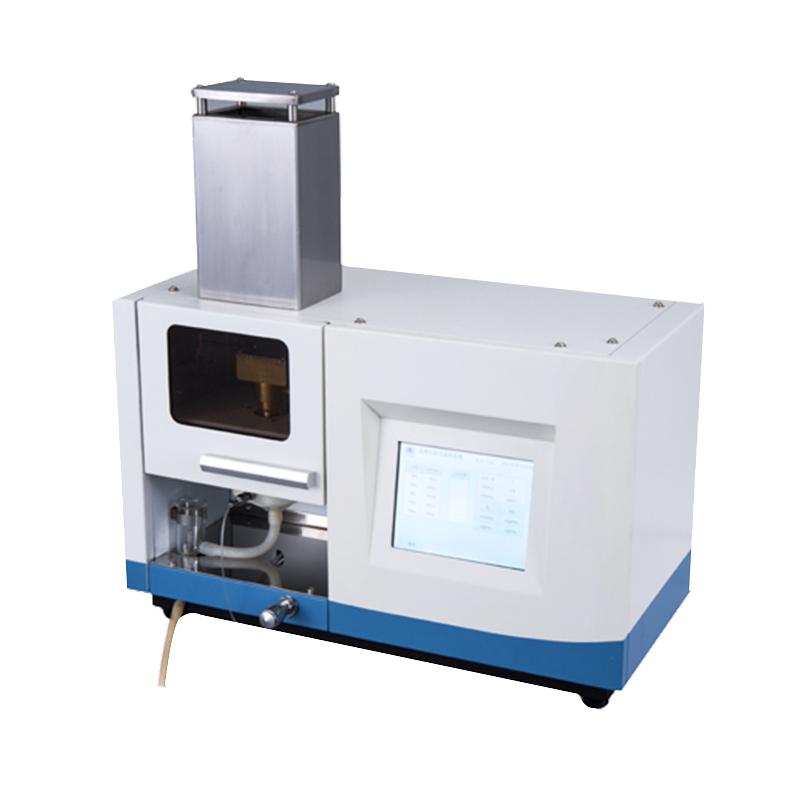

FSP6631 Flame photometer K/Na/Li

Introduction

FSP series multi-element flame Spectrophotometer adopts multi-channel management structure of concave holographic grating to realize multi-element simultaneous measurement. Compared with the system using optical filter, it has the advantages of accurate wavelength, narrow passband and high sensitivity. At the same time, the instrument can choose to use zero-order light to collect the change of flame energy as an internal standard, so that the measurement data is more stable and reliable. The instrument is equipped with a 5.6-inch true-color high-resolution wide-angle display and a touch screen with the same resolution, which greatly improves the technological content of the instrument and the humanization of operation.

Features

1. Adopt concave holographic grating spectroscopic design;

2. Simultaneous direct reading measurement of five elements can be selected in any combination, only need software selection, flexible and convenient;

3. Imported photocells are used to receive element signals, with stable and reliable performance;

4. There is an internal standard channel, which is corrected with signals that do not contain measurement elements, and is measured synchronously with the elements;

5. Internal standard correction is designed to be optional, and can be freely selected according to the situation;

6. It adopts a 5.6-inch color 640×480 display screen and matching touch screen, which is a harmonious blend of man and machine;

7. Use automatic ignition, including flame monitoring, with flameout protection and alarm to ensure safety;

8. Adopt switching power supply, light weight, small size, low heat generation, little influence of external power supply, energy saving and environmental protection.

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
