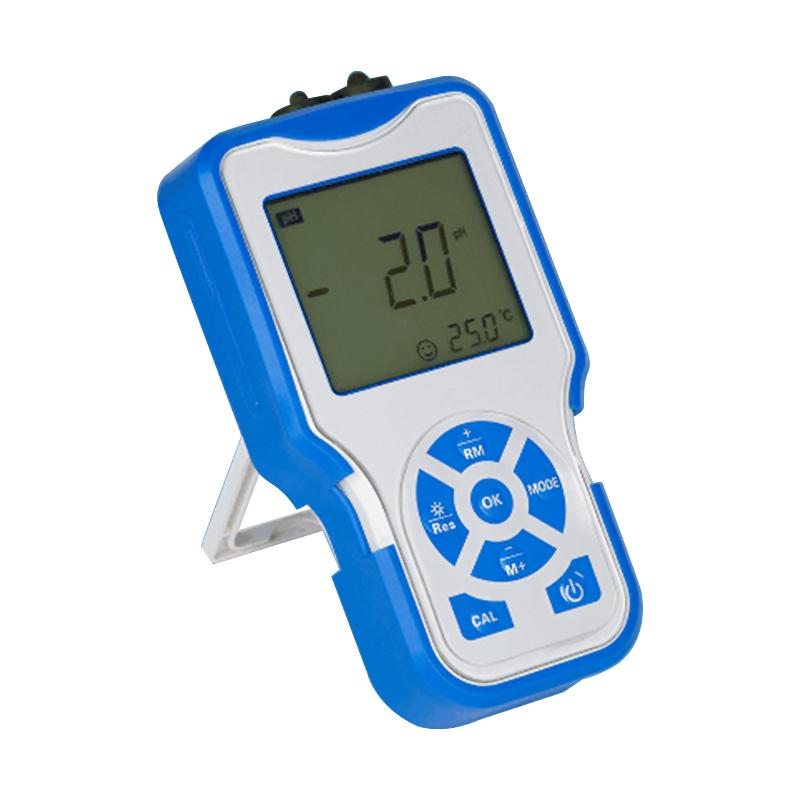

Yoke P613 Portable PH, Conductivity Detector
Acidity + Conductivity Detector two-in-one, automatic identification of 13 kinds of pH standard buffer solution, high purity water and ammonia pure water 2 kinds of pH measurement mode, auto calibration, automatic temperature compensation.
Yoke-
JINGQI WD8301 aniline Tester
$ 481.00 -
LEICI potassium ion electrode calibrated solution, suitable for potassium ion composite electrode
$ 106.00 -
HANNA HI981420 Water Quality Tester
$ 654.00 -
SMART SENSOR AR8401 split pH meter /ORP Detector
$ 164.00 -
LEICI 780800N02 residual chlorine/total chlorine kit for DGB-402A/402F/403F/424
$ 117.00
Features
1. Large-screen LCD display with controllable white backlight.
2. Humanized design: bracket design, convenient for customers to use. Anti-skid glove design, convenient for customers to operate.
3. Dual-parameter instrument, equipped with pH electrode and conductivity electrode, the instrument automatically recognizes the electrode.
4. Built-in microprocessor chip, with intelligent functions such as automatic calibration, automatic temperature compensation, data storage, function setting, self-diagnosis information, automatic shutdown and low Voltage display.
5. Automatically recognize 13 pH standard buffer solutions, there are three series of standard buffer solutions to choose from: European and American series, NIST series and Chinese series.
6. The pH measurement mode of high-purity water and the pH measurement mode of pure water with ammonia can be set.
7. Automatically identify 8 kinds of conductivity standard solutions, and there are two series of standard solutions to choose from: European and American series and Chinese series.
8. Using excellent conductivity measurement technology, using a conductivity electrode with a constant K=1 requires only one point of calibration to meet the measurement accuracy requirements of 0.5μS/cm ~ 200 mS/cm.
9. Switchable conductivity, TDS, salinity and resistivity. TDS and salinity are calculated using polynomials to ensure the conversion accuracy of the full range.
10. Conductivity measurement mode has high-purity water non-linear temperature compensation function.
11. The instrument complies with IP57 waterproof level, equipped with calibration solution and suitcase.
Yoke P613 P6 series acidity meter/conductivity meterSpecifications
| LIST | VALUE |
|---|---|
| mV range | -1999mV ~ 1999mV |
| pH Measurement range | (-2.00 ~ 19.99)pH |
| TDS range | 0~100g/L |
| Measurement parameters | pH, mV, Conductivity Detector, Resistivity, Salinity, TDS |
| PH resolution | 0.1/0.01pH |
| pH measurement Accuracy | Electric meter: ± 0.01pH, matching: ± 0.02pH |
| PH input current | ≤2×10(-12) A |
| PH input impedance | ≥ 1 × 10 (12) Oh |
| PH stability | ±0.01 pH/3h |
| Temperature compensation range | (0~100) ℃ (automatic/manual) |
| MV resolution | 1mV |
| mVAccuracy | ±0.1%FS |
| Conductivity Detector Measurement range | (0.00~19.99)μS/cm、(20.0~199.9)μS/cm、(200~1999)μS/cm、 (2.00~19.99)mS/cm、(20.0~199.9)mS/cm |
| Salinity range | 0~100ppt |
| Resistivity Measurement range | 0 ~ 100MZ · cm |
| Conductivity Detector resolution | 0.01/0.1/1μS/cm 0.01/0.1mS/cm |
| Conductivity Detector measurement Accuracy | Electric meter: ± 1.0% FS, matching: ± 1.5% FS |
| Temperature compensation range | (0~100) ℃ (automatic/manual) |
| Electrode constant | 0.1 / 1 / 10 cm-1 |
| reference temperature | reference temperature |
| data storage | 150 groups |
| Save content | Numbers, measurements, Measurement Units and temperature values |
| Power | 2 AA batteries (1.5V × 2) |
| Dimensions | 165*90*32mm |
| Weight | 310g |
| Environment temperature | 5~ 35 ℃ (0.01 grade) |
| Environment humidity | ≤85% |
| Protection class | IP57 |
| Mass and safety certification | ISO9001:2000,CE和CMC |
Yoke P613 P6 series acidity meter/conductivity meter Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
