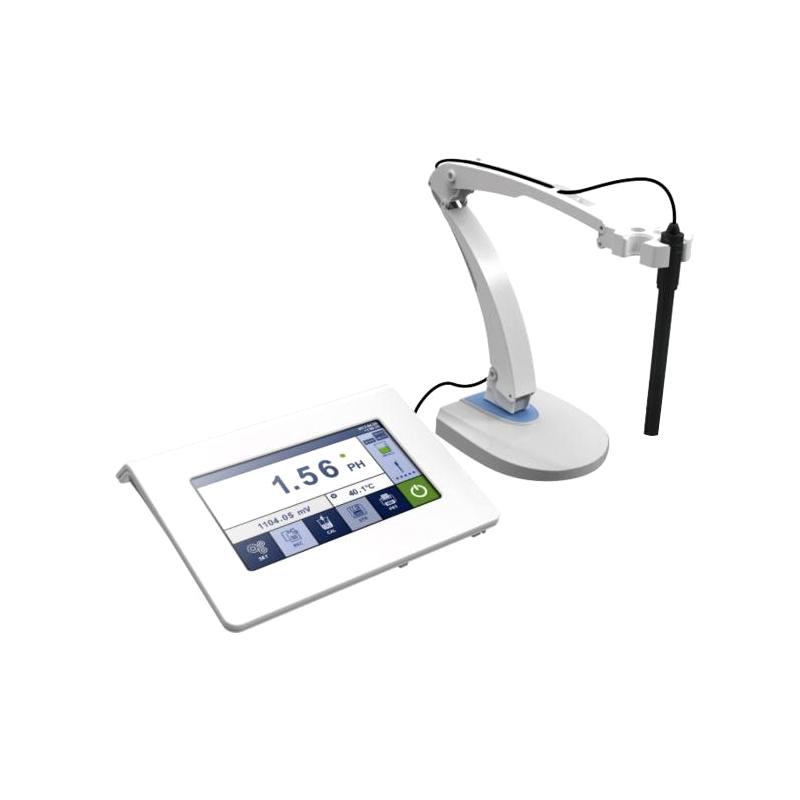

Yoke P10 touch screen desktop acidity meter -2.00~20.00 pH
Instrument level 0.01, automatic/manual temperature compensation, automatic identification of 15 kinds of pH standard buffer solutions, 7. Mobile phone download program can view instrument data in real time.
Yoke-
HANNA HI7009L pH standard solution calibrated value: 9.18pH (25 ℃)
$ 116.00 -
E-PHScan-ST-100K pH electrode
$ 92.00 -
FANGZHOU FZ-843 PH electrode with temperature probe, high temperature strong alkali solution test
$ 285.00 -
AOLILONG PHB-10 pen pH meter laboratory test site, water quality assurance, industrial and mining production process and other ph value monitoring
$ 110.00 -
FANGZHOU FZ-551 Soil pH electrode for soft or hard sample testing
$ 234.00
Features
1.7-inch color high-resolution (1024*600) capacitive touch screen, UI design, navigation operation experience, high sensitivity, complete parameter display, intuitive, easy to use and simple. The host shell is made of PEEK material, which is resistant to high temperature, corrosion and aging.
2. Built-in ARM32-bit microprocessor chip, using digital filtering and slip technology to intelligently improve the response speed of the instrument and the accuracy of measurement data. The circuit board adopts SMT patch technology, which improves the reliability of product processing. function.
3. Meet the GLP requirements of international standards, with intelligent functions such as automatic calibration, automatic temperature compensation, data storage, USB output, clock display, wireless printing, function setting and self-diagnosis information.
4. The instrument has a built-in Chinese and English bilingual operating system, humanized operation design, adjustable brightness of the instrument, and the temperature unit can be freely switched between ℃ and ℉.
5. The built-in large-capacity storage can store 2000 sets of measurement data. The data can be stored and transferred through the U disk. The stored data can be opened by the general office software EXELL, which is very convenient for customers to edit.
6. The instrument is equipped with a Bluetooth module, which supports wireless Bluetooth printing, which is convenient for users to operate.
7. Based on the Wechat applet, you can view the instrument data in real time even if you download the program on your mobile phone.
8. Scalability: Different pH electrodes can be easily and quickly replaced (matching electrodes can be selected for measuring different samples) to measure pH.
9. Automatically identify 15 pH standard buffer solutions, there are three series of standard buffer solutions to choose from: European and American series, NIST series and Chinese series.
10. It can intelligently judge the electrode status to ensure accurate use by customers.
11. Comply with IP54 dust-proof and splash-proof design.
Yoke P10 Touch screen desktop acidity meterSpecifications
| LIST | VALUE |
|---|---|
| Display | 7-Inch color high-resolution (1024 * 600) capacitive touch screen |
| pH Measurement range | -2.00~20.00pH |
| pH resolution | 0.1/0.01pH |
| pH relative Accuracy | ±0.02pH |
| Input current | ≤2×10-12 A |
| input impedance | ≥ 1 × 1012 Oh |
| mV range | -1999~1999 mV |
| mV resolution | 1mV |
| mV相对Accuracy | ±0.1%FS |
| Temperature Measurement range | 0-100℃ |
| temperature resolution | 0.1℃ |
| temperature relative Accuracy | ±0.5℃ |
| temperature compensation | Manual/automatic (0~100) ℃ |
| Calibrated | Automatic 3 point calibrating |
| GLP standard | meet |
| buffer | Europe/America/NIST. |
| data storage | 2000 groups |
| Communication interface | USB 2.0, USB micro interface, Bluetooth wireless (optional) |
| Operating Conditions | Temperature: 5-40 degrees, Humidity: 5-85% |
| Power | 12V1A (110-220, 50Hz-60Hz adapter) |
| Product size | 160 × 190 × 70mm |
| Mass and safety certification | ISO9001:2000,CE和CMC |
| Weight | 880g |
Yoke P10 Touch screen desktop acidity meter Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
