Yoke P912 button desktop conductivity meter 0.5 level
Conductivity Detector rate, 0.5 level, automatic/manual temperature compensation, automatic identification of 8 kinds of Conductivity Detector standard solutions, display parameters Conductivity Detector rate, resistivity, TDS, salinity, temperature.
Yoke-
FANGZHOU DDS-609 high-precision module Conductivity Meter
$ 863.00 -
HANNA HI2003 Benchtop Conductivity Meter/Total Solid solubility/salinity/Temperature Meter
$ 1081.00 -
FANGZHOU FZ-705 Conductivity Detector electrode (platinum black) > 100mS/cm
$ 99.00 -
LEICI DJS-0.1VTG Conductivity Detector electrode 0.05~ 200μS/cm
$ 189.00 -
FANGZHOU FZ-702 Conductivity Detector electrode 0.2-200 µS/cm
$ 178.00
Features
1. It adopts 6.5-inch LED screen with complete and intuitive parameter display and user-friendly interface design, which is convenient for users to operate and use.
2. Omron long-life light touch buttons are used, which are convenient and durable, and can reach more than 100,000 times.
3. Meet the GLP requirements of international standards, with intelligent functions such as automatic calibration, automatic temperature compensation, data storage, USB output, clock display, wireless printing, function setting and self-diagnosis information.
4. The built-in large-capacity storage can store 2000 sets of measurement data, the data can be stored and transferred through the U disk, and the stored data can be opened by the general office software EXELL, which is very convenient for customers to edit.
5. Automatically identify 8 kinds of conductivity standard solutions, and there are two series of standard solutions to choose from: European and American series and Chinese series.
6. Using excellent conductivity measurement technology, using a conductivity electrode with a constant K=1 requires only one point of calibration to meet the measurement accuracy requirements of 0.5μS/cm ~ 200 mS/cm.
7. Switchable conductivity, TDS, salinity and resistivity. TDS and salinity are calculated using polynomials to ensure accurate conversion of the full range
8. The instrument can be equipped with a Bluetooth module, which supports wireless Bluetooth printing, which is convenient for users to operate.
9. Comply with IP54 dust-proof and splash-proof design.

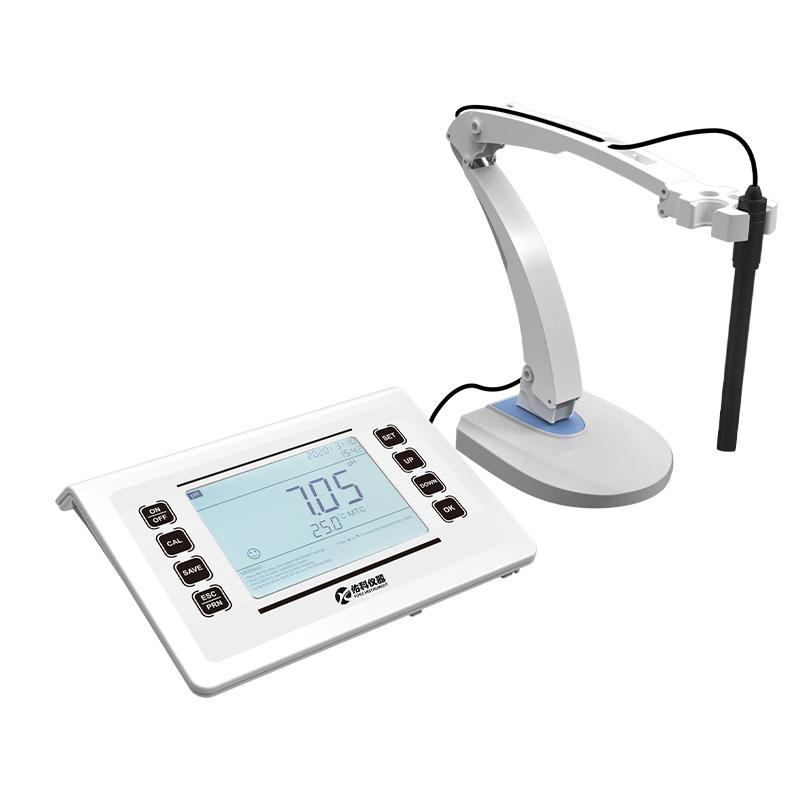

Yoke P912 Conductivity DetectorSpecifications
| LIST | VALUE |
|---|---|
| Measurement parameters | Conductivity Detector, resistivity, TDS, salinity, temperature |
| Instrument level | Level 0.5 |
| Measuring range | 0~200mS/cm |
| Measurement error | Electric meter: ± 0.5% FS, matching: ± 0.8% FS |
| resolution | 0.01/0.1/1μS/cm;0.01/0.1mS/cm |
| Temperature compensation range | 0~100℃ |
| Electrode constant specification | 0.1 / 1 / 10 cm-1 |
| data storage | 2000 groups |
| Power | 12V1A |
| Data Interface | USB, USB micro interface, wireless Bluetooth (optional) |
| TDS range | 0.000mg/L~1000g/L |
| salinity | (0 ~ 100)ppt |
| Temperature display resolution | 0.1℃ |
| Temperature Measurement range | 0~100℃ |
| temperature relative Accuracy | ±0.5℃ |
| reference temperature | 25℃、20℃、18℃ |
| Product size | 215×175×35mm |
| Weight | 570g |
| Store content | Number, value, unit, temperature, time |
Yoke P912 Conductivity Detector Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
