CHINA formed Applicator rod ASP 400μm film thickness Stainless steel Coating Applicator Metering rod length 250mm
400μm film thickness, 250mm application width, formed process, groove is not blocked, easy to clean, stainless steel material.
Aosipai
ASP400-L250
ASP400-L400
-
RK K202.10.0 No. Line rod K202 coater special WFT 4μm
$ 190.00 -
RDS 75 #1/4 "wire-wound Applicator rod film thickness 171.5μm Wire diameter 1.91mm
$ 156.00 -
UK RK KHC.10.8 coating rod WFT 100μm blue rubber head No. 8 rod
$ 153.00 -
Japan OSP-06/60 Applicator rod WFT 6μm length 60mm
$ 116.00 -
Coating Bar, LABOratory Manual Coating Wire Bar 12μm Measurement Scraper Bar XB Applicator Bar
$ 110.00

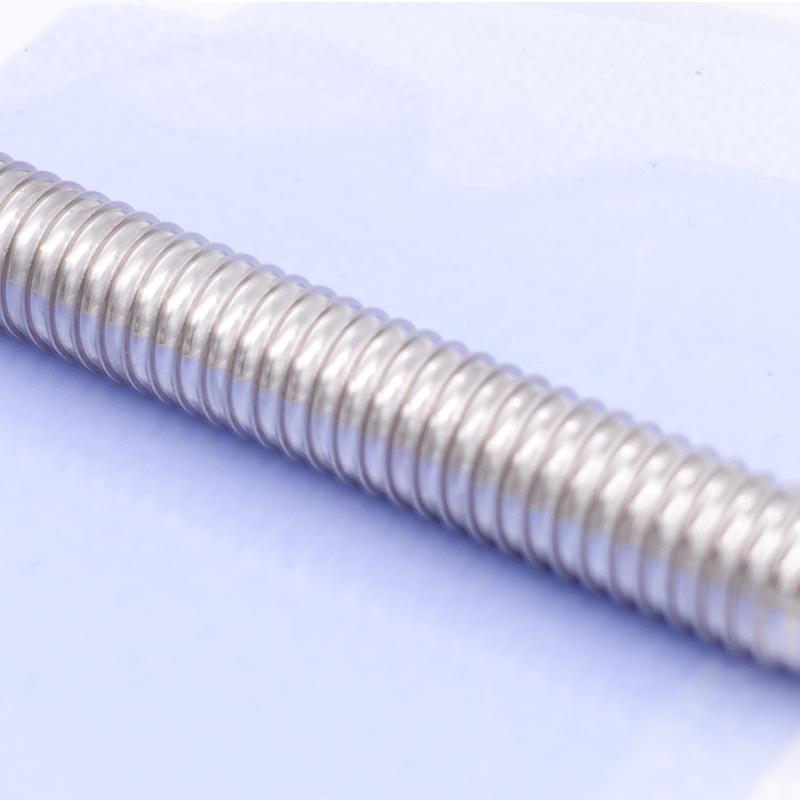

ASP wire rod coater is a domestic (CN) high-end coater, using extrusion technology, wear-resistant stainless steel material, easy to clean and good corrosion resistance. The Total length of the rod is 250mm, and the effective coating width is 250mm. It can be equipped with a handle to make scraping easier.
This series of wire rod applicators provide film thickness rods ranging from 180 to 600 microns, which are suitable for the experimental needs of coatings, inks, glues, resins, new materials, etc. that need to prepare thicker films.
Models List of ASP Wire Bar Coater
| model | wet film thickness | Effective coating width | Coating process |
| ASP180-L250 | 180μm | 250 mm | Squeeze |
| ASP200-L 250 | 200μm | ||
| ASP230-L 250 | 230μm | ||
| ASP250-L 250 | 250μm | ||
| ASP275-L 250 | 275μm | ||
| ASP300-L 250 | 300μm | ||
| ASP330-L 250 | 330μm | ||
| ASP350-L 250 | 350μm | ||
| ASP400-L 250 | 400μm | ||
| ASP450-L 250 | 450μm | ||
| ASP500-L 250 | 500μm | ||
| ASP550-L 250 | 550μm | ||
| ASP600-L 250 | 600μm |
Aosipai ASP400-L250 Mayer RodSpecifications
| LIST | VALUE |
|---|---|
| Production process | Formed |
| WFT | 400µm |
| diameter | 10mm |
| Total length | 250mm |
| Application width | 250mm |
| material | Stainless steel material |
Aosipai ASP400-L250 Mayer Rod Packing list
Bar X1, Transparent Encasement Hose X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
