        Home> Mayer Rod> RDS> RDS 145G# 3/8" Applicator rod 3/8 "
        RDS 145G# 3/8" Applicator rod 3/8 "

        RDS 145G #3/8 "Gap Applicator rod Adhesive coating bar 331.5μm

        Interstitial wire-wound, Film thickness 331.5 μm, diameter 9.52 mm, suitable for high viscosity fluid scraping.

        Brand
        SKU: NB039485
        United States RDS
        Stock
        Loading…
        Price
        $ 173.00
        Promotion
        Service
          Service
          The delivery and service By NBchao.Com
          Get Quote
          VS
          RDSLOGO

          RDS shopSE

          Information
          Datasheet RFQ Contract Video Catalog Manual
          What else did others buy
          Genuinegoods

          • RDS 145G# 3/8" Applicator rod 3/8 "Overview

          • Specifications
          • Comments
          • FAQs
          145G# 3/8"
          Applicator rod 3/8 "
          • RDS 145G #3/8 "Gap Applicator rod Adhesive coating bar 331.5μm
          • RDS 145G #3/8 "Gap Applicator rod Adhesive coating bar 331.5μm Figure 1
          • RDS 145G #3/8 "Gap Applicator rod Adhesive coating bar 331.5μm Figure 2
          Interstitial wire-wound, Film thickness 331.5 μm, diameter 9.52 mm, suitable for high viscosity fluid scraping.

          Preparation principle

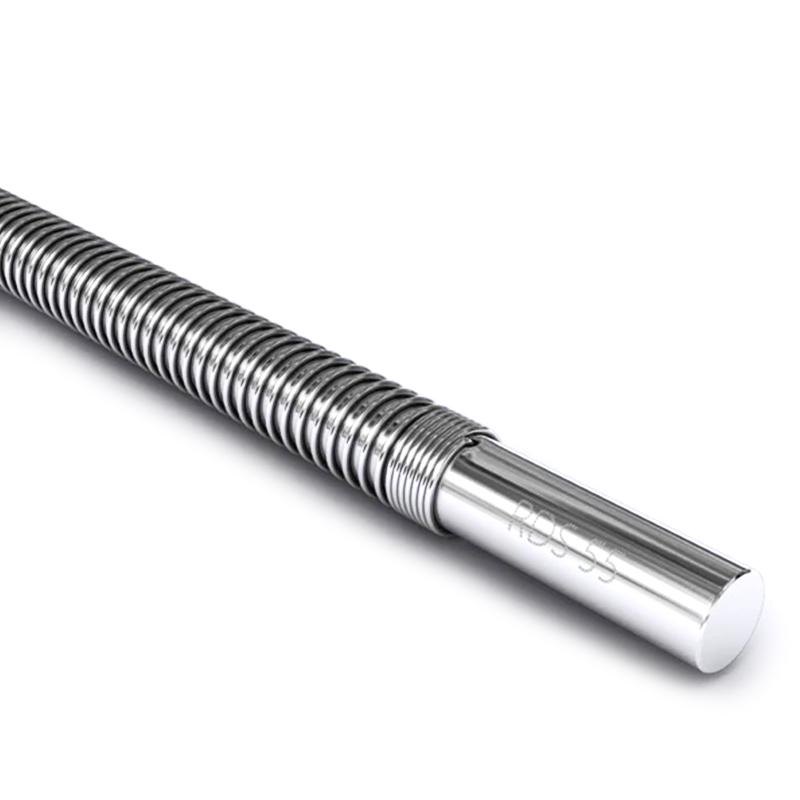

          Following the Mayer Rod film coating principle, for higher viscosity fluids, the gap film coating rod reduces clogging and eliminates scratches. By winding smaller wires at pitches (see photo), the cavity created is wide and shallow, allowing thick coatings to flow better. Smaller wires create smaller interruptions in the coating flow, allowing for more complete wetting of the coating.

          RDS 145G# 3/8" Gap Type Coating Rod 3/8" Details Figure 1

          VS

          RDS 145G# 3/8" Applicator rod 3/8 "Specifications

          LIST VALUE
          Production process Interstitial wire-wound
          WFT 331.5µm
          diameter 9.52mm
          Total length 400mm
          Application width 300mm
          material stainless steel

          RDS 145G# 3/8" Applicator rod 3/8 " Packing list

          Stainless Steel Rod X1 Transparent Encasement Hose X1

          [Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

          FAQ

          [Q]
          What is the difference between a gap Applicator rod and a wire-wound Applicator rod?
          [A]
          Applicator rods are mainly for high viscosity fluids. The standard wire-wound drawdown bar is suitable for wet-films below 1000cps, while the gap Applicator rod is suitable for fluids with high viscosity from 1000 to 3000cps
          [Q]
          Can this gap bar scrape high viscosity fluid samples?
          [A]
          Yes, unlike standard Myaer rods, gap rods are suitable for scraping fluids in the viscosity range of 1000 to 3000cps, but not beyond 3000cps. These numbers are not absolute, and Miscellaneous factors must also be considered.
          [Q]
          Does this wire-wound gap open bar support customization?
          [A]
          Yes, the standard length is 40cm. If you need to customize Miscellaneous specifications, please contact customer service.
