RDS 185G #3/8 "Gap Applicator rod Thick Film Spreader 422.9μm

Interstitial wire-wound, Film thickness 422.9μm, diameter 9.52mm, suitable for high viscosity fluid scraping.

Brand

SKU: NB039491

RDS

Model

185G# 3/8"

Price

$ 174.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

RDS shopSE

Information

Datasheet RFQ Contract Video Catalog Manual

What else did others buy

Genuinegoods

RDS 185G# 3/8" Applicator rod 3/8 "Overview
Specifications
Comments
FAQs

185G# 3/8"

Applicator rod 3/8 "

Interstitial wire-wound, Film thickness 422.9μm, diameter 9.52mm, suitable for high viscosity fluid scraping.

Preparation principle

Following the Mayer Rod film coating principle, for higher viscosity fluids, the gap film coating rod reduces clogging and eliminates scratches. By winding smaller wires at pitches (see photo), the cavity created is wide and shallow, allowing thick coatings to flow better. Smaller wires create smaller interruptions in the coating flow, allowing for more complete wetting of the coating.

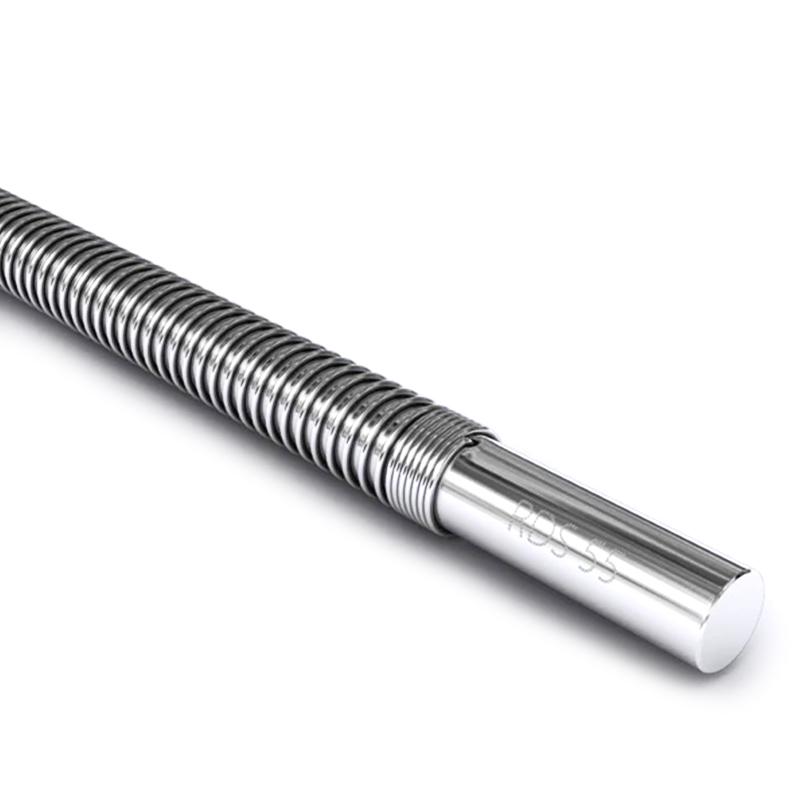

RDS 185G# 3/8" Gap Type Coating Rod 3/8" Details Figure 1

RDS 185G# 3/8" Applicator rod 3/8 "Specifications

LIST	VALUE
Production process	Interstitial wire-wound
WFT	422.9µm
diameter	9.52mm
Total length	400mm
Application width	300mm
material	stainless steel

RDS 185G# 3/8" Applicator rod 3/8 " Packing list

Stainless Steel Rod X1 Transparent Encasement Hose X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

I want to prepare thick coatings for high viscosity fluids. Applicator rod is suitable?

[A]

Recommended RDS 185G interstitial Applicator rod, which adopts interstitial wire-wound design, thin wire diameter and large spacing, can reduce clogging and scratches, especially suitable for thick Spreaders of high viscosity fluids, wet film thickness up to 422.9μm.

[Q]

What is the difference between a gap Applicator rod and a wire-wound Applicator rod?

[A]

Applicator rods are mainly for high viscosity fluids. The standard wire-wound drawdown bar is suitable for wet-films below 1000cps, while the gap Applicator rod is suitable for fluids with high viscosity from 1000 to 3000cps

[Q]

Can this gap bar scrape high viscosity fluid samples?

[A]

Yes, unlike standard Myaer rods, gap rods are suitable for scraping fluids in the viscosity range of 1000 to 3000cps, but not beyond 3000cps. These numbers are not absolute, and Miscellaneous factors must also be considered.

[Q]

Does this wire-wound gap open bar support customization?

[A]

Yes, the standard length is 40cm. If you need to customize Miscellaneous specifications, please contact customer service.
