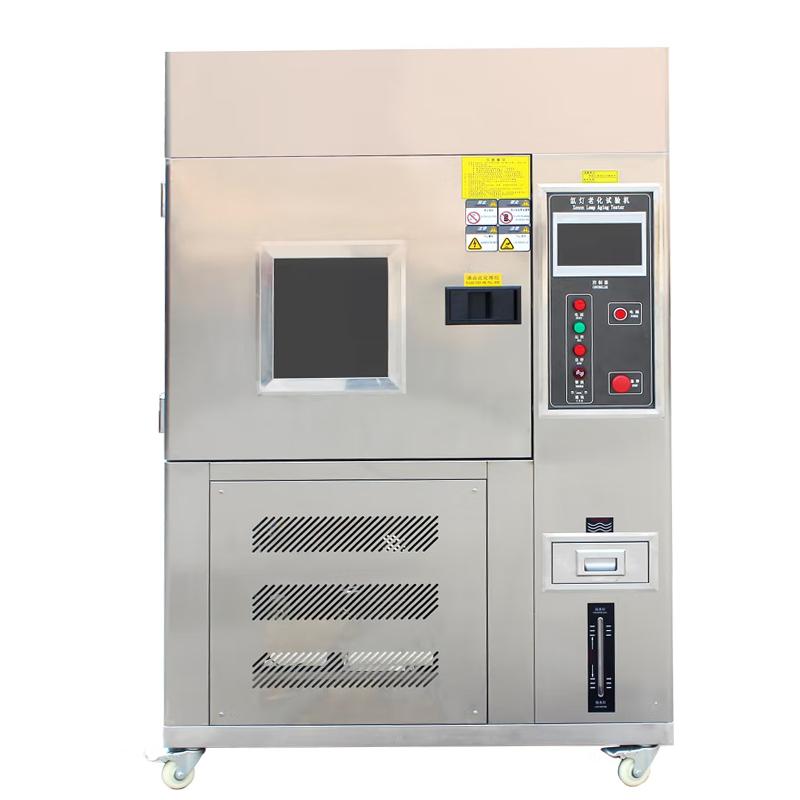

AISRY NBC-XD-150L xenon arc aging Tester, Light spectrum Xenon-arc lamp simulation environment test

Product Introduction

1. The use of xenon arc lamps that can simulate the full sunlight spectrum to reproduce the destructive light waves existing in different environments can provide corresponding environmental simulation and accelerated tests for scientific research, product development and quality control.

2. The SN type xenon arc lamp test chamber can be used for the selection of new materials, changing existing materials or evaluating the change of durability after the change of material composition, which can well simulate the changes caused by the exposure of materials to sunlight under different environmental conditions.

3. Aging test is carried out by exposing material specimens to light and heat radiation of xenon arc lamps. To evaluate the light and weather resistance of some materials under the action of high temperature light source. It is mainly used in automobiles, coatings, rubber, plastics, pigments, adhesives, fabrics, etc.

3. Equipment use conditions

1. Ambient temperature: 5°C~+35°C (average temperature within 24 hours≤35°C)

2. Ambient humidity: ≤85% R.H

3. The operating environment needs to be below 35 degrees at room temperature and well ventilated, and the machine should be placed 80 cm on the front, back, left and right, and nothing should be placed;

Four: Refrigeration system

(1) Refrigeration system and compressor

1. Refrigeration compressor: Sanyo.

2. Cooling method: air cooling

3. Refrigerant: environmentally friendly refrigerant R404A

4. Main refrigeration accessories: Japanese "Lugong" solenoid valve; Italian castor dryer filter, etc. Air-cooled condensers and fin multi-stage evaporators of well-known brands at home and abroad with excellent quality.

(2) Advantages of refrigeration system

1. Improved lubrication performance and lower piston temperature bring greater reliability;

2. Streamlined fuselage improves airflow management; reduce pressure and improve refrigeration efficiency;

3. The top unloading valve provides continuous minimum discharge pipe pulse;

4. SENTRONIC provides reliable lubrication protection system;

5. Use environmentally friendly refrigerants R23 and R404A (excluding CFCs) that are not prohibited by the Montreal Convention or the London Amendment

6. CONSTRUCTIVE MAIN FEATURES Cabinet structure and main features

5. Introduction to the overall structure

1. The entire box shell is made of exquisite paint or stainless steel

9 optional); The wall material of the test chamber is SUS304 high-grade anti-corrosion mirror stainless steel plate, with reasonable structural design, excellent manufacturing technology, and beautiful interior and appearance. According to the temperature requirements of the laboratory, the thickness of the insulation layer is designed to be: 100mm. (The top is the light source box, which adopts advanced design and is open for easy lamp maintenance and repair.) ）

2. The insulation material between the inner box and the outer box is high-quality ultra-fine glass fiber insulation cotton, which plays a good role in cold or hot insulation.

3. Imported sealing materials and unique silicone sealing structure are used between the door and the door frame, and the sealing performance is good.

4. Test chamber door structure: single door. Door locks, hinges and other hardware accessories are "KUNLONG" original parts.

5. The air duct in the box adopts a dual circulation system, which is composed of a long-axis axial flow fan, stainless steel multi-wing centrifugal air wheel and circulating air duct, and the temperature in the upper and lower inlet air boxes is uniform, which improves the air flow, heating and cooling capabilities, and greatly improves the temperature and humidity uniformity of the test chamber.

6. Blackboard temperature: bimetal blackboard thermometer;

7. Humidification method: external isolated all-stainless steel shallow surface evaporative humidifier;

8. Heating system: fully independent system, nickel-chromium alloy electric heating heater;

9. Water supply system: Humidification water supply is automatically controlled by water pump;

10. Temperature and humidity circulation system: adopt high-temperature resistant low-noise long-shaft fan motor and stainless steel multi-wing impeller with high and low temperature resistance to achieve intensity convection vertical diffusion cycle;

11. 1 sprinkler is installed on the top of the studio;

12. Control of irradiance: the required irradiance can be obtained by automatically controlling and adjusting the power through the radiometer (more accurate than the manual measurement method, because the lamp test period will have light decay and cannot guarantee a more accurate irradiance);

13. The panel directly displays the current lamp irradiance and cumulative radiation intensity;

Control system

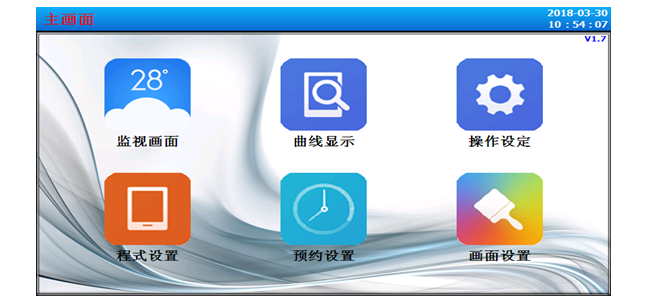

The self-developed intelligent irradiation measurement and adjustment system includes a 16-bit true color touch screen control display interface and an irradiation measurement sensing system and special optical fiber produced by Beijing Normal University Optoelectronics, and the display interface is as follows:

6. Control the display interface

1. Automatically display the current irradiation intensity

2. Intelligently adjust the current irradiation intensity to the set value

3. Dynamically display rainfall, irradiation, turntable and other related functions

4. Programmable control, 100 groups of programming, 99 cycles

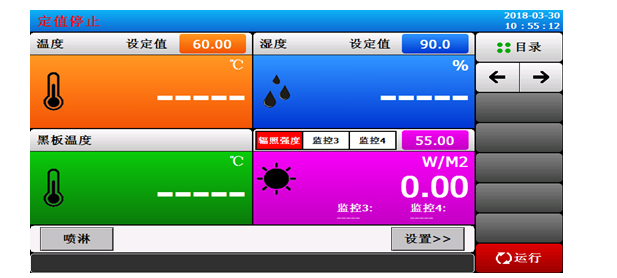

    (Running interface)

5. Temperature measurement range (-90.00°C--200.00°C, error ±0.2°C);

6. Humidity measurement range (1.0--100%RH, error < 1%RH);

7. Communication interface (RS232C/USB optional);

Program editing (100 programs can be edited, 100 paragraphs can be shared);

8. Temperature sensor: PT100 platinum resistance temperature and humidity Tester;

9. Control mode: thermal balance temperature regulation mode;

10. Electrical control main parts: "Schneider" and "Omron" components;

7. Safety protection device

1. Fan overheating protection

2. The overall equipment is under-phase/reversed-phase protection

3. Overload protection of refrigeration system

4. Overpressure protection of the refrigeration system

5. Over-temperature protection

6. Water pump overheating and overcurrent protection

7. There is also leakage

8. Water shortage indication

9. Automatic shutdown after fault alarm

8. Power supply and whole machine power

1. Rated power: 9KW

2. Power supply: AC380V±10%, 50HZ

3. Noise of the whole machine: ≤70db

4. Weight: 680kg

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
