3NH NH310 powder Colorimeter 8mm/4mm dual aperture, with multi-functional test components
Equipped with multi-functional test components, you can test powder, liquid color difference, 8mm/4mm dual aperture; camera viewing and positioning function, there are D65 and D50A two Light sources to choose from; automatic whiteboard verification; extended diameter measurement concave part; configuration rechargeable high-capacity lithium-ion battery.
3NH

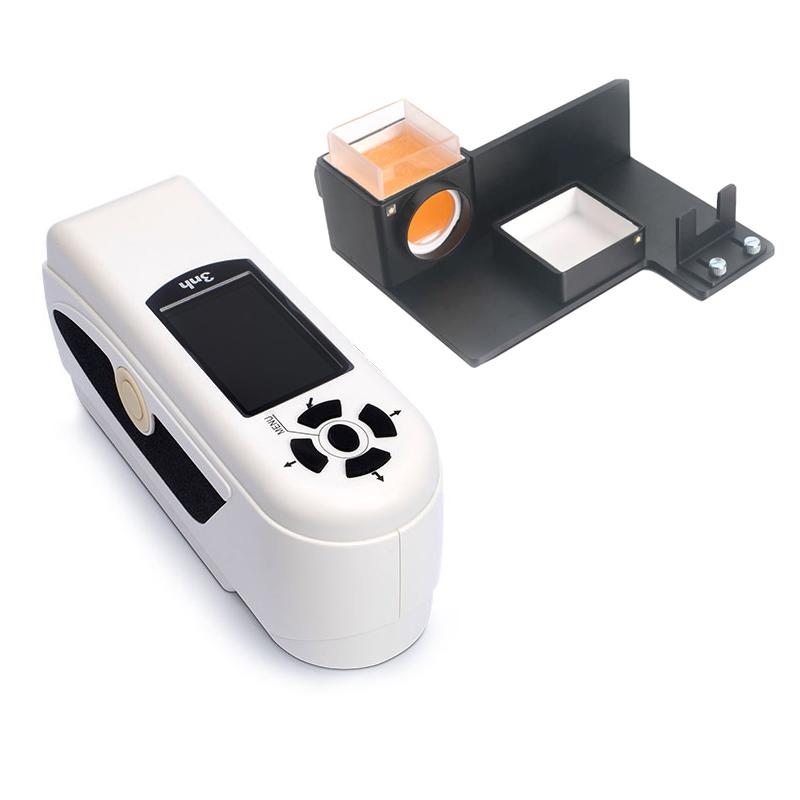

NH310 + Multifunctional Test Component
-
IWAVE ColorCat SE Color Cat Colorimeter
$ 179.00 -
LS175 color difference meter Handheld large diameter color difference meter 45 °/0 ° Optical inspection structure 20mm measurement diameter
$ 472.00 -
IWAVE WF30-8mm Colorimeter CHINA universal color difference instrument with USB communication interface Chinese and English system 2.8TFT true color screen
$ 1003.00 -
IWAVE ColorCat Colorometer
$ 333.00 -
CHNSPEC ColorMeter MAX color difference treasure, enhanced version
$ 381.00
3nh/3nh Colorimeter NH310 is a portable Colorimeter, which is designed and developed by combining the advantages of many traditional imported products. It has a double aperture of 8mm/4mm and can switch between different measurement apertures to apply to different color difference measurement occasions. . The Colorimeter NH310 is operated by buttons, and the measurement data is displayed on the LCD. It uses high-quality LED blue light excitation light source devices, and there are two light sources, D65 and D50A, which have good accuracy in color measurement. and reliability.
Patent guarantee of NH310 Colorimeter
Patented technology: camera positioning
Patented technology: automatic whiteboard verification at startup
Patented technology: extended caliber to measure concave parts
Dual measuring aperture: switchable between 8 mm and 4 mm
Equipped with rechargeable high-capacity lithium-ion battery
Operation interface
Pictures
Application
Applications of NH310 Colorimeter: plastics, coatings, inks, printing, automobiles, textiles, food, pharmaceuticals and other industries.
Trusted Authentication Certificate
Certificate of South CHINA National Metrology and Testing Center/Guangdong Provincial Institute of Metrology;
CHINA Institute of Metrology Appraisal Certificate;
CE certification

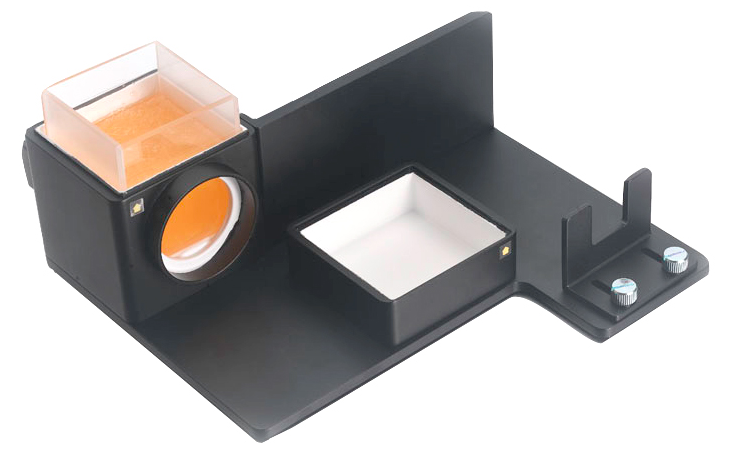

Multifunctional Test Kit
The multi-functional test component is equipped with a Colorimeter, which can measure the color difference of liquids, sauces (such as ketchup, paint), powders (such as coffee, powder coatings), etc.

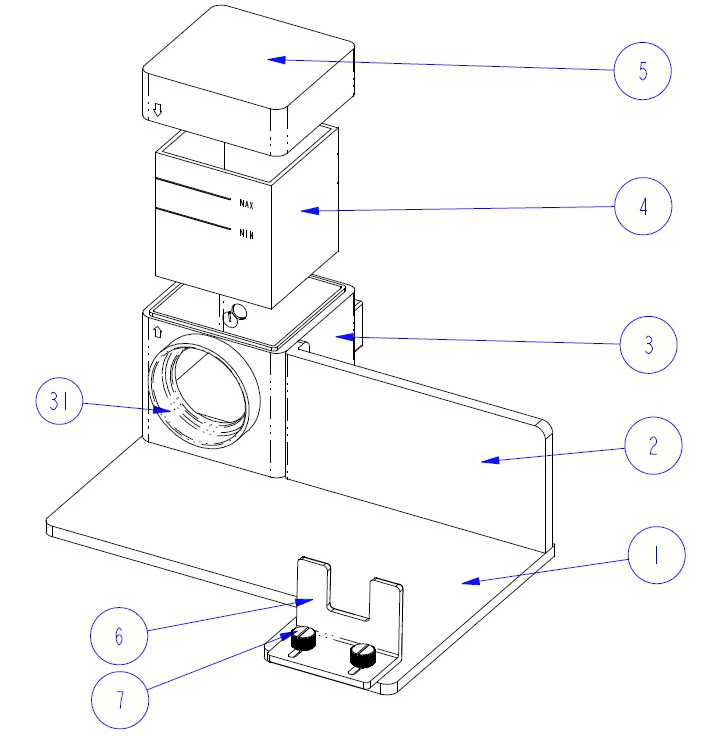

Multifunctional test component structure diagram
(1) Base (2) Base baffle (3) Square integrator (31) Measuring port of square integrator (4) Cuvette (5) Cover plate (6) Push plate (7) Screw.
3NH NH310 + Multifunctional Test Component ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Lighting method | 8°/d |
| lighting source | LED light source |
| sensor | Silicon photodiode |
| Measurement caliber | F8mm / F4mm |
| Color space | CIE LAB, XYZ, LCh, CIE RGBCIE LUV |
| Color difference formula | ΔE*ab,ΔE(h),ΔE*uv，ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00 |
| Other chromaticity indicators | Yellowness, whiteness, lightfastmess, color fastness |
| Viewing Angle | CIE 10 ° |
| Measurement light source | D65,A,D50 |
| display mode | Chromatic value, color difference value/graph, pass/fail result, Color bias |
| Measurement time | 1.5s |
| Sexual repeability | Φ8mm / ΔE * from 0.06<--sep--0/> |
| Inter-station difference | ΔE * from < 0.4 |
| Dimensions | 205*70*100mm |
| Weight | About 400g (including battery) |
| Battery life | Rechargeable Li-Ion Battery 3.7V @3200mAh |
| Lighting source life | 5 years more than 1.60 million measurements |
| Display | TFT True Color 2.8inch @(16:9) |
| Data Interface | USB |
| Positioning method | Light spot positioning, camera positioning |
| Data storage | 100 master standards, 20,000 samples |
| Operating conditions | 0~40℃（32~104°F） |
| Storage environment | -20~50℃ |
| PC software | CQCS3 high-end quality management software |
| Optional accessories | Micro printer, powder test box, multifunctional test kit, Φ8 extended measurement caliber |
3NH NH310 + Multifunctional Test Component Colorimeter Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
