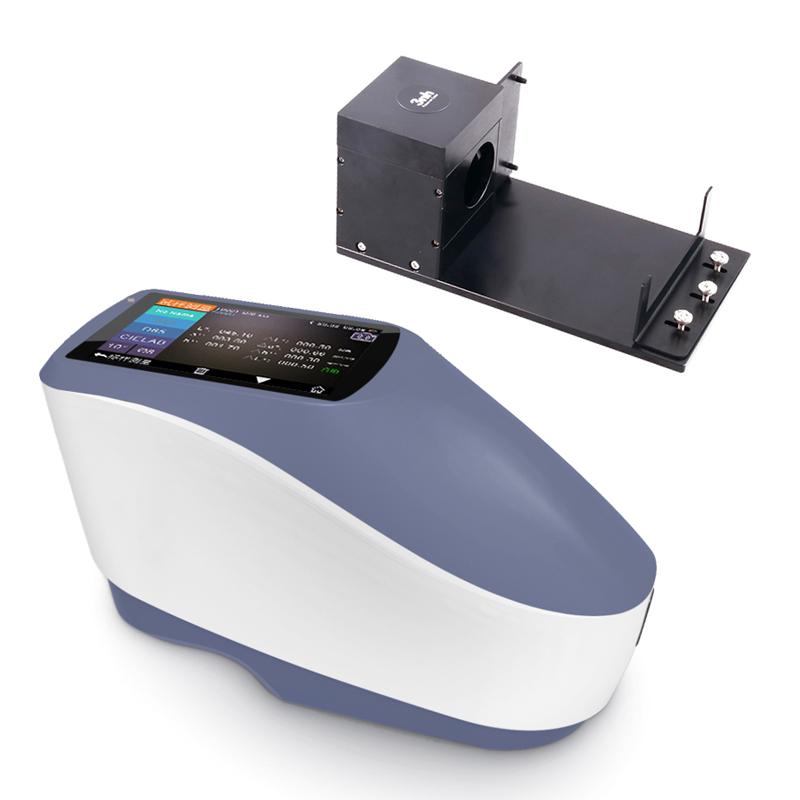

3NH YS3010 Masterbatch Colorimeter, 8mm, with multi-functional test components

Introduction

This YS3010 grating Spectrophotometer is equipped with a multi-functional test component, which is suitable for testing the reflection color measurement of samples such as high-concentration liquid reagents, sauces (such as tomato sauce, paint), powder (such as coffee), etc.

3nh YS3010 grating Spectrophotometer is a domestic (CN) grating Spectrophotometer independently developed by 3nh company with completely independent intellectual property rights. It is cost-effective, Φ8mm caliber, good test accuracy, relatively large storage space, and can meet the needs of most customers. . The Spectrophotometer is widely used in the color difference quality control of various products. It is equipped with high-end color management software and can be connected to a computer to achieve more functional expansion.

Features

1. D/8 geometric optical structure, in line with CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724/1, ASTM E1164, DIN5033 Teil7;

2. Adopt a combined LED light source with high lifespan and low power consumption;

3. Good combination of beautiful appearance and structural design in line with human mechanics;

4. The standard Φ8mm caliber is suitable for more samples to be tested; measure SCI and SCE at the same time;

5. Measure the spectrum of the sample, and the Lab data is accurate, which can be used for color matching and accurate color transfer;

6. High electronic hardware configuration: 3.5-inch TFT true color screen, capacitive touch screen, concave grating, 256-pixel double-array CMOS Detector, etc.;

7. USB/Bluetooth 4.0 dual communication mode (compatible with 2.1), wider adaptability;

8. Standard whiteboard with super dirt resistance, stability and high reflectivity;

9. Large-capacity storage space, which can store more than 20,000 test data;

10. Camera positioning;

11. The PC-side software has powerful function extensions;

12. Two standard Viewing Angles, various light sources, various color indicators, in line with various standard chromaticity data.

Application

YS3010 SpectrophotometerIt can easily achieve accurate color transfer, and can also be used as a testing device for precise color matching systems. It is widely used in plastic electronics, paint and ink, textile and garment printing and dyeing, printed paper products, automobiles, medical care, cosmetics and food industries, as well as in scientific research institutions and laboratories.

Function interface

Pictures

YS Multifunctional Test Components

YS series multifunctional test components can be used for the reflection color measurement of samples such as high concentration liquid reagents, sauces (such as ketchup, paint), powder (such as coffee) and so on.

How to use the YS multifunctional test component

1. The YS multi-functional test component should be used in conjunction with the YS series Spectrophotometer . Before use, the YS series Spectrophotometer should be calibrated professionally for black and white calibration.

2. Place the YS series color measuring instrument as shown in the figure. The measuring port of the color measuring instrument should be well connected with the measuring port of the bracket. At the same time, the two base baffle pins should be aligned with the base plate reference holes of the YS color measuring instrument, and then Hold the push plate against the Colorimeter, tighten the screws, and check whether the Colorimeter is loose, and if it is loose, be sure to tighten the screws again.

3. Put the cuvette loaded with the sample to be tested into the bracket. Gently push away the rotatable pressure plate, gently put in the cuvette, one side of the cuvette is close to the measuring port of the instrument, and the other side is pressed by the rotatable pressure plate; note that the height of the liquid in the cuvette should be greater than the matching height of the test caliber (ie sample height reaches more than half a cup).

4. Cover the cover to ensure that the interior of the cuvette is completely dark. After completing the above steps, you can use the YS series Colorimeter to measure the reflected color of the sample.

host X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
