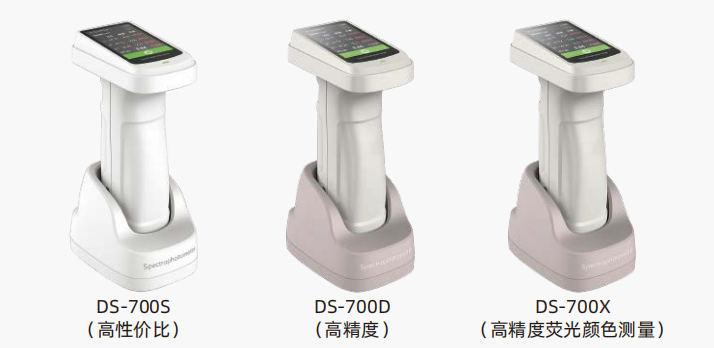

CHNSPEC DS-700X Portable Colorimeter high-precision Fluorescence Color measurement
Qualified by first-level Measurement, Fluorescent Color measurement, Delta E * ab ≤ 0.04, equipped with 3 calibers of 0019 8mm, φ 4mm, 1 * 3mm, camera framing and positioning, support Android, IOS, WeChat Mini Program, Windows program.
CHNSpec
DS-700X
-
CHNSPEC CS-800C Desktop 45/0 Colorimeter Color reflection measurement
$ 8745.00 -
3NH ST50 Colorimeter φ 8mm
$ 2061.00 -
CHNSPEC CS-420 Liquid Colorimeter 11mm caliber, with liquid measurement fixture package
$ 1812.00 -
3NH TS8260 Portable Desktop Colorimeter
Login -
3NH YS3010 Masterbatch Colorimeter, 8mm, with multi-functional test components
Login
Advantages
Excellent repeatability and inter-stage difference: Repeatability ÎE*abâ¤0.025, inter-stage difference â¤0.25
Passed the first level measurement
Dual column high-precision CMOS array sensor
Intelligent automatic calibration, the benchmark is ZrO2 with a reflectivity greater than 90%, eliminating the need for frequent whiteboard calibration
360-700nm full-band balanced LED light source and ultraviolet UV light source
10nm resolution grating spectroscopy technology
Equipped with three measuring calibers, no tools are required and can be replaced at any time to meet a variety of sample measurement needs.
Provides 30+ measurement parameters and 37 evaluation light sources
Support Android, IOS, WeChat applet, Windows program
Camera framing and positioning can clearly observe the area being measured
CHNSpec DS-700X ColorimeterSpecifications
| LIST | VALUE |
|---|---|
| Measurement caliber | 3 calibers (MAV: Should 8mm/Should 11mm; SAV: Should 4mm/Should 6mm; MINI: 1 * 3mm) |
| Lighting/light receiving system | d/8,SCI |
| Sensors | Dual Array Sensors |
| spectroscopic mode | grating |
| Integrating sphere size | Φ40mm |
| Wavelength Range | 400-700nm |
| Measurement wavelength interval | 10nm |
| Reflectance Measurement Range | 0~200%, resolution: 0.01% |
| Lighting source | Full Band Balanced LED Light source + UV |
| Measurement time | Approximately 1.5 seconds |
| Repeatability | ΔE*ab≤ 0.025 |
| inter-device difference | ΔE*ab≤0.25 |
| Operating language | Simplified Chinese, English |
| Display Accuracy | 0.01 |
| Standard observer | 2°，10° |
| Light source 1 | A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12, CWF,U30,U35,DLF,NBF,TL83,TL84 |
| Color space/chroma indicator 1 | Light spectrum reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (delta E * ab, delta E * cmc, delta E * 94, delta E * 00), |
| Color space/chroma indicator 2 | Whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, TaubeBergerStensby), Yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), Blackness (My, dM) |
| memory | APP Mass storage |
| Port | USB, Bluetooth |
| Battery life | Single charge can be continuously measured 8000 times, 3.7V/3000mAh |
| Camera viewfinder positioning | Yes. |
| Calibration method | Automatic calibration |
| Software support | Android, IOS, WeChat Mini Program, Windows |
| Accuracy | Guaranteed Level 1 Measurement Qualification |
| meet the standard | Compliant with standards CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ISO7724-1, ASTM E1164, DIN5033 Teil7 |
| Display | IPS full color screen 3.5 inches |
| Light source lifetime | 10 years 1 million times |
| Color space/chroma indicator 3 | Tint (ASTM E313-00), color density CMYK (A, T, E, M), isochromatic index Milm, Munsell, hiding power, force (dyestuff strength, tinting strength) |
| Light source 2 | ID50,ID65,LED-B1,LED-B2,LED-B3, LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2 |
CHNSpec DS-700X Colorimeter Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
