Introduction
Luggage vibration testing machine is used to test the vibration and impact resistance test of suitcase handle, sewing thread and overall structure. The method is to load the specified load on the object, and do 2500 tests on the specimen with a speed impact of 30 times per minute and a stroke of 4 inches. The test results can be used as a reference for quality improvement.
Standards
Luggage vibration testing machine complies with American SAMSONITE standard

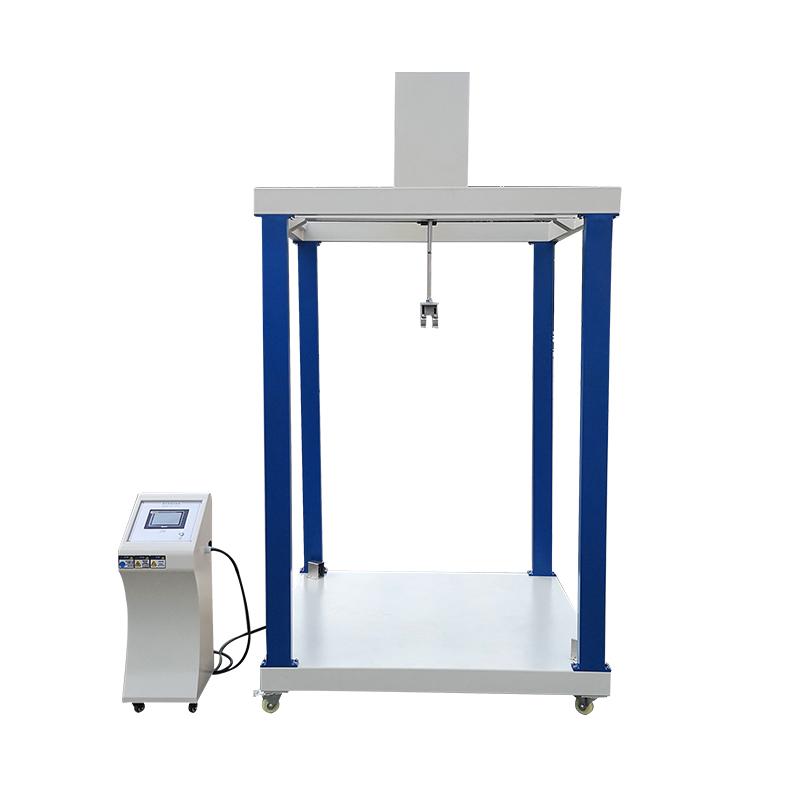

AISRY ASR-7105 Luggage oscillation testing machineSpecifications
| LIST | VALUE |
|---|---|
| Impact height | 4 inches (0-6 inches) adjustable |
| vibration mode | Spring type 7.9kg/mm |
| Test speed | 5-50Cmp adjustable |
| Counter | LCD 0-999999 times 6-digit display |
| Machine size | 1400 × 1200 × 2500mm (L × W × H) |
| Weight | About 390Kg |
| Rated Voltage | AC～220V 50Hz |
AISRY ASR-7105 Luggage oscillation testing machine Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
