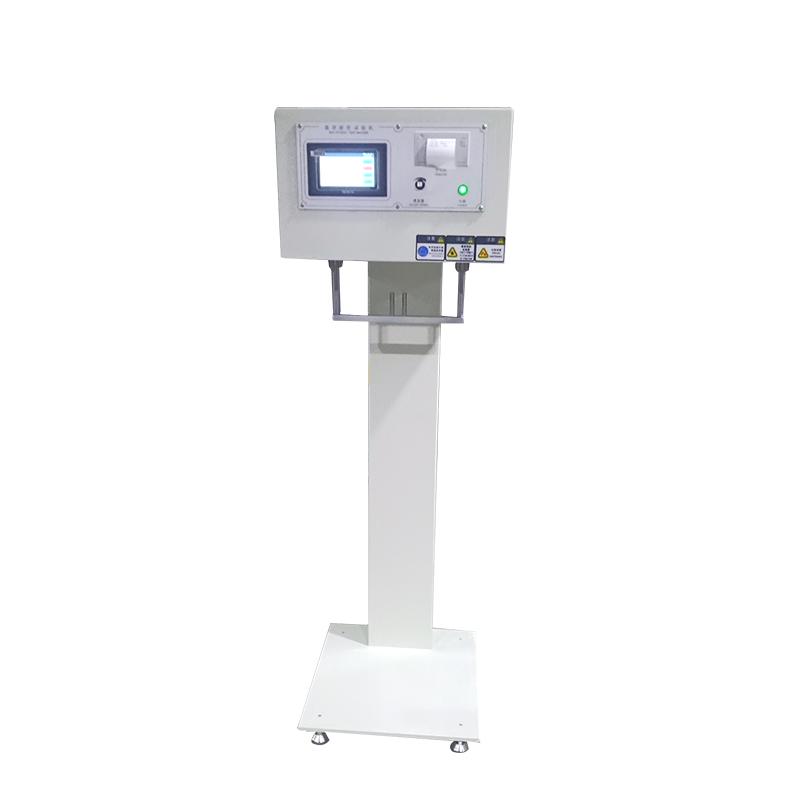

CHINA ASR-TL-500 Bag fatigue Tester 500MM
500mm test space, microcomputer control, four-column structure, in line with GB/T2166.1 standard, the amplitude is 30 ± 2mm, and the number of fatigue tests can be freely set.
AISRY
ASR-TL-500
-
DUBAN DB10-4222 Handheld Acoustic calibrator Class 2
$ 234.00 -
MODERNER NGG dry heat test pot, wood-based panel heat resistance test
Login -
KOSON KS-150 In-situ single shear Tester, masonry shear strength Tester 150KN thrust
$ 670.00 -
QIWEI QW-NSY-12S Sample condensing instrument, air drying instrument 12-hole PID temperature control
$ 243.00 -
CHINA NBC-5025B 360 degree wire swing testing machine
$ 1396.00
Introduction
The bag fatigue testing machine is manufactured in accordance with the provisions of the national standard GB/T2166 1-2008 "Plastic Shopping Bags" of the People's Republic of CHINA. It is an instrument for performing vertical vibration fatigue tests on hand-held plastic bags.
Technical advantages
(1) Microcomputer control, large LCD display
(2) Four-column structure, the test process is stable and reliable
(3) PVC operation panel, humanized design
(4) The number of fatigue tests can be set freely, and the test time can also be set
(5) Selection of high-quality components, low noise, long life
(6) The test results of the lifting fatigue testing machine are automatically printed, and the test results are clear and clear
Product Structure
1. Adjustable feet; 2. Machine base; 3. Beam; 4. Outer cover; 5. Frequency display area; 6. Frequency setting button; 7. Start and stop button ;
AISRY ASR-TL-500 Bag fatigue testing machine 500MMSpecifications
| LIST | VALUE |
|---|---|
| amplitude | 30±2mm |
| vibration frequency | 2-3Hz (130 times per minute) |
| Test space height | 500mm |
| load | 5kg |
| Count range | Single cycle 99999 times |
| Dimensions | 570mmX510mmX1520mm |
| Weight | 58Kg |
| Execution standards | GB/T 21661-2008 Plastic shopping bags, QB/T 4379-2012 Portable paper bags, etc |
AISRY ASR-TL-500 Bag fatigue testing machine 500MM Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
