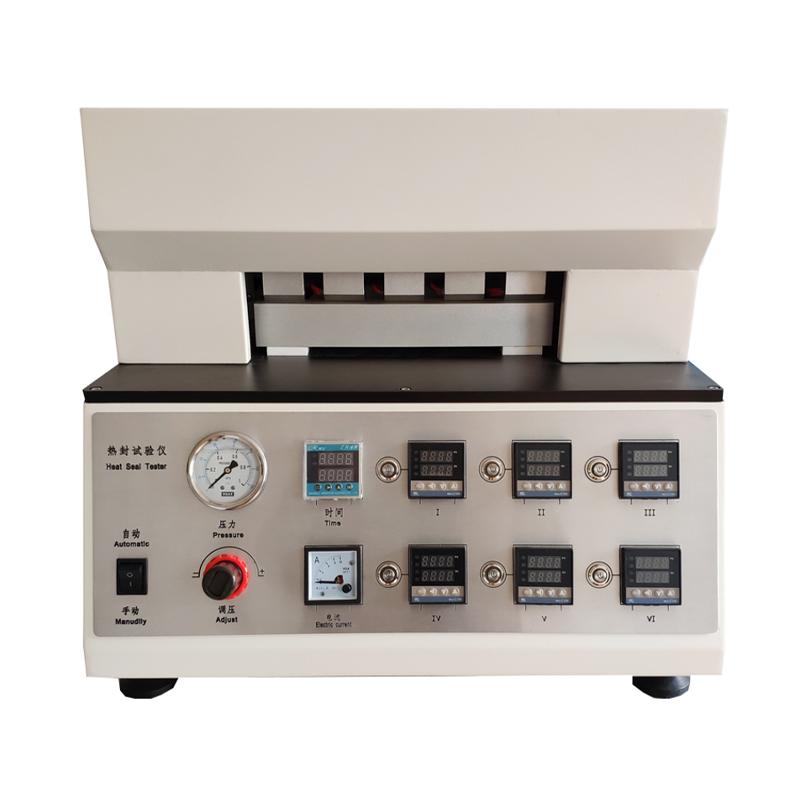

WSH-05 heat seal Tester, single heating/double heating

Introduction

WHS-05 heat sealing Tester uses the hot pressure sealing method to determine the heat sealing temperature, heat sealing time, heat sealing pressure and other parameters of plastic film substrate, flexible packaging composite film, coated paper and other heat sealing composite films, so as to provide users with accurate heat sealing test indicators. The control system is fully digital, the key components are familiar with brand products, with a high degree of automation and easy operation.

Product Features

1. Digital display of control system, fully automatic operation;

2. Digital P.I.D. temperature control, high temperature control accuracy;

3. The heat sealing knife material is made of aluminum alloy, and the temperature of the heat sealing surface is uniform and consistent with rapid temperature conduction.

4. Customized special mold heating tube, rapid heating and long service life;

5. Double cylinder structure, built-in adjustable pressure balance mechanism, to ensure that the up and down movement of the sealing knife is consistent;

6. The pneumatic control components have high precision, and the full set adopts familiar brands;

7. Anti-scald design and leakage protection design, safer operation;

8. The heating element is carefully designed to make the equipment have a long service life;

9. There are two Operating Modes, automatic and manual, which can realize effective operation;

10. According to the principle of ergonomics, the operation panel is specially optimized and designed, which is convenient to operate;

11. The instrument is equipped with cooling fans on both sides, with large air volume and uniform and fast heat dissipation;

Host, Foot Switch, Air Source Cable, Air Filter, Power Cord, Manual

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
