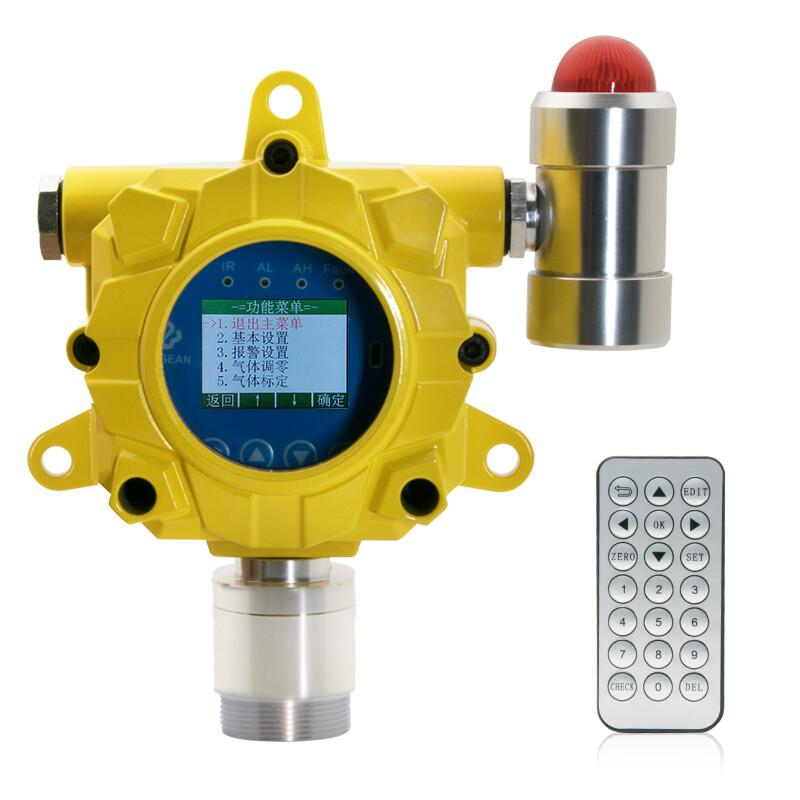

Bosean K-G60（O2） Stationary Gas Detector

BOSEAN K-G60 (O2) Industrial Oxygen Gas Alarm Detector

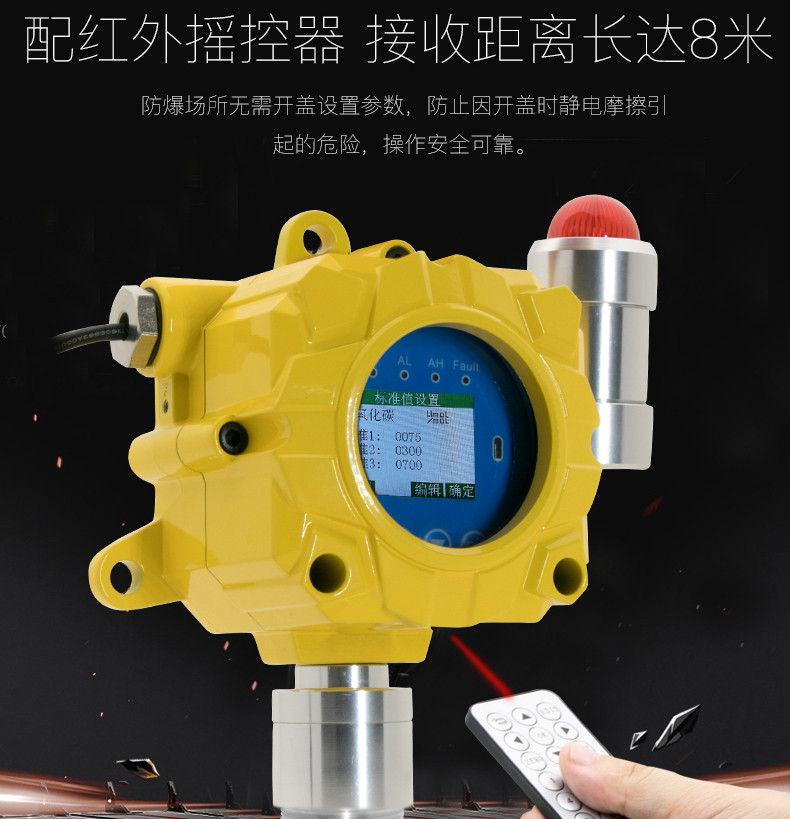

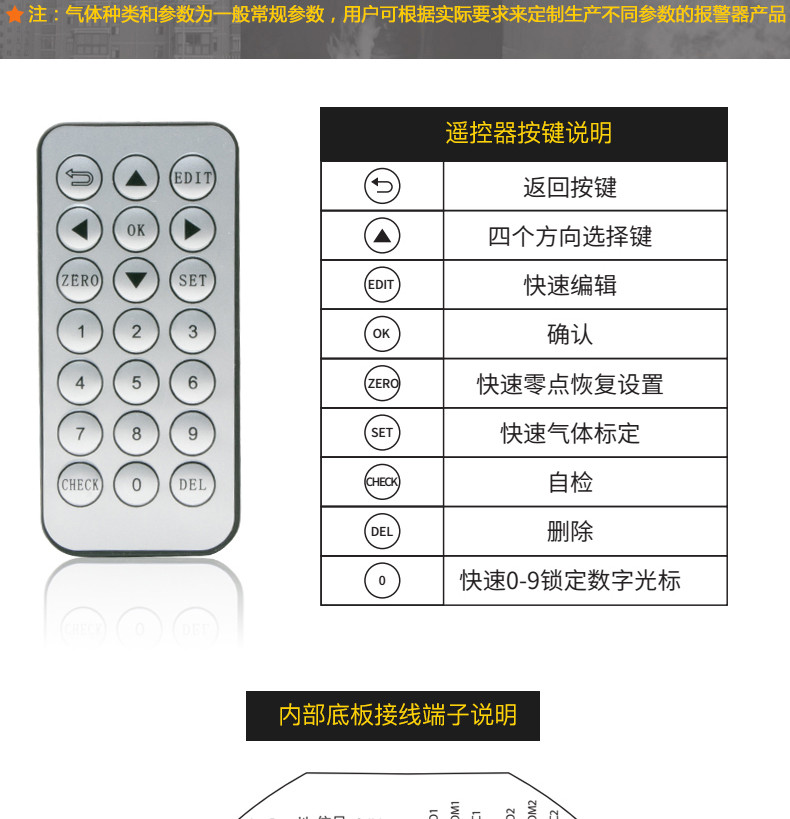

Fixed type, measuring combustible gas (O2), range 0-30%, multi-parameter LCD digital display, full software calibrating, semiconductor nano-process, infrared remote control remote operation, up to 8 meters.

Brand

SKU: NB039797

Bosean

Model

K-G60（O2）

Service

Bosean shopSE

Information

Datasheet

What else did others buy

HONEYEAGLE HNAG1000-CO Fixed Carbon Monoxide Detector 40000PPM

$ 662.00
SMART SENSOR AR8500 Ammonia Gas Detector, range 0~100ppm

$ 319.00
SMART SENSOR AR8600L Formaldehyde Detector measurement range 0~5PPM

$ 343.00
Empaer AATL-EX Pathfinder Series Fixed Gas Detector

$ 269.00
GUOYUGRA GY/VGD-200-C3H8O-G (0-100ppm) Isopropanol Detector

$ 572.00

Genuinegoods

Bosean K-G60（O2） Stationary Gas DetectorOverview
Specifications
Comments
FAQs

K-G60（O2）

Stationary Gas Detector

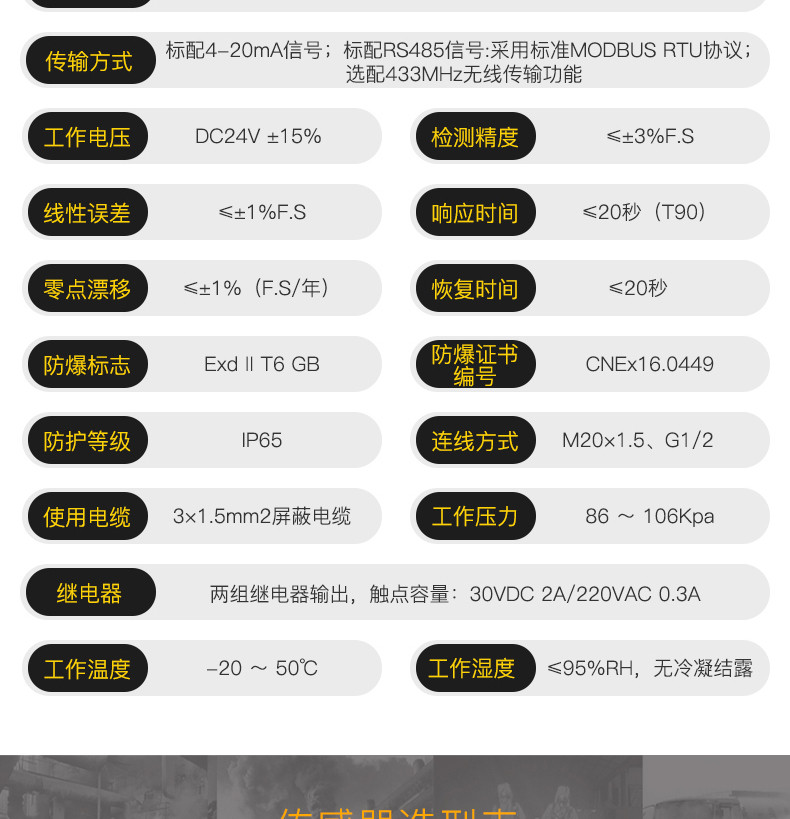

Bosean K-G60（O2） Stationary Gas DetectorSpecifications

LIST	VALUE
Detection gas	Oxygen O2
range	0 ~ 30% VOL
Optional range	0 ~ 30% VOL
resolution	0.1% VOL
alarm point	Low: 19.5% VOL High: 23.5% VOL

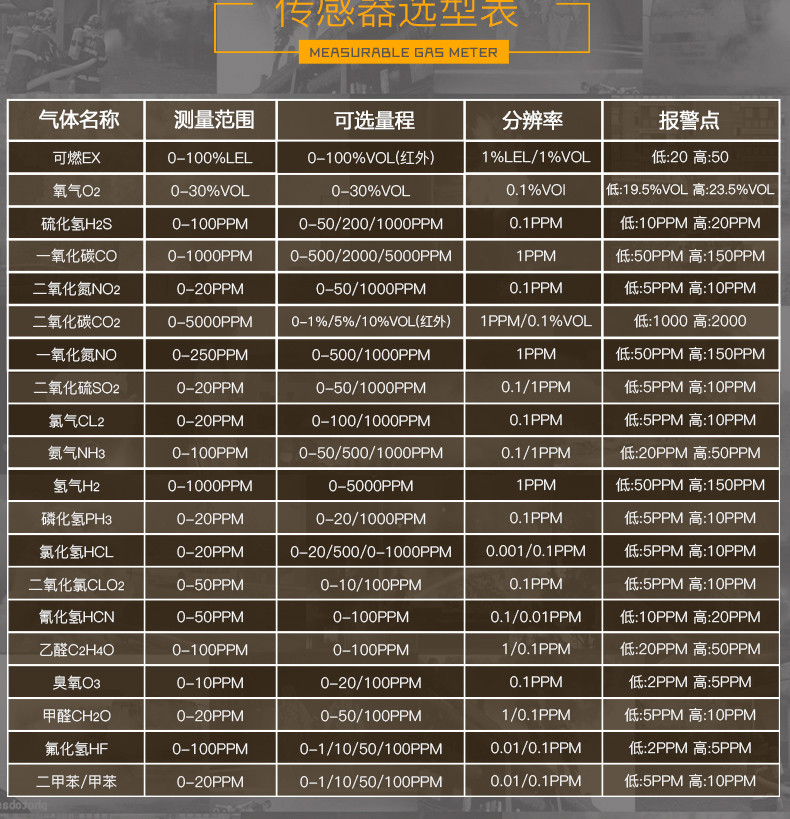

Sensors	Electrochemistry, Catalytic combustion, Semiconductor, PID Light Ion, Infrared Gas Sensors

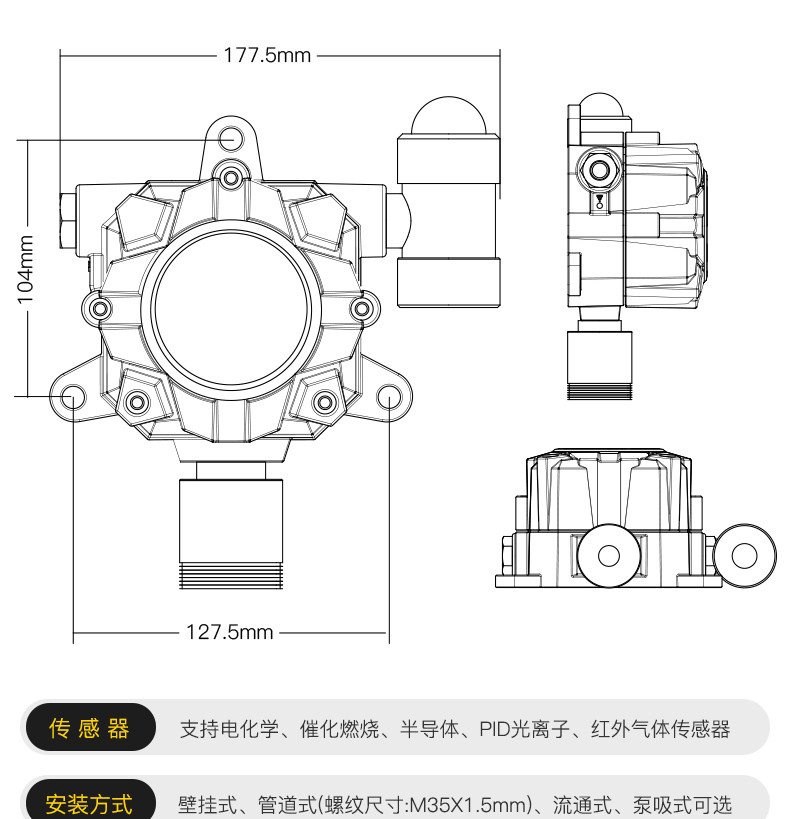

Installation method	Wall-mounted, pipeline type (thread size: M35X1.5mm), circulation type, pump suction type optional

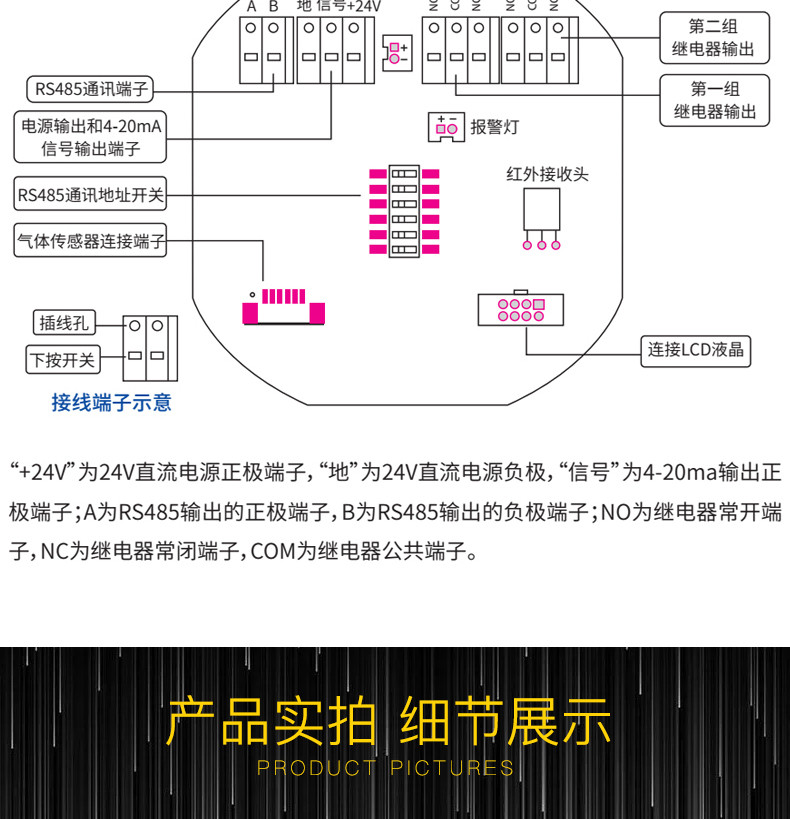

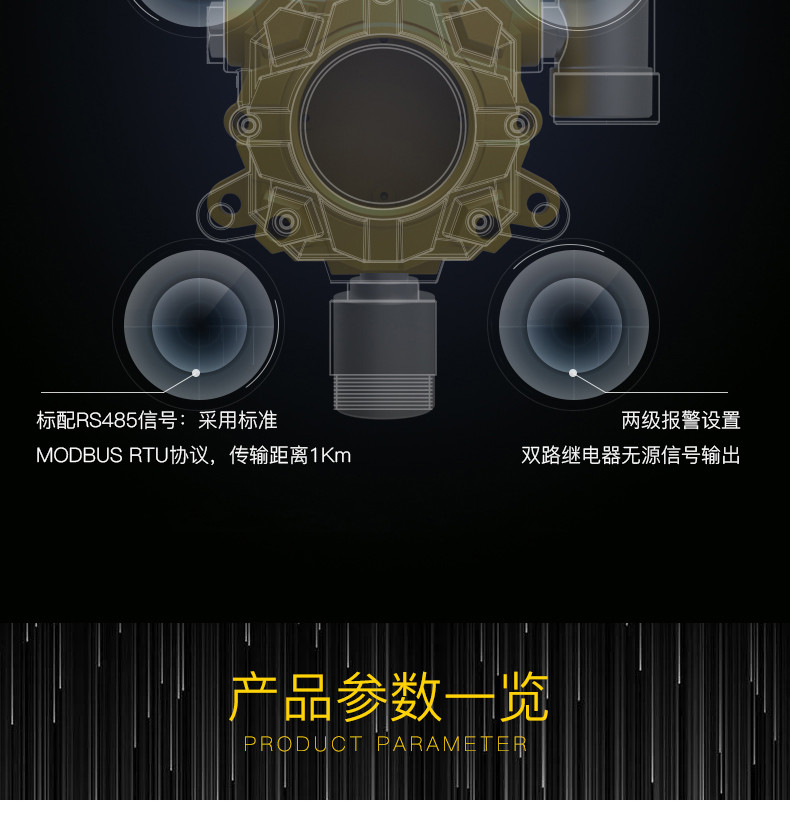

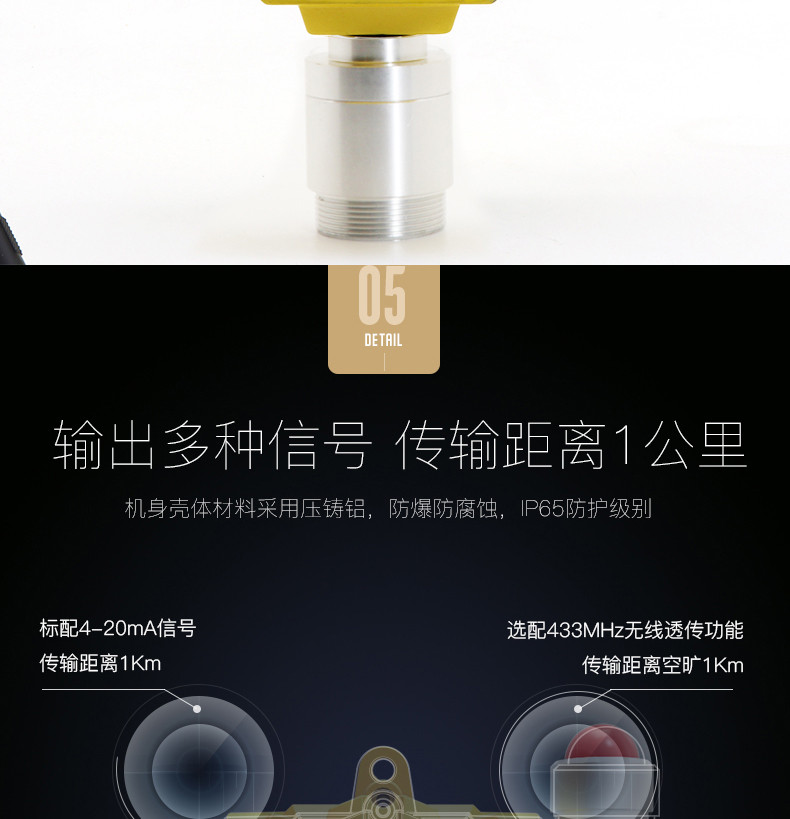

Transmission method	Standard 4-20mA; Standard RS485 Model: Standard MODBUS RTU Protocol: Optional 433MHz Wireless Transmission Function
Working Voltage	DC24V±15%
Detection Accuracy	≤±3%F.S
linearity error	≤±1%F.S
Response time	≤20s
Zero drift	≤±1%(F.S/年)
recovery time	≤20s
Explosion-proof sign	Exd II T6 GB
Explosion-proof Certificate number	CNEx16.0449
Protection class	IP65
Connectivity	M20x1.5、G1/2
Connection Cable	3X1.5mm2 Shielding Cable
Operating Pressure	86 ~ 106Kpa
relay	Two sets of relay outputs, touchpoint container: 30VDC 2A/220VAC 0.3A
Operating Temperature	-20~50℃
Operating Humidity	≤ 95% RH, no condensation

Bosean K-G60（O2） Stationary Gas Detector Packing list

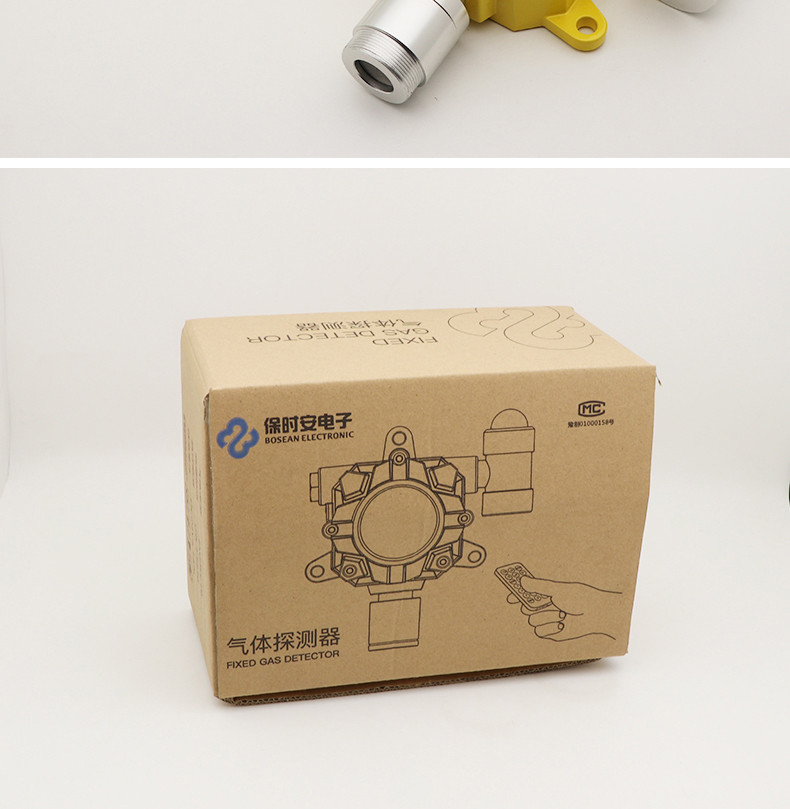

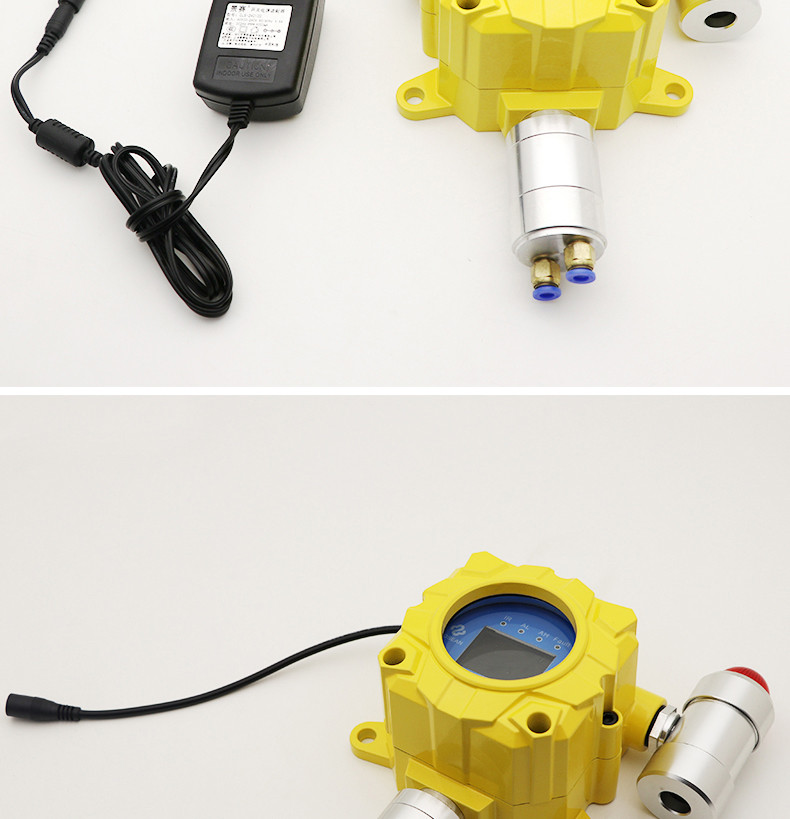

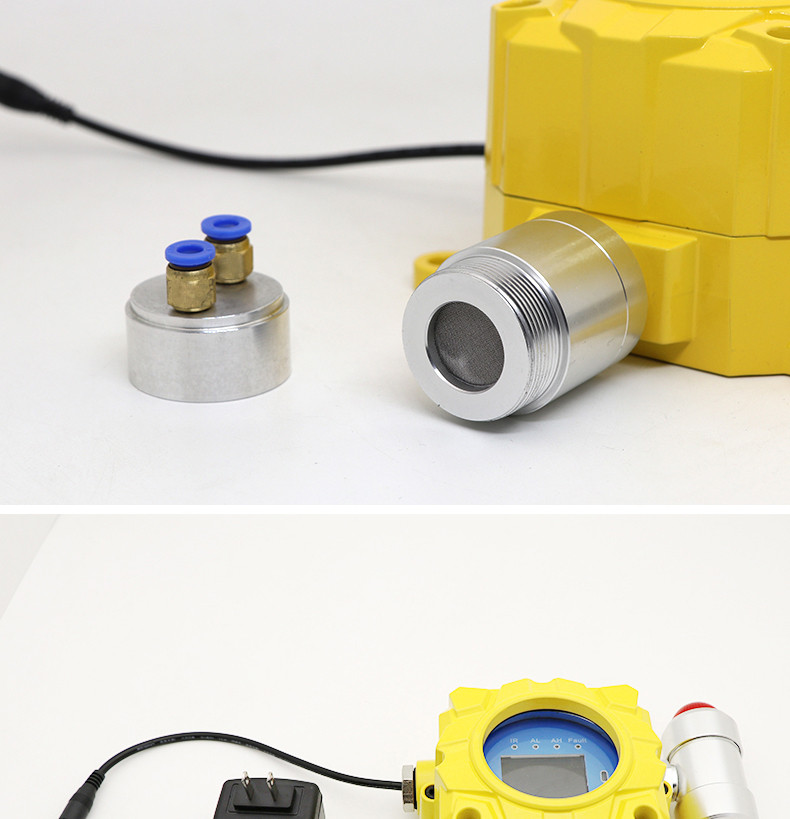

Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Can this instrument be used in chemical plant pipelines? How to install it?

[A]

Yes, the K-G60 supports tubular installation, thread size M35X1.5mm, can be directly fixed to the pipeline to monitor oxygen. It Protection Rating IP65, explosion-proof, suitable for the harsh conditions of chemical plants, to ensure safe operation.
