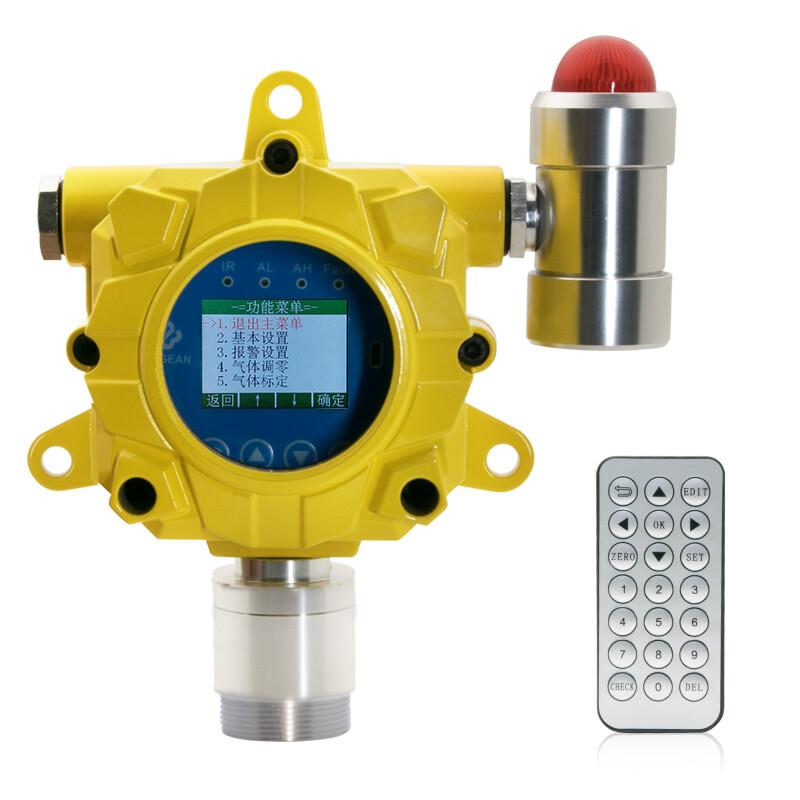

Bosean K-G60（O3） Stationary Gas Detector

BOSEAN K-G60 (O3) Industrial Ozone Gas Alarm Detector

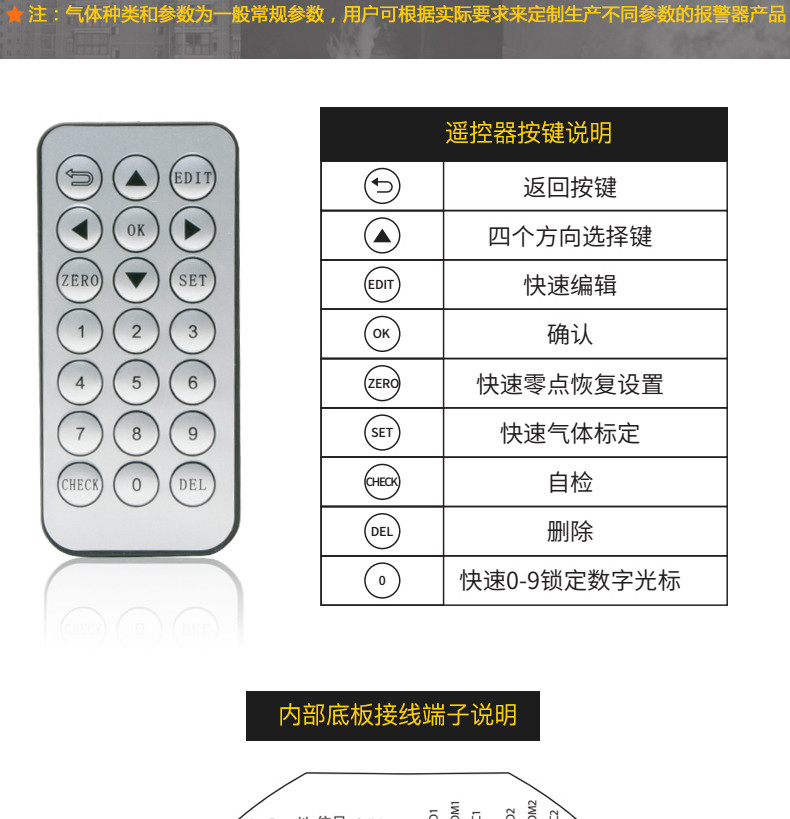

Fixed, measure combustible gas (O3), range 0-10PPM, multi-parameter LCD digital display, full software calibrate, semiconductor nano-process, infrared remote control remote operation, up to 8 meters.

Brand

SKU: NB039800

Bosean

Model

K-G60（O3）

Service

Bosean shopSE

Information

Datasheet

What else did others buy

Baoshi'an BH-50 wall-mounted gas control cabinet, dual-channel host

$ 146.00
GUOYUGRA GY/VGD-200-R125-G Refrigerant, refrigerant Detector, pentafluoroethane gas 0-1000ppm

$ 1199.00
Baoshi'an BH-90-NO2 Nitrogen Dioxide Gas Alarm Instrument 0~20ppm

$ 228.00
GUOYUGRA GY8800-C2CL4-G gas online monitoring system

$ 1450.00
GUOYUGRA GY/VGD-200-SiH3Cl-G (0-10ppm) Chlorosilane Detector

$ 886.00

Genuinegoods

Bosean K-G60（O3） Stationary Gas DetectorOverview
Specifications
Comments
FAQs

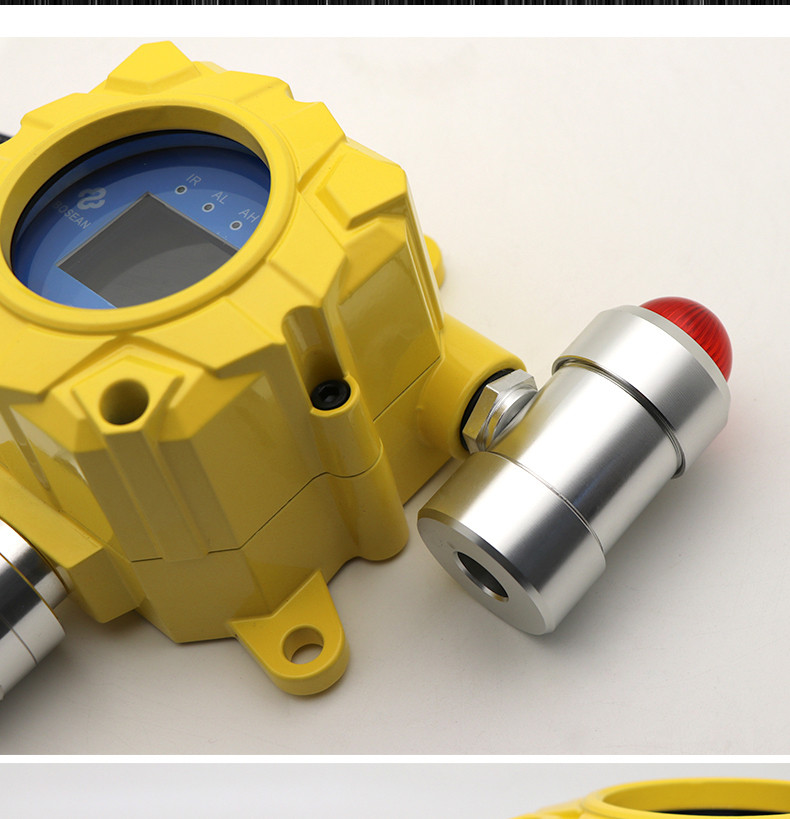

K-G60（O3）

Stationary Gas Detector

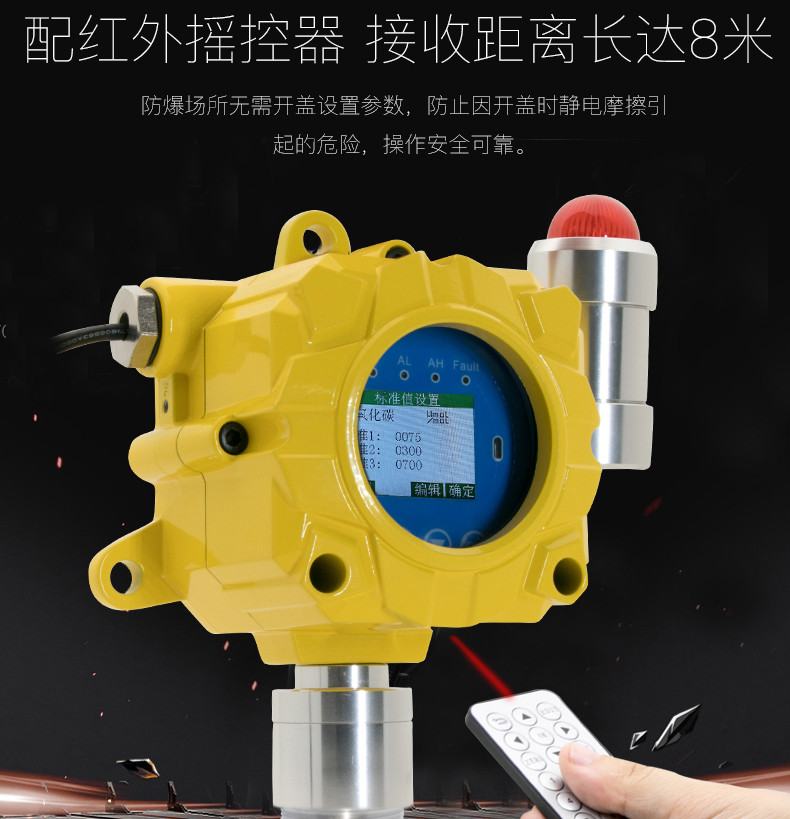

Fixed, measure combustible gas (O3), range 0-10PPM, multi-parameter LCD digital display, full software calibrate, semiconductor nano-process, infrared remote control remote operation, up to 8 meters.

Bosean K-G60（O3） Stationary Gas DetectorSpecifications

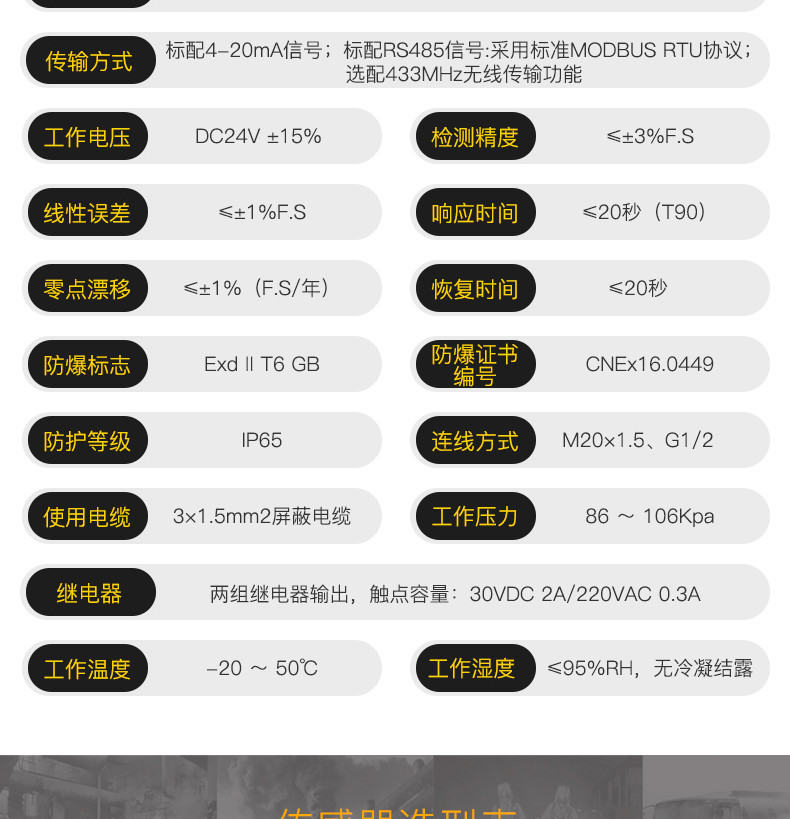

LIST	VALUE
Detection gas	Ozone O3
range	0~10ppm
Optional range	0~20/100ppm
resolution	0.1PPM
alarm point	Low: 2PPM High: 5PPM

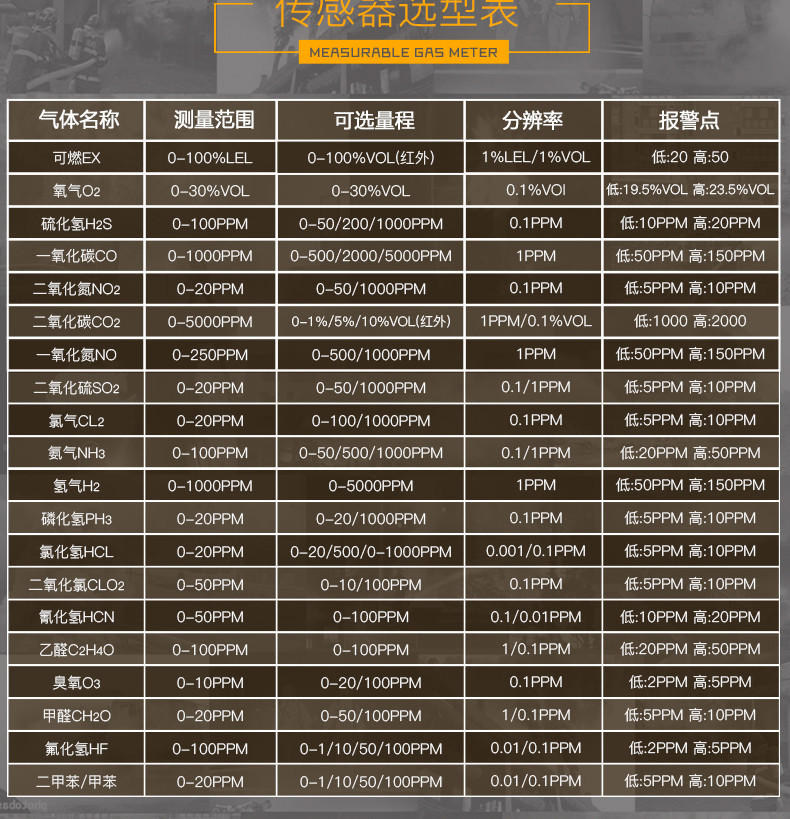

Sensors	Electrochemistry, Catalytic combustion, Semiconductor, PID Light Ion, Infrared Gas Sensors

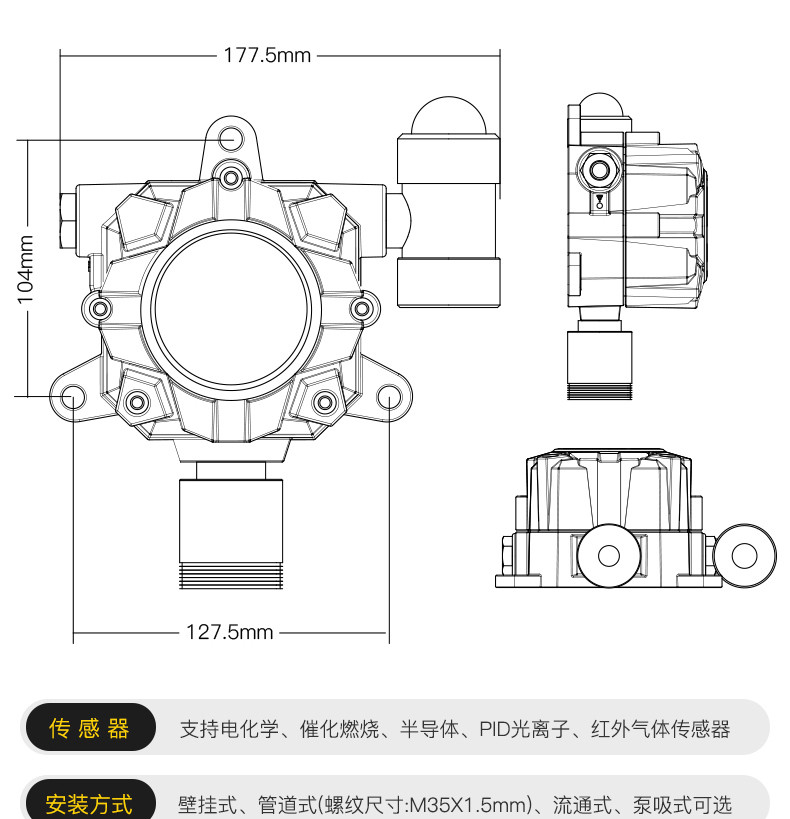

Installation method	Wall-mounted, pipeline type (thread size: M35X1.5mm), circulation type, pump suction type optional

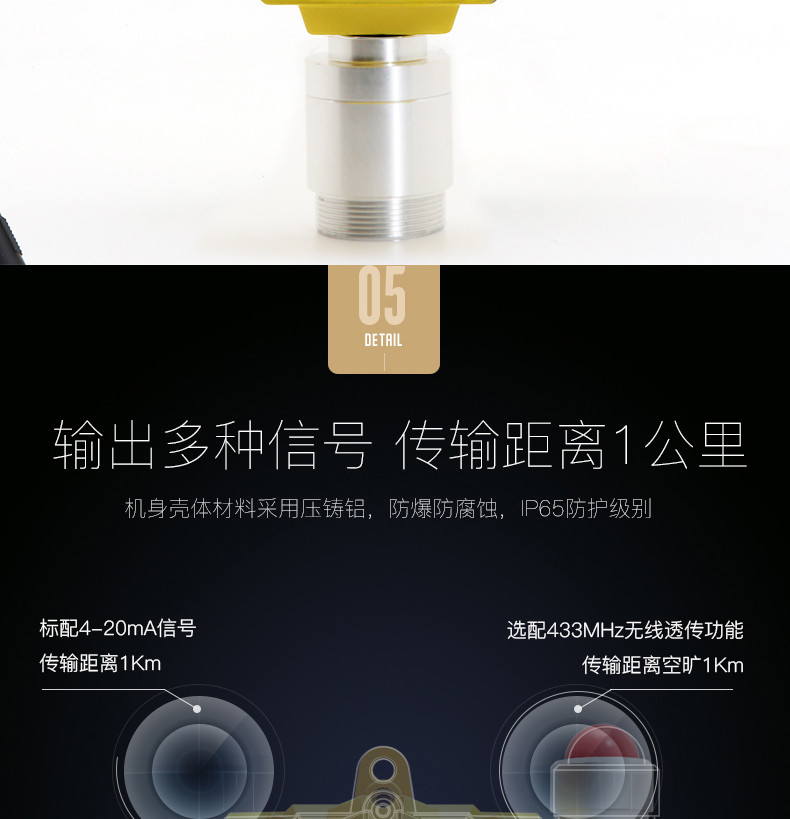

Transmission method	Standard 4-20mA; Standard RS485 Model: Standard MODBUS RTU Protocol: Optional 433MHz Wireless Transmission Function
Working Voltage	DC24V±15%
Detection Accuracy	≤±3%F.S
linearity error	≤±1%F.S
Response time	≤20s
Zero drift	≤±1%(F.S/年)
recovery time	≤20s
Explosion-proof sign	Exd II T6 GB
Explosion-proof Certificate number	CNEx16.0449
Protection class	IP65
Connectivity	M20x1.5、G1/2
Connection Cable	3X1.5mm2 Shielding Cable
Operating Pressure	86 ~ 106Kpa
relay	Two sets of relay outputs, touchpoint container: 30VDC 2A/220VAC 0.3A
Operating Temperature	-20~50℃
Operating Humidity	≤ 95% RH, no condensation

Bosean K-G60（O3） Stationary Gas Detector Packing list

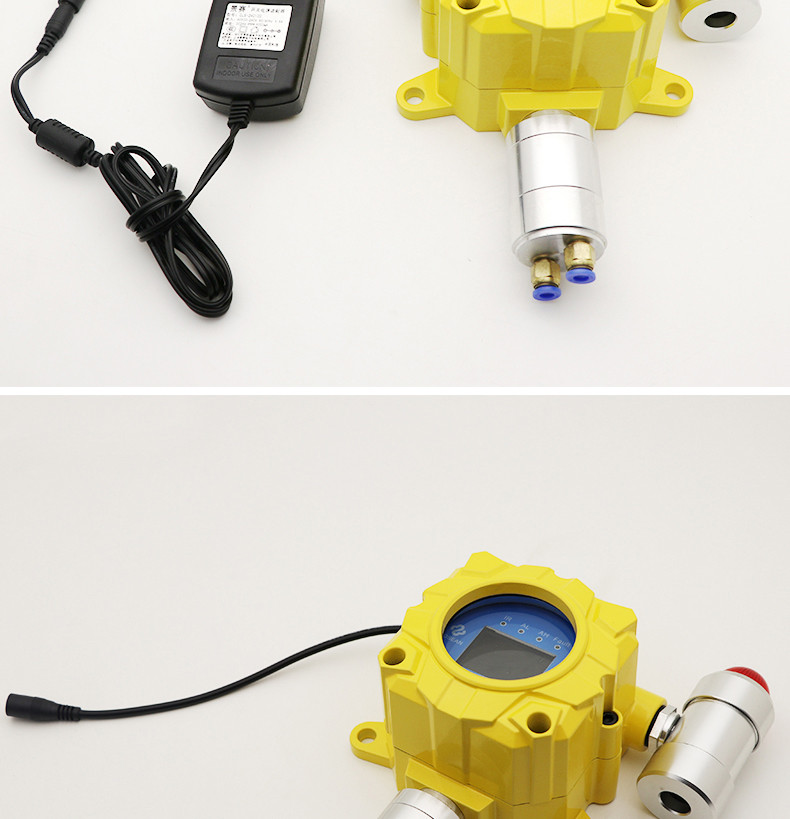

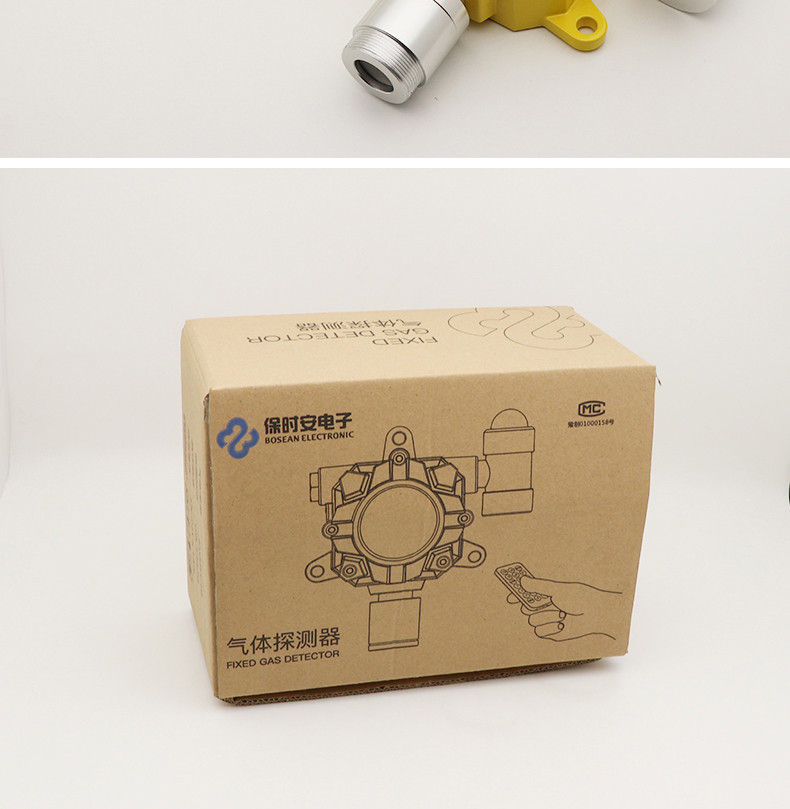

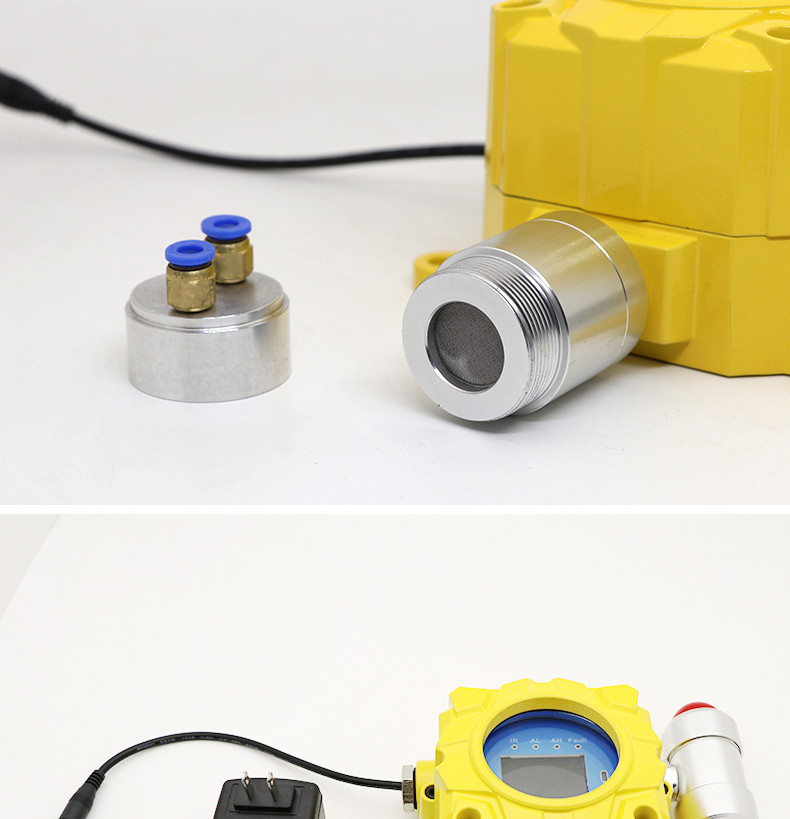

Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
