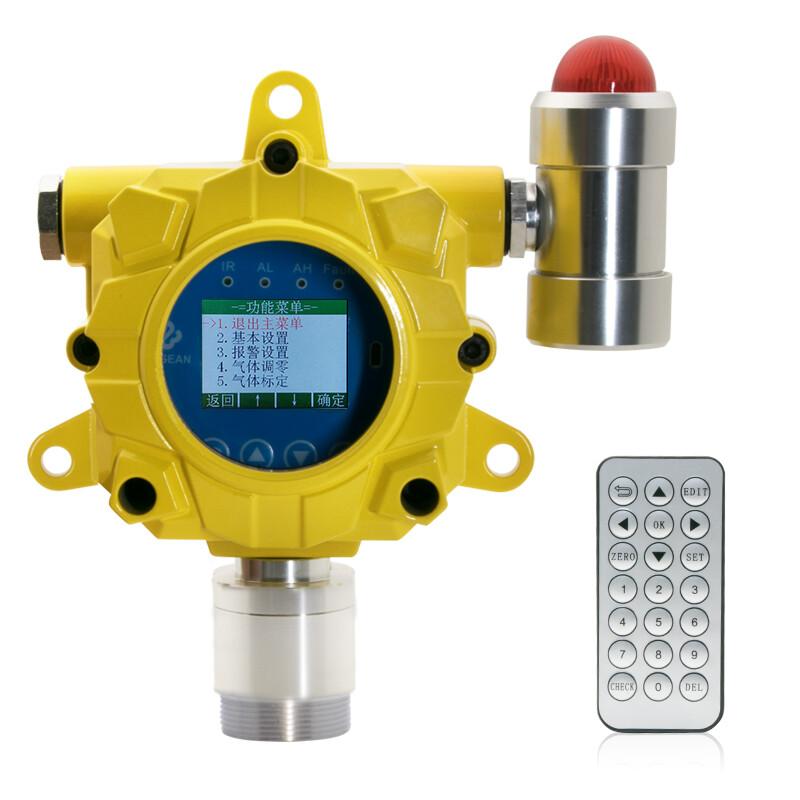

Bosean K-G60（NO） Stationary Gas Detector

BOSEAN K-G60 (NO) Industrial Nitric Oxide Gas Alarm Detector

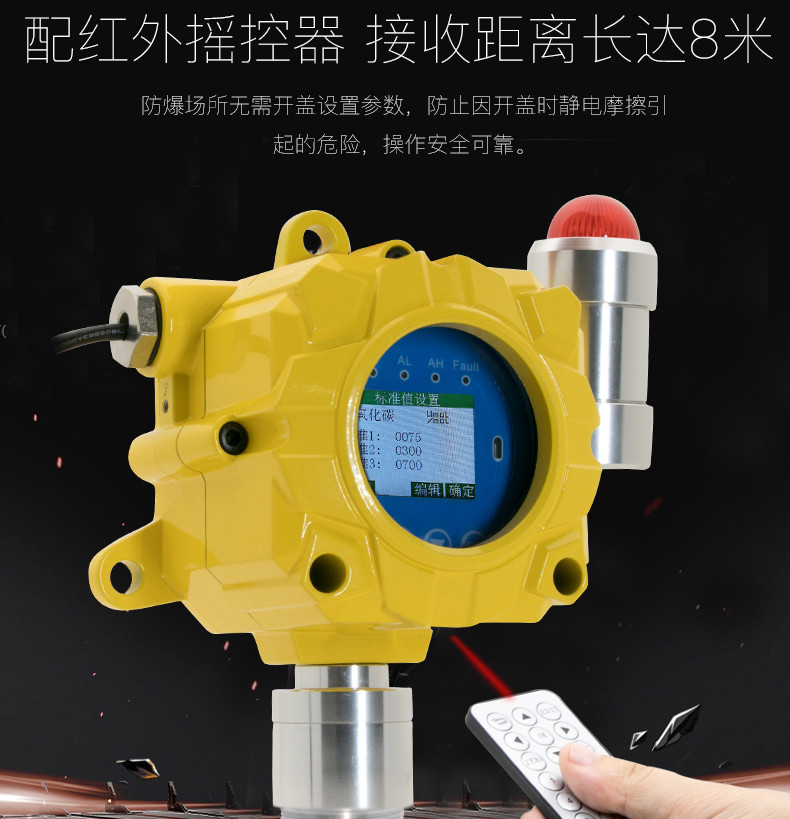

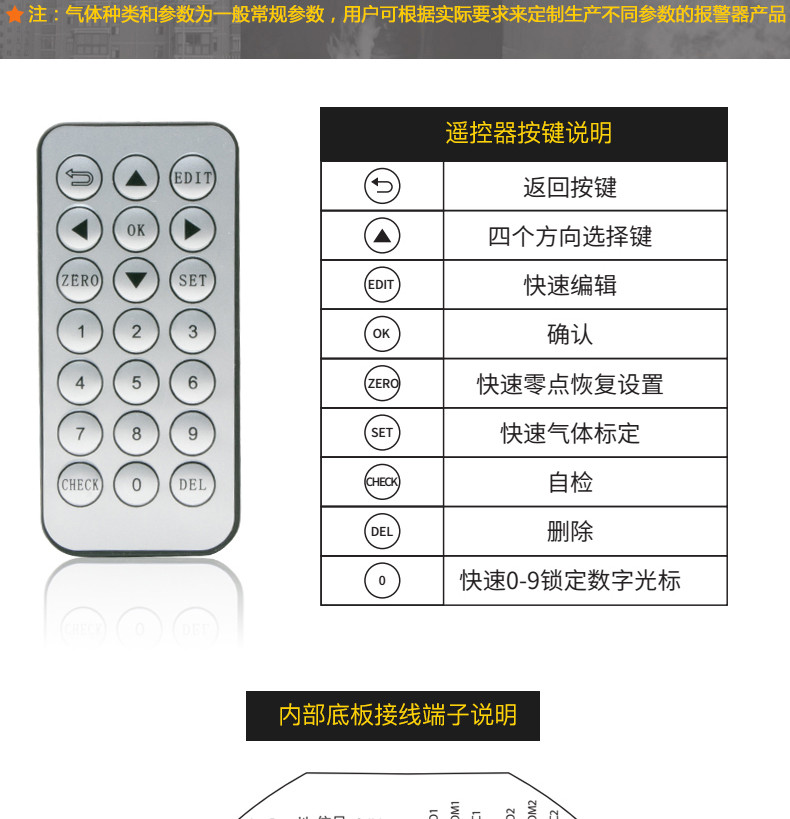

Fixed, measure combustible gas (NO), range 0-250PPM, multi-parameter LCD digital display, full software calibrate, semiconductor nano-process, infrared remote control remote operation, up to 8 meters.

Brand

SKU: NB039802

Bosean

Model

K-G60（NO）

Price

$ 327.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Bosean shopSE

Information

Datasheet RFQ Contract

What else did others buy

BOSEAN BH-60-PH3 Fixed phosphating hydrogen Gas Detector 0~20ppm

$ 241.00
HONEYEAGLE HNAG1000-H2S Fixed hydrogen sulfide Detector 0-1000PPM

$ 347.00
GUOYUGRA GY/VGD-200-SiF4-G (0-10ppm) silicon tetrafluoride Detector

$ 879.00
GUOYUGRA GY/VGD-200-Ar-G (0-10% Vol) Argon Detector

$ 817.00
KORNO NBC500-YH-CO-IR Infrared CO Detector 0-2000ppm

$ 2403.00

Genuinegoods

Bosean K-G60（NO） Stationary Gas DetectorOverview
Specifications
Comments
FAQs

K-G60（NO）

Stationary Gas Detector

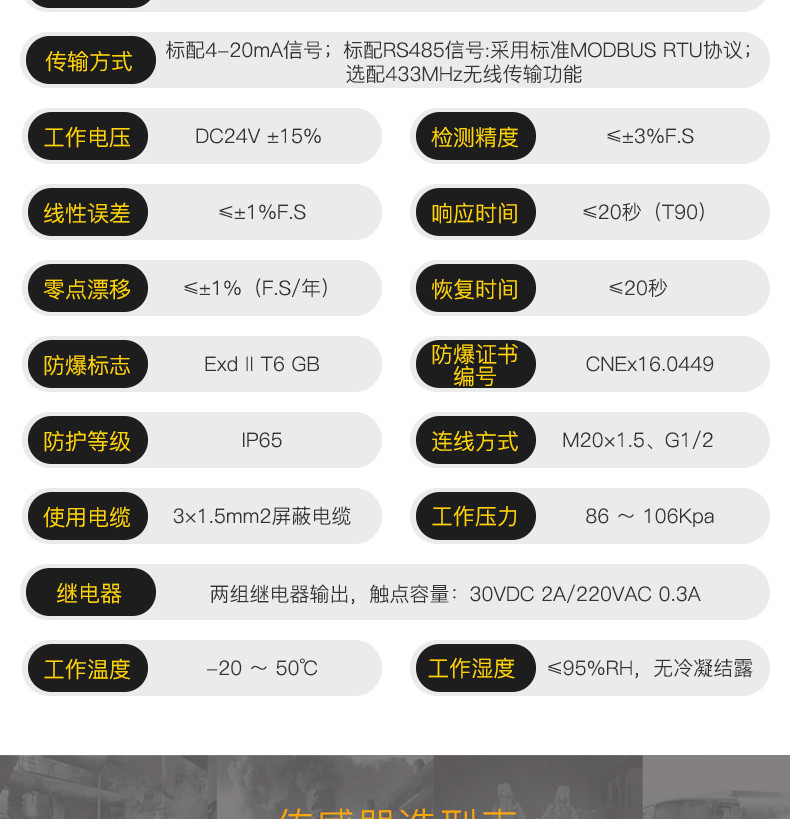

Bosean K-G60（NO） Stationary Gas DetectorSpecifications

LIST	VALUE
Detection gas	Nitric oxide NO
range	0~250ppm
Optional range	0~500/1000ppm
resolution	1PPM
alarm point	Low: 50PPM High: 150PPM

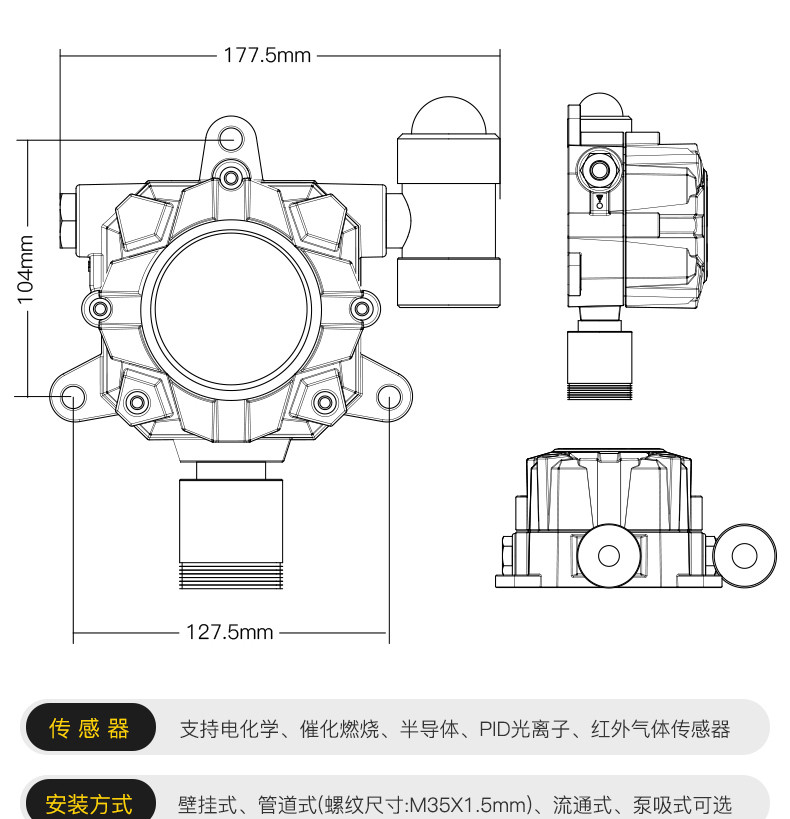

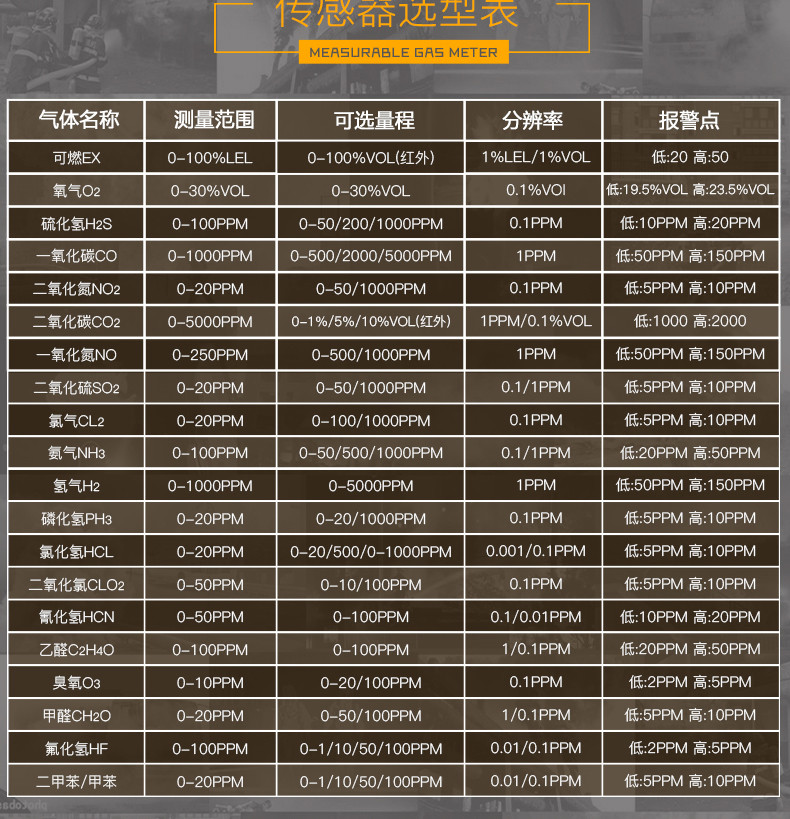

Sensors	Electrochemistry, Catalytic combustion, Semiconductor, PID Light Ion, Infrared Gas Sensors

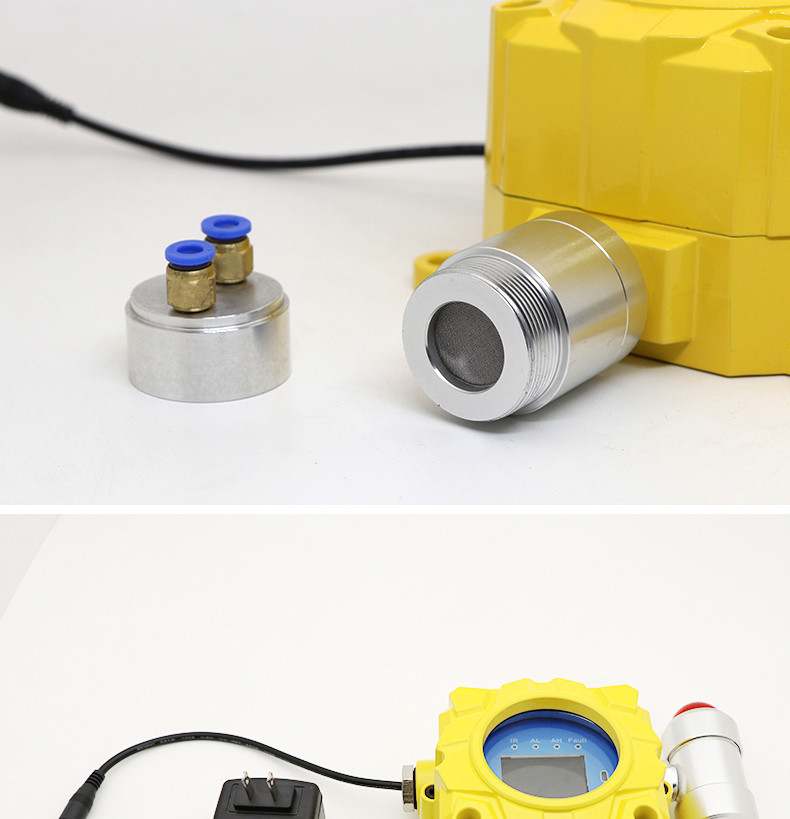

Installation method	Wall-mounted, pipeline type (thread size: M35X1.5mm), circulation type, pump suction type optional

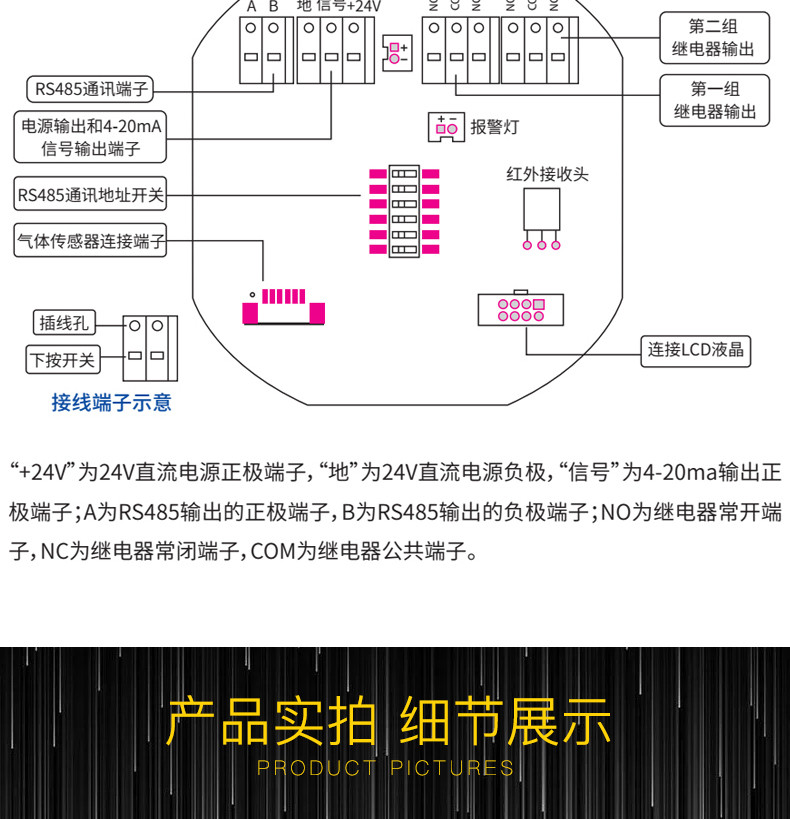

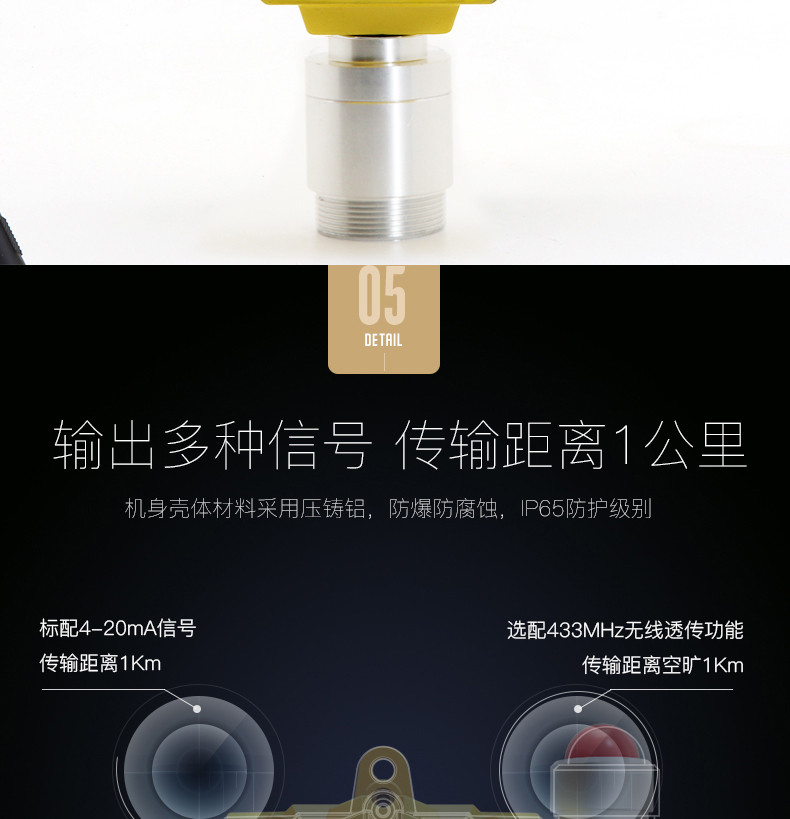

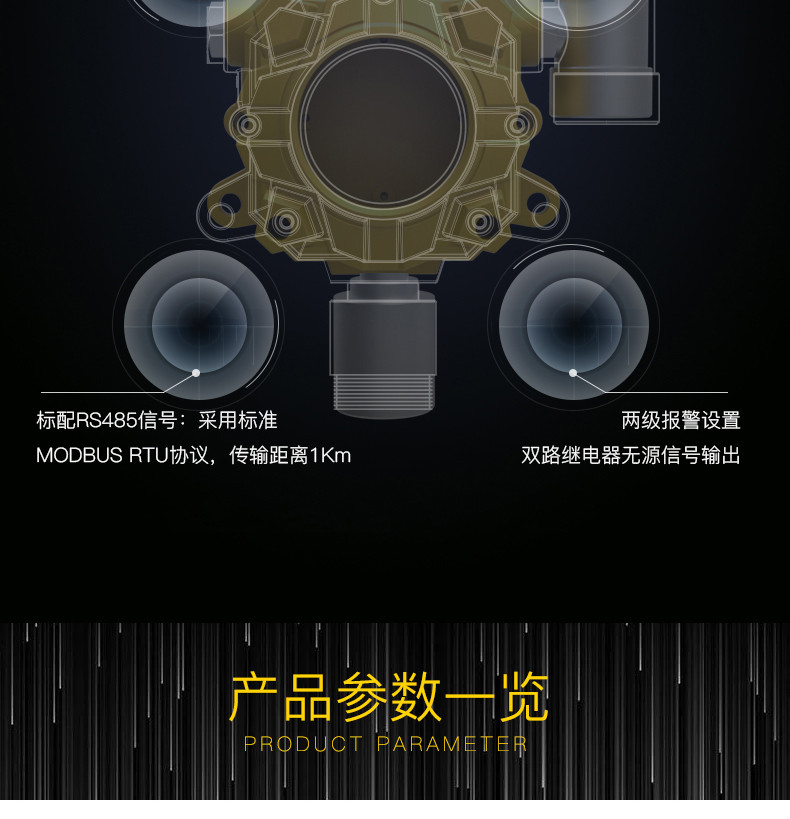

Transmission method	Standard 4-20mA; Standard RS485 Model: Standard MODBUS RTU Protocol: Optional 433MHz Wireless Transmission Function
Working Voltage	DC24V±15%
Detection Accuracy	≤±3%F.S
linearity error	≤±1%F.S
Response time	≤20s
Zero drift	≤±1%(F.S/年)
recovery time	≤20s
Explosion-proof sign	Exd II T6 GB
Explosion-proof Certificate number	CNEx16.0449
Protection class	IP65
Connectivity	M20x1.5、G1/2
Connection Cable	3X1.5mm2 Shielding Cable
Operating Pressure	86 ~ 106Kpa
relay	Two sets of relay outputs, touchpoint container: 30VDC 2A/220VAC 0.3A
Operating Temperature	-20~50℃
Operating Humidity	≤ 95% RH, no condensation

Bosean K-G60（NO） Stationary Gas Detector Packing list

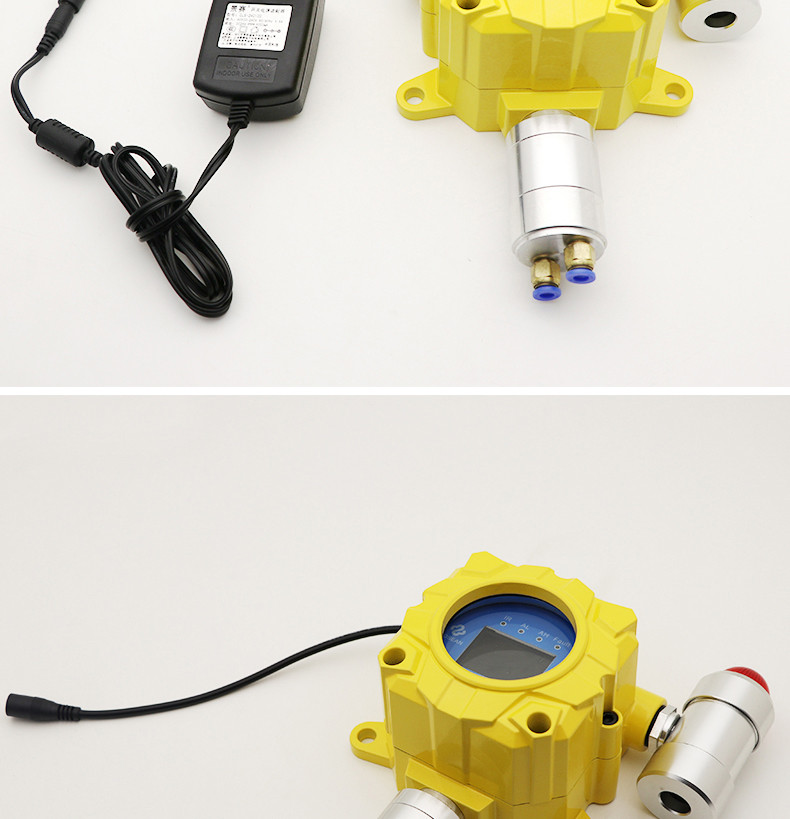

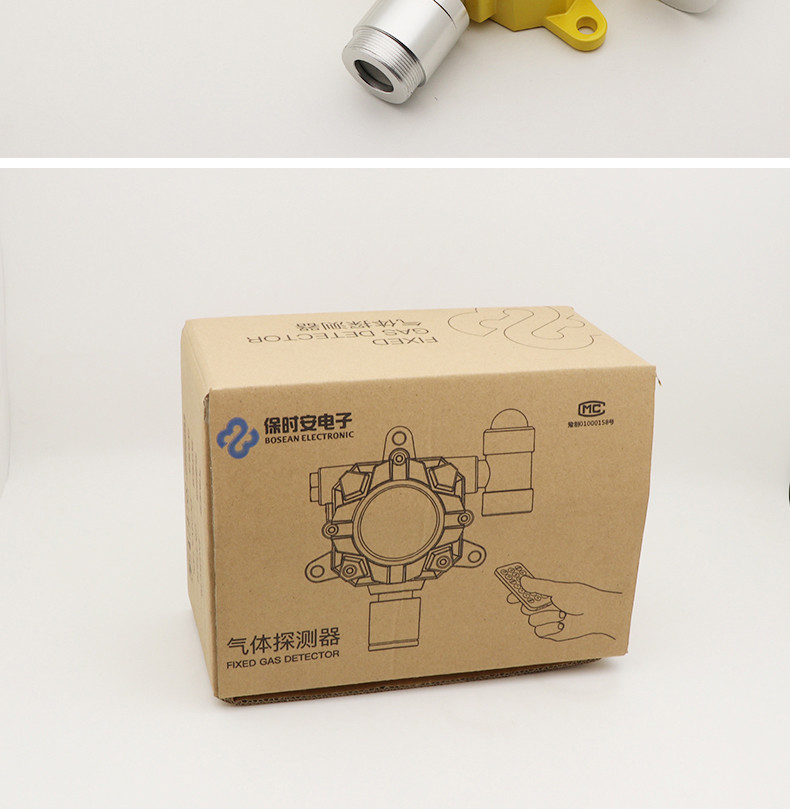

Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.

FAQ

[Q]

Is the price listed on the website the final cost for overseas purchases?

[A]

No, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.

[Q]

What is the specific process for purchasing the product?

[A]

First, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.

[Q]

What should I do if the instrument I purchase needs repair?

[A]

After-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
