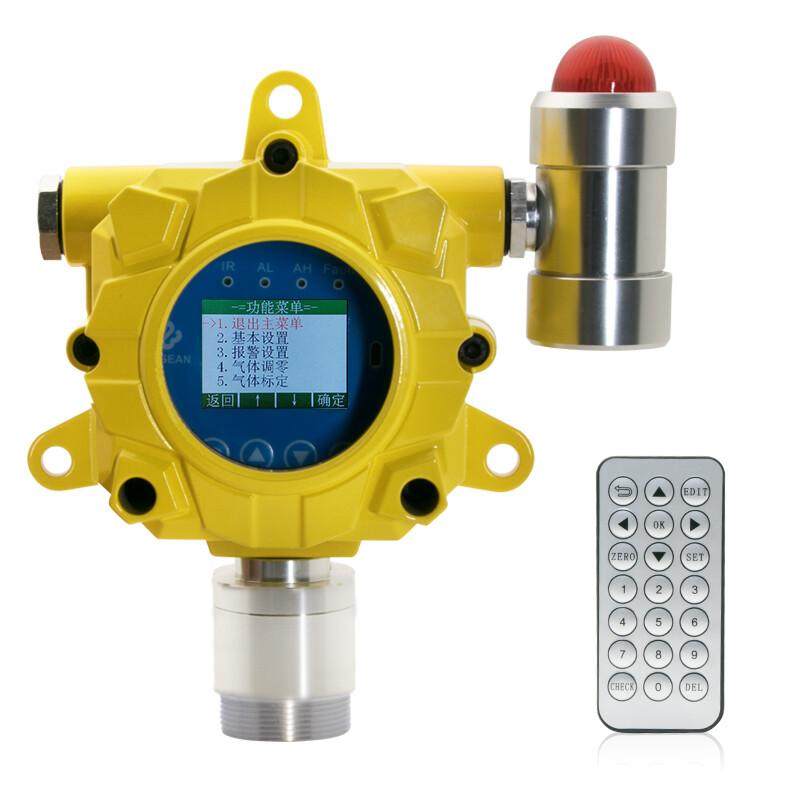

Bosean K-G60（NO2） Stationary Gas Detector

BOSEAN K-G60 (NO2) Industrial Nitrogen Dioxide Gas Alarm Detector

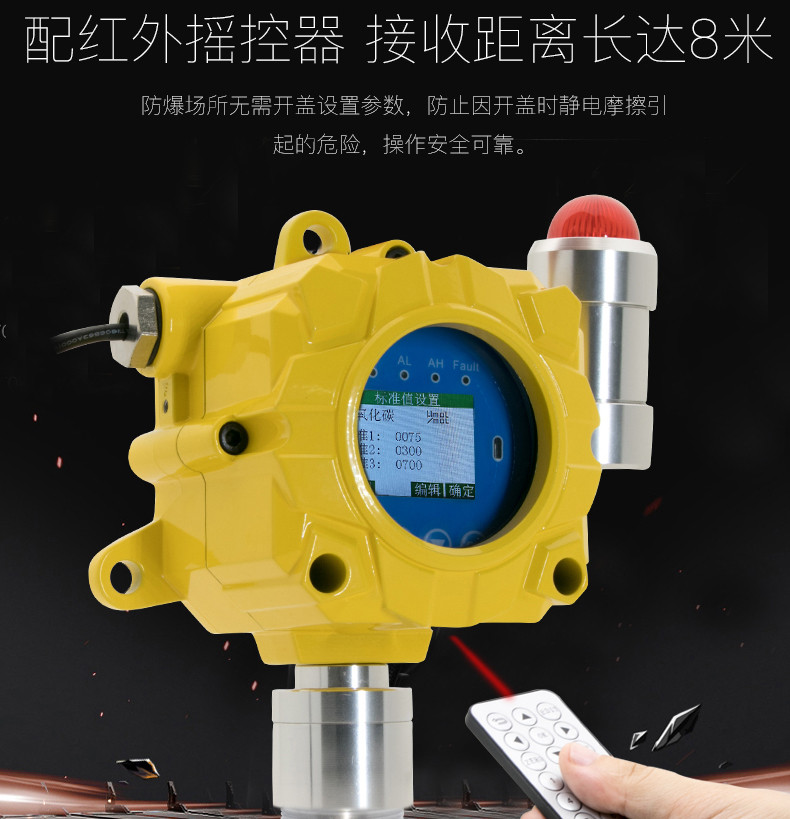

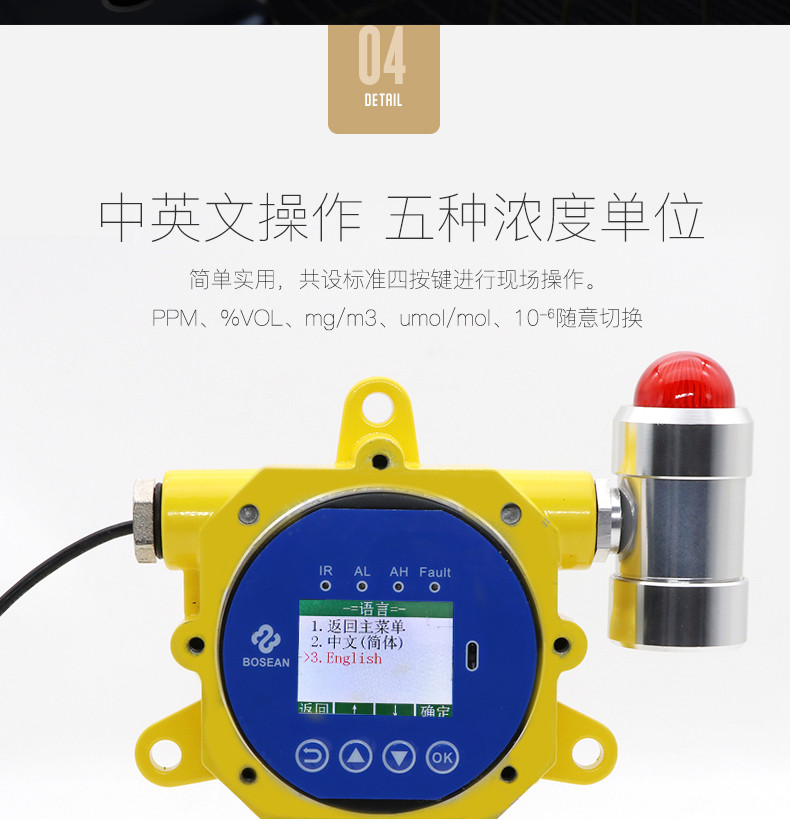

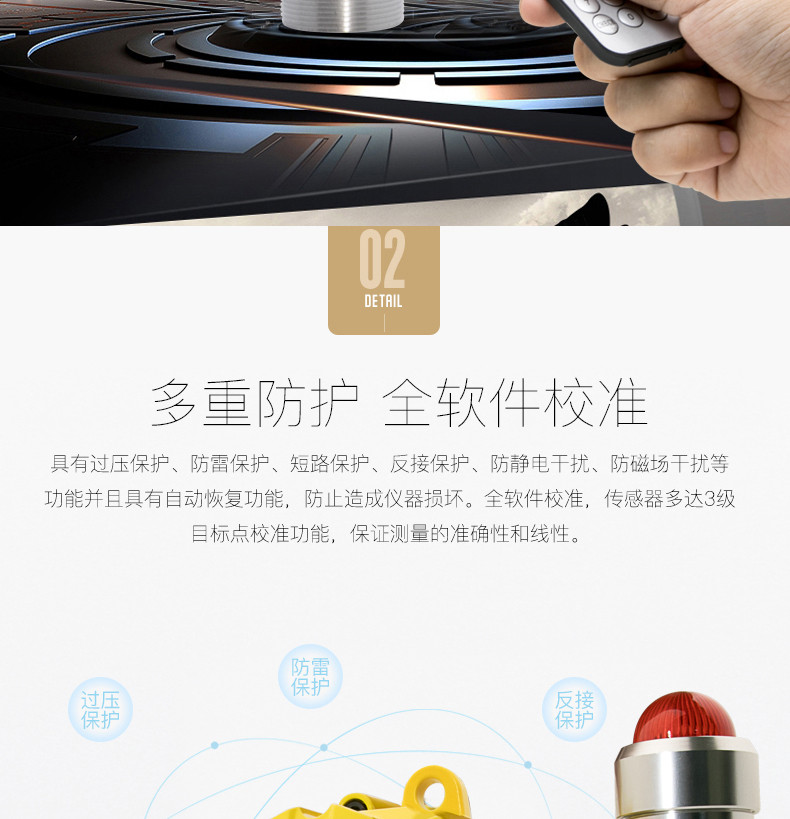

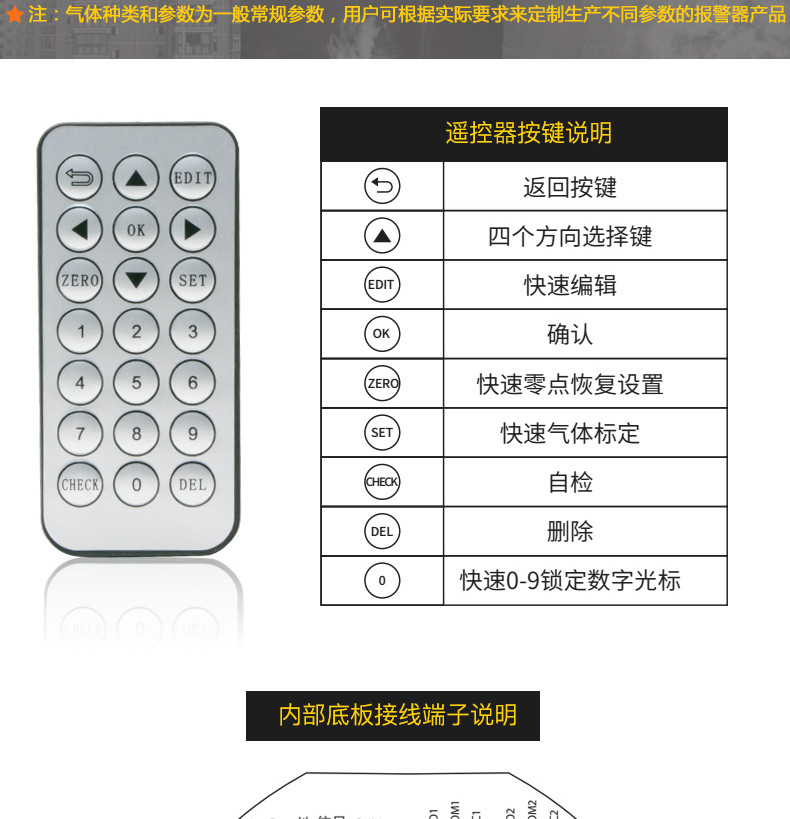

Fixed type, measuring combustible gas (NO2), range 0-20PPM, multi-parameter LCD digital display, full software calibrate, semiconductor nano-process, infrared remote control remote operation, up to 8 meters.

Brand

SKU: NB039803

Bosean

Model

K-G60（NO2）

Service

Bosean shopSE

Information

Datasheet

What else did others buy

Genuinegoods

Bosean K-G60（NO2） Stationary Gas DetectorOverview
Specifications
Comments
FAQs

K-G60（NO2）

Stationary Gas Detector

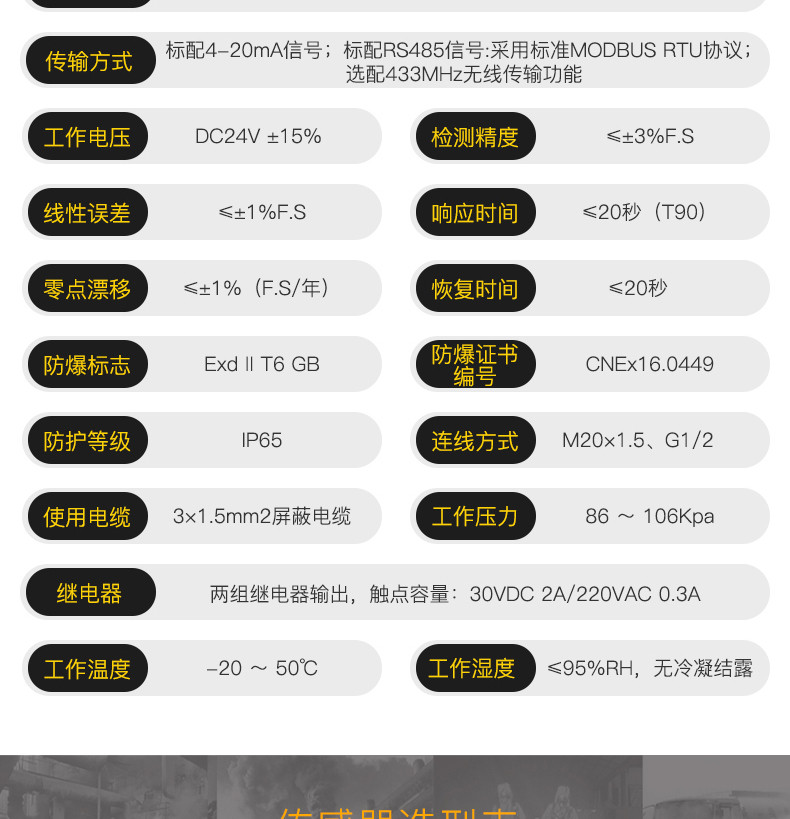

Bosean K-G60（NO2） Stationary Gas DetectorSpecifications

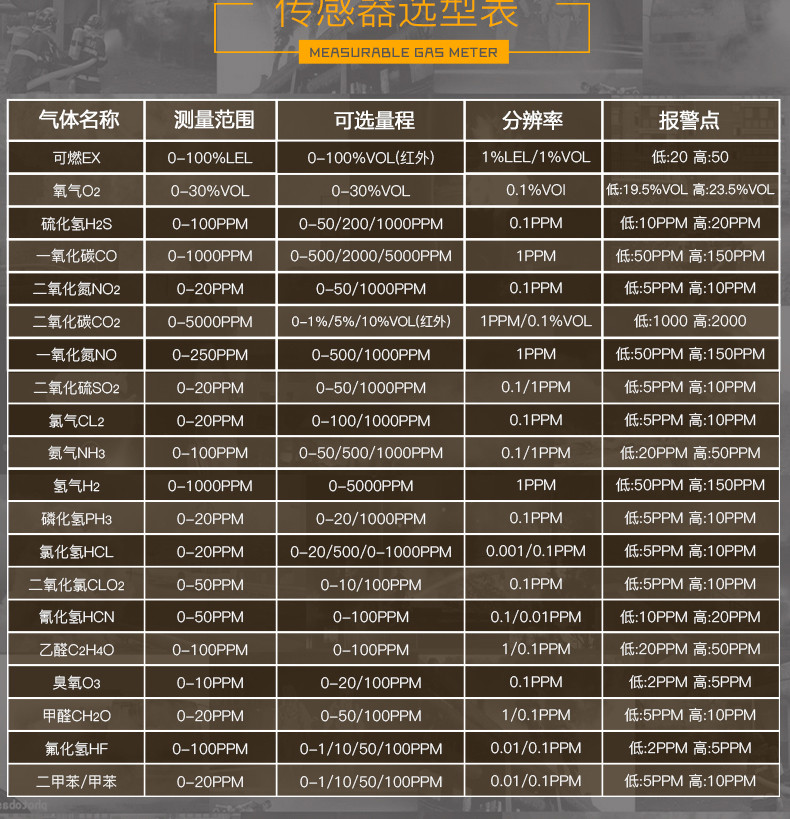

LIST	VALUE
Detection gas	Nitrogen dioxide NO2
range	0~50ppm
Optional range	0~20/100ppm
resolution	0.1PPM
alarm point	Low: 5PPM High: 10PPM
Sensors	Electrochemistry, Catalytic combustion, Semiconductor, PID Light Ion, Infrared Gas Sensors

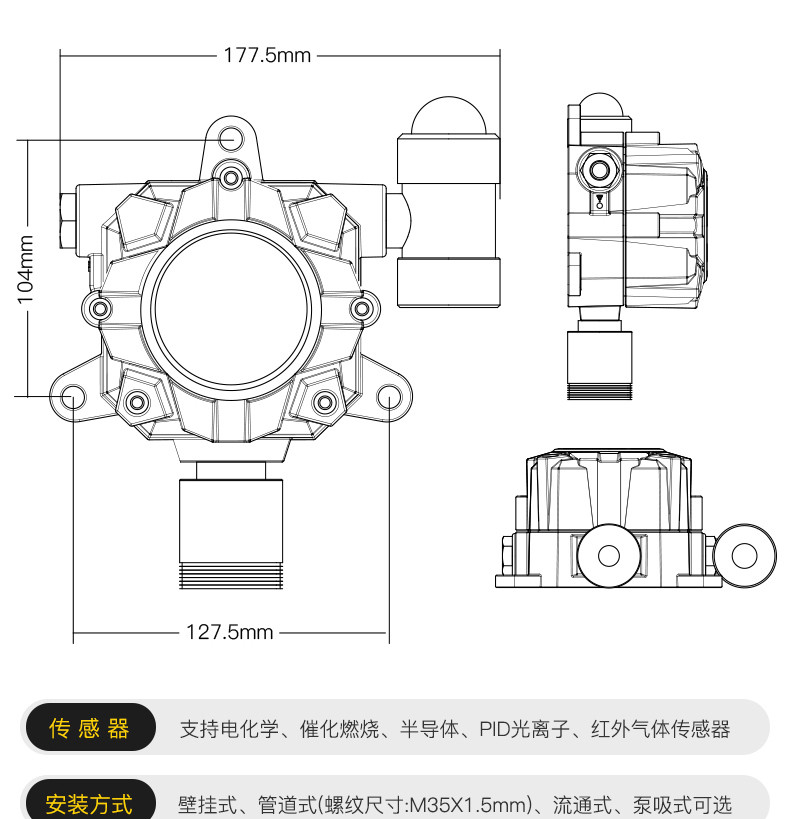

Installation method	Wall-mounted, pipeline type (thread size: M35X1.5mm), circulation type, pump suction type optional

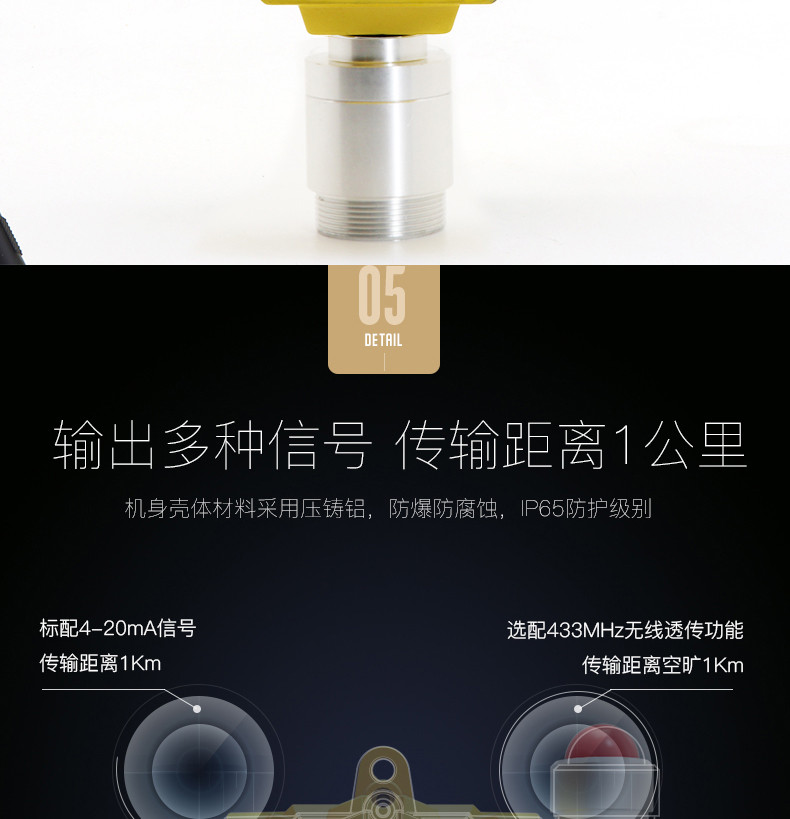

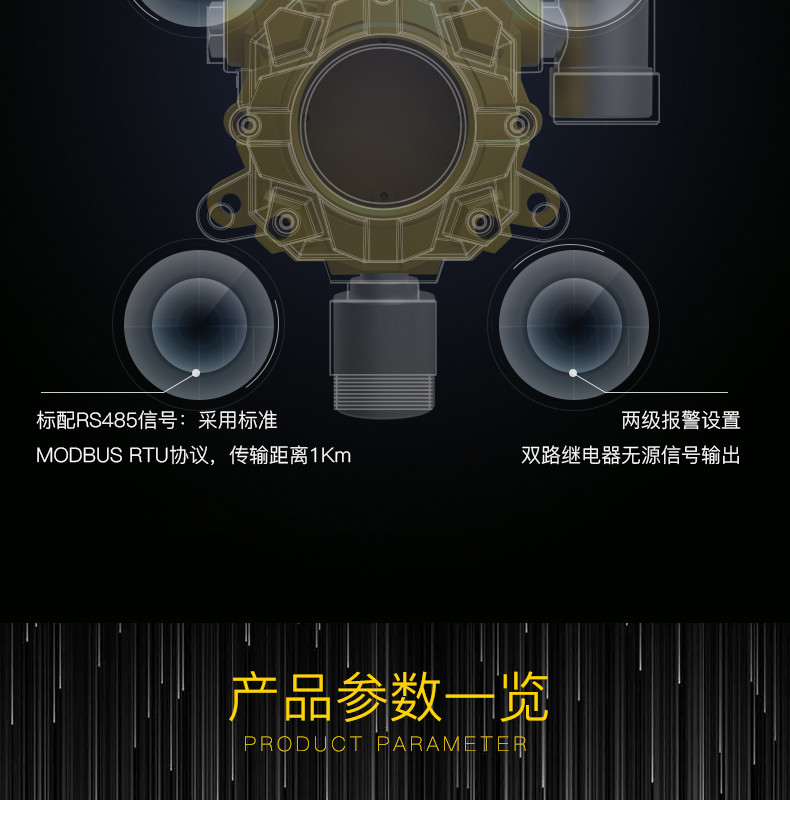

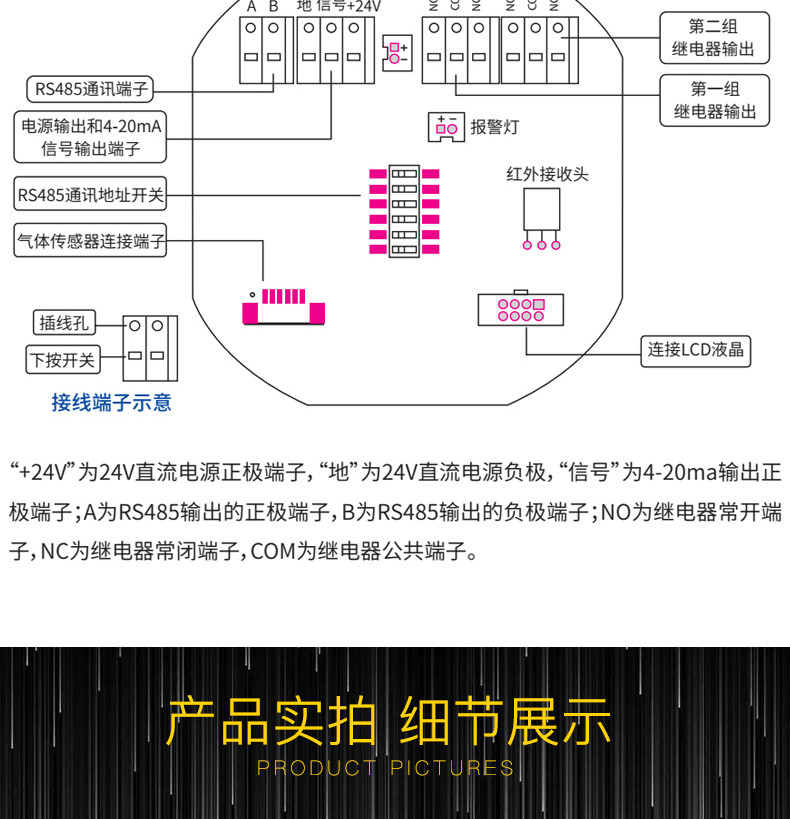

Transmission method	Standard 4-20mA; Standard RS485 Model: Standard MODBUS RTU Protocol: Optional 433MHz Wireless Transmission Function
Working Voltage	DC24V±15%
Detection Accuracy	≤±3%F.S
linearity error	≤±1%F.S
Response time	≤20s
Zero drift	≤±1%(F.S/年)
recovery time	≤20s
Explosion-proof sign	Exd II T6 GB
Explosion-proof Certificate number	CNEx16.0449
Protection class	IP65
Connectivity	M20x1.5、G1/2
Connection Cable	3X1.5mm2 Shielding Cable
Operating Pressure	86 ~ 106Kpa
relay	Two sets of relay outputs, touchpoint container: 30VDC 2A/220VAC 0.3A
Operating Temperature	-20~50℃
Operating Humidity	≤ 95% RH, no condensation

Bosean K-G60（NO2） Stationary Gas Detector Packing list

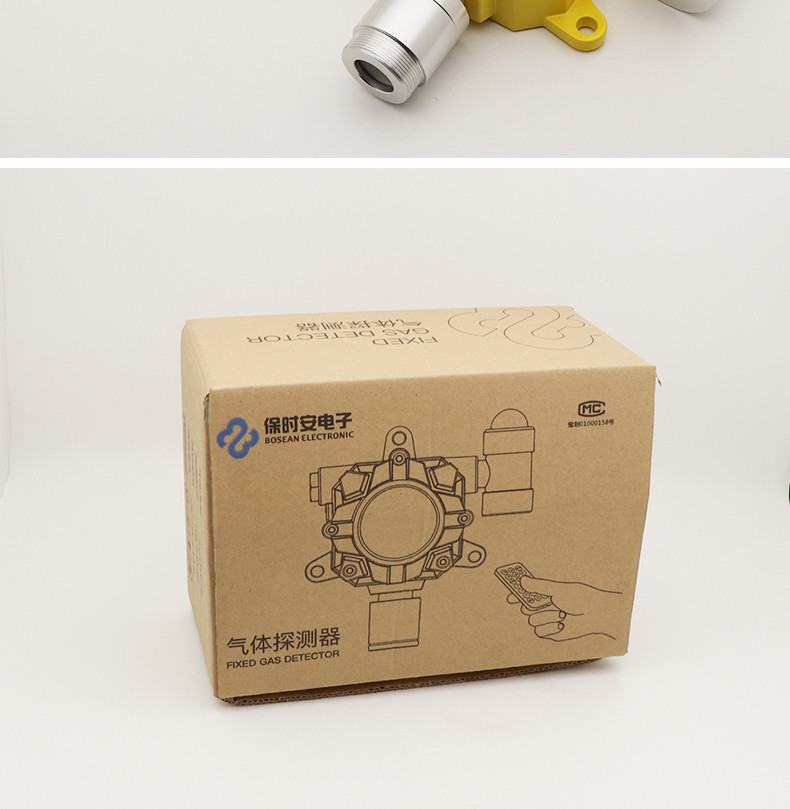

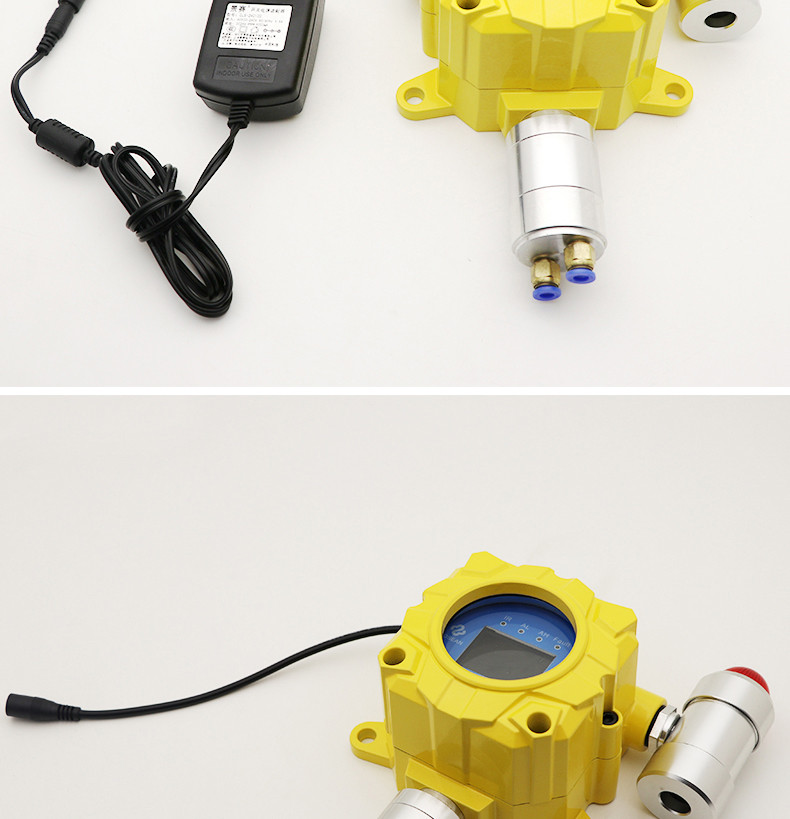

Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
