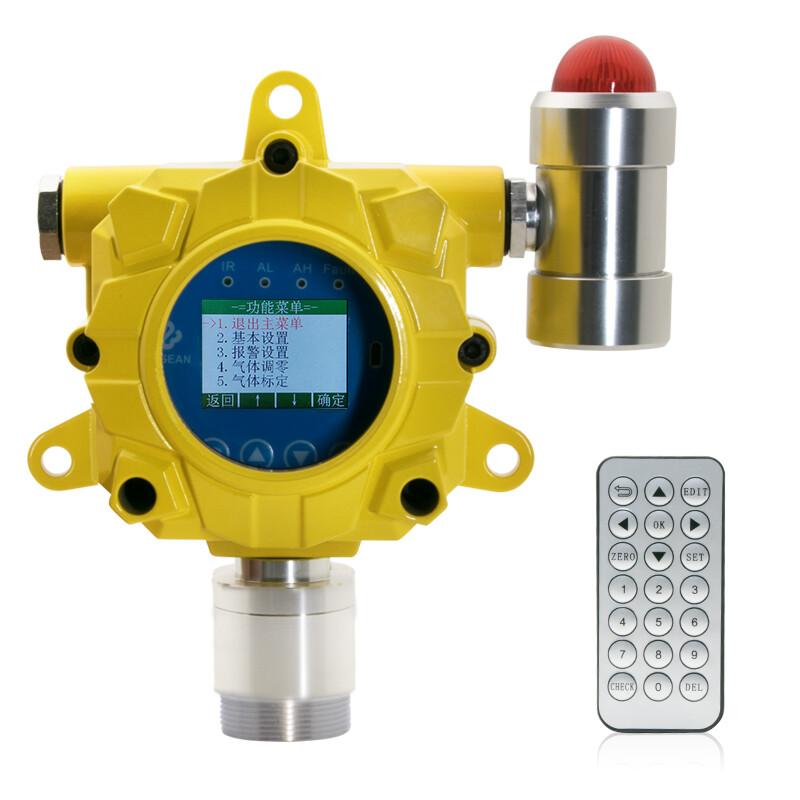

Bosean K-G60（PH3） Stationary Gas Detector

Baoshian K-G60 (PH3) industrial phosphating hydrogen gas alarm Detector

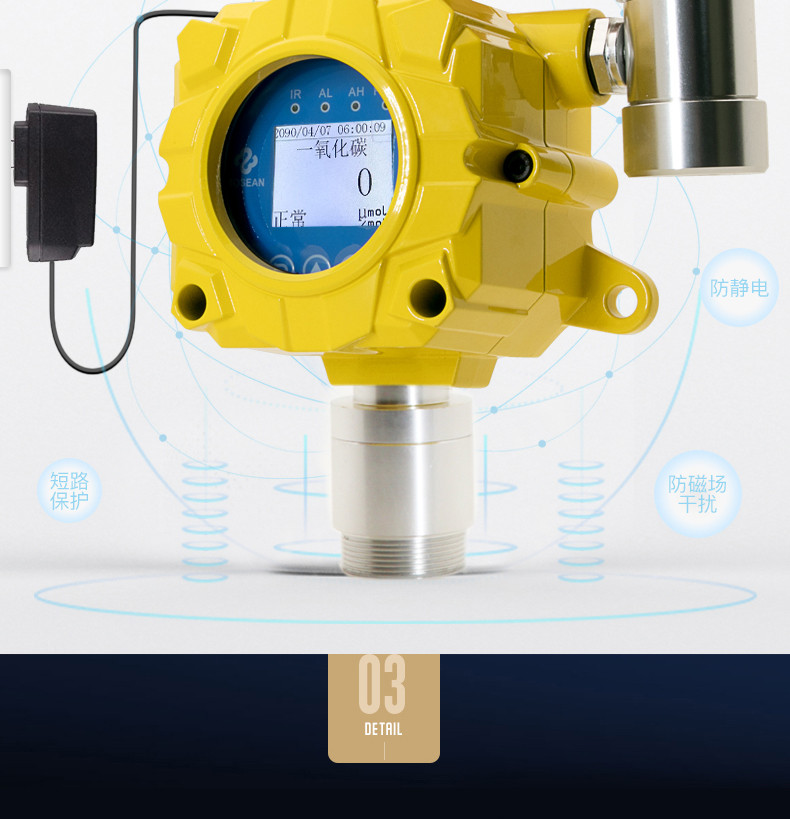

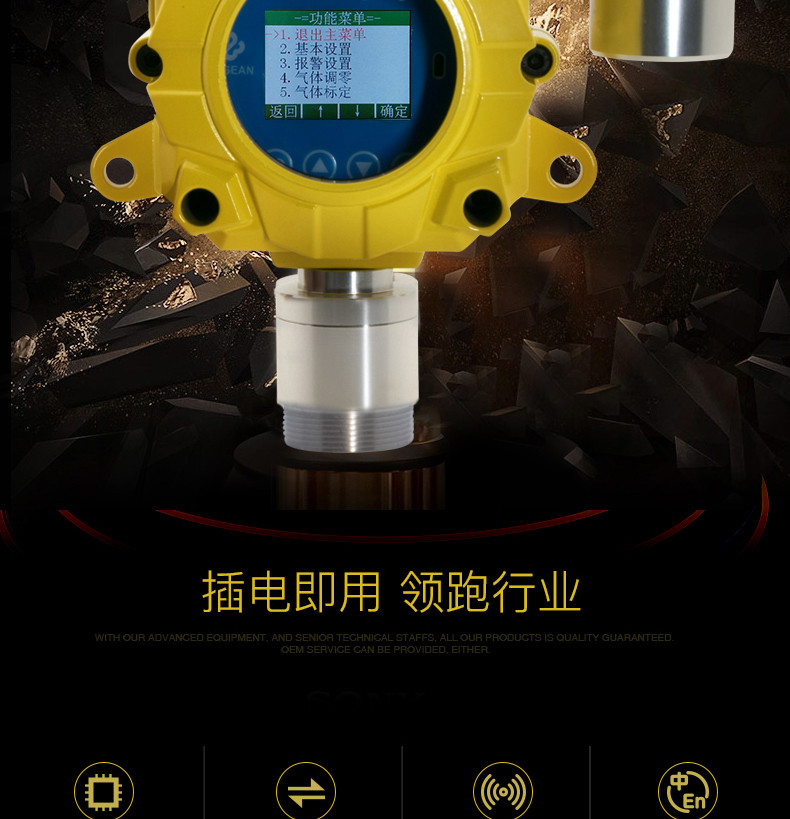

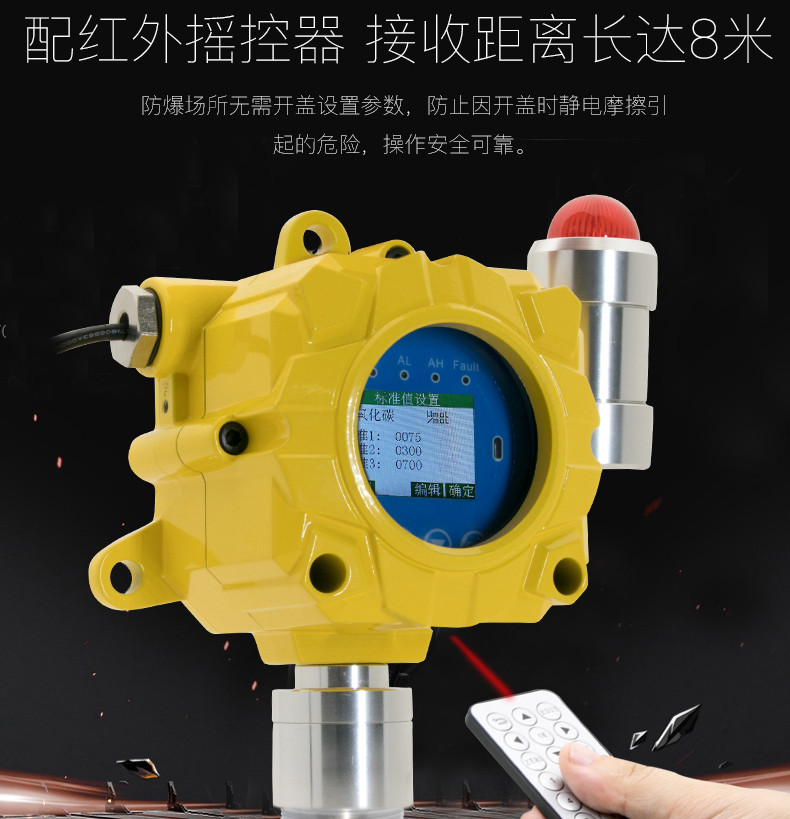

Fixed type, measuring combustible gas (PH3), range 0-20PPM, multi-parameter LCD digital display, full software calibrating, semiconductor nano-process, infrared remote control remote operation, up to 8 meters.

Brand

SKU: NB039805

Bosean

Model

K-G60（PH3）

Price

$ 338.00

Promotion

Service

The delivery and service By NBchao.Com

Get Quote

Bosean shopSE

Information

Datasheet RFQ Contract

What else did others buy

GUOYUGRA GY/VGD-200-H2S-G (0-10ppm) hydrogen sulfide Detector

$ 195.00
GUOYUGRA GY/VGD-200-CO-G (0-5000ppm) Carbon monoxide Detector (infrared)

$ 1563.00
Empaer AATL-SO2 (Pump Suction) Pathfinder Series Stationary Sulfur Dioxide Detector

$ 1011.00
GUOYUGRA GY/VGD-200-C6H7N-G (0-10ppm) aniline Detector

$ 879.00
GUOYUGRA GY/VGD-200-CO-G (0-1000ppm) Hydrogen Resistance, Carbon Monoxide Detector

$ 518.00

Genuinegoods

Bosean K-G60（PH3） Stationary Gas DetectorOverview
Specifications
Comments
FAQs

K-G60（PH3）

Stationary Gas Detector

Bosean K-G60（PH3） Stationary Gas DetectorSpecifications

LIST	VALUE
Detection gas	Phosphating hydrogen PH3
range	0~20ppm
Optional range	0~20/100ppm
resolution	0.1PPM
alarm point	Low: 5PPM High: 10PPM
Sensors	Electrochemistry, Catalytic combustion, Semiconductor, PID Light Ion, Infrared Gas Sensors

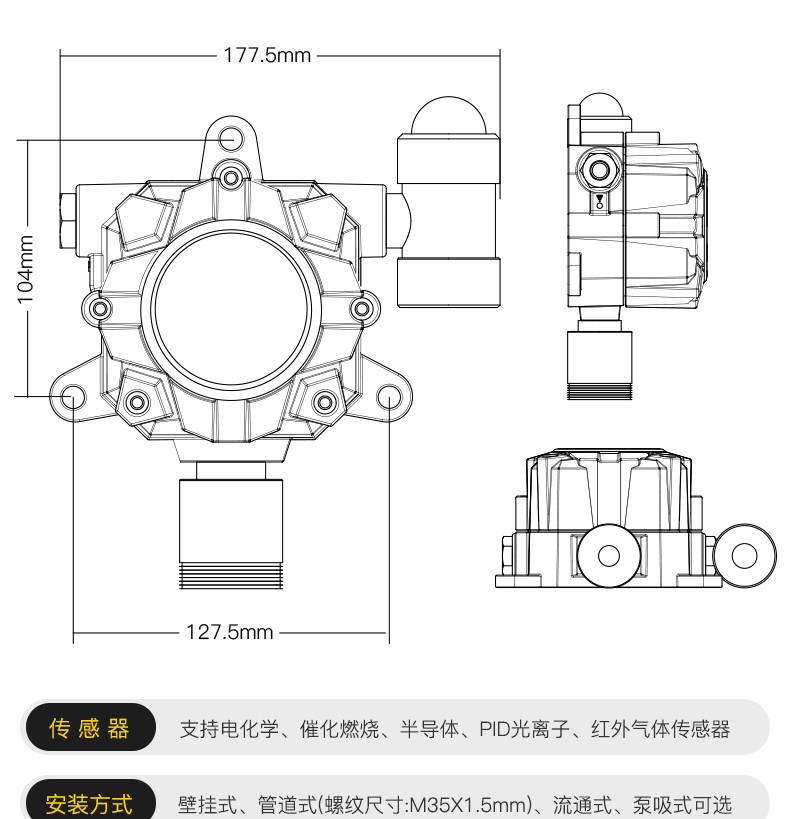

Installation method	Wall-mounted, pipeline type (thread size: M35X1.5mm), circulation type, pump suction type optional

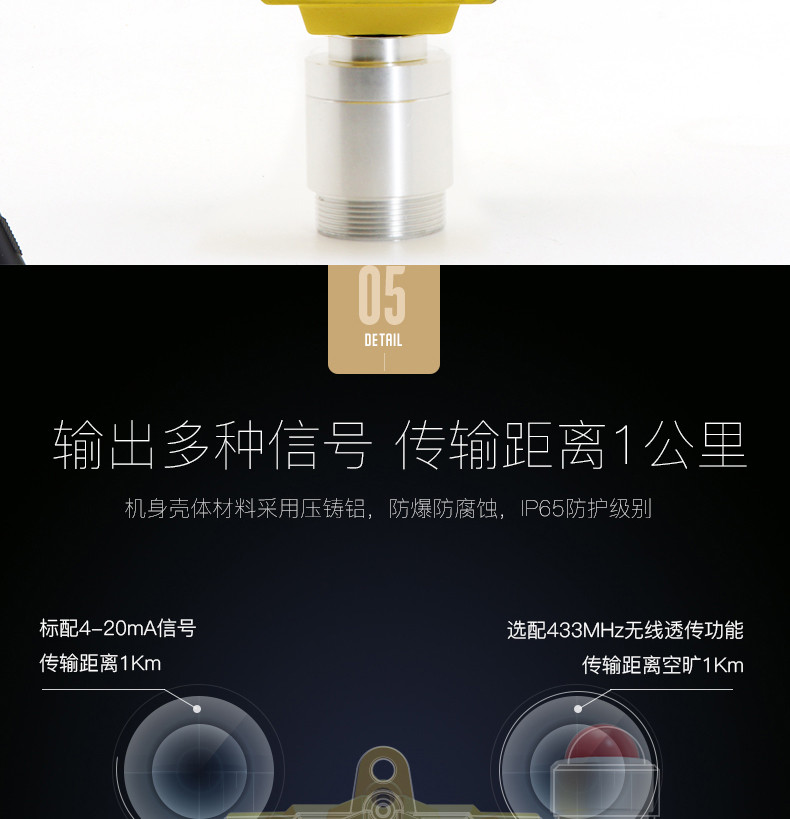

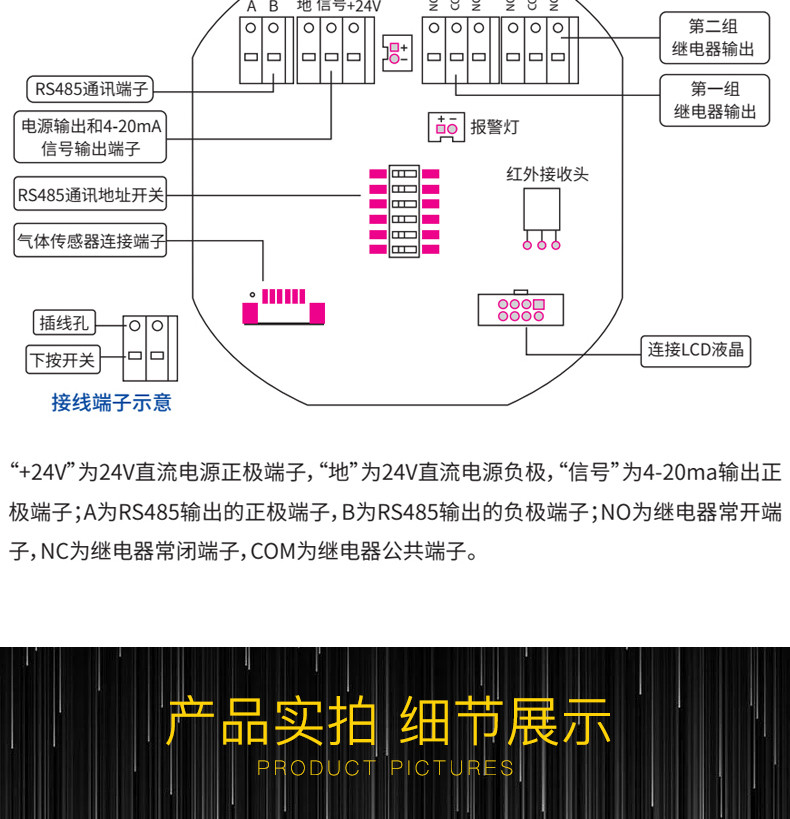

Transmission method	Standard 4-20mA; Standard RS485 Model: Standard MODBUS RTU Protocol: Optional 433MHz Wireless Transmission Function
Working Voltage	DC24V±15%
Detection Accuracy	≤±3%F.S
linearity error	≤±1%F.S
Response time	≤20s
Zero drift	≤±1%(F.S/年)
recovery time	≤20s
Explosion-proof sign	Exd II T6 GB
Explosion-proof Certificate number	CNEx16.0449
Protection class	IP65
Connectivity	M20x1.5、G1/2
Connection Cable	3X1.5mm2 Shielding Cable
Operating Pressure	86 ~ 106Kpa
relay	Two sets of relay outputs, touchpoint container: 30VDC 2A/220VAC 0.3A
Operating Temperature	-20~50℃
Operating Humidity	≤ 95% RH, no condensation

Bosean K-G60（PH3） Stationary Gas Detector Packing list

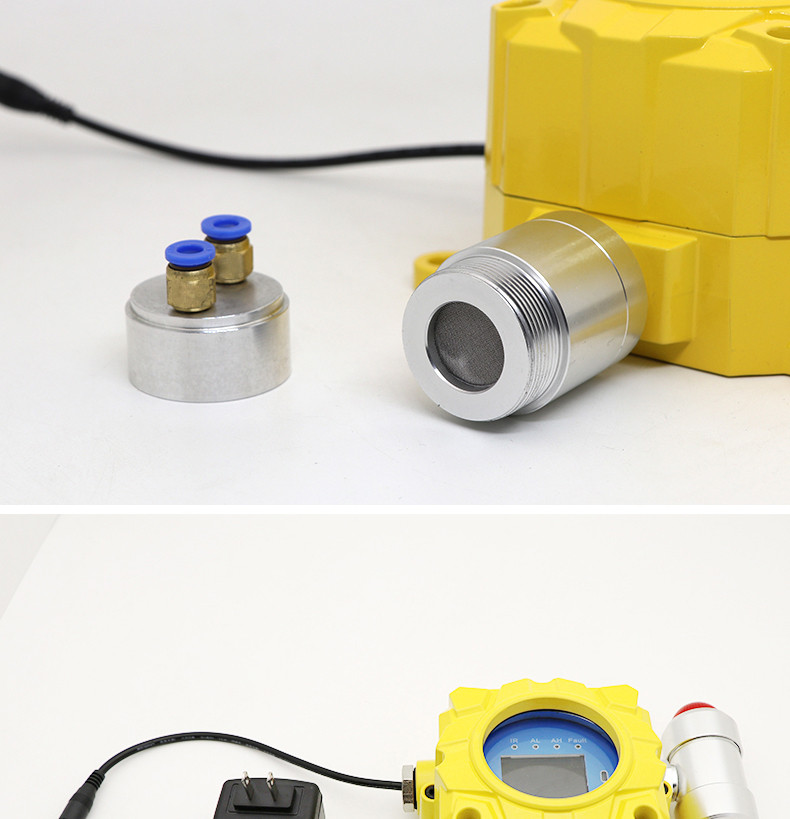

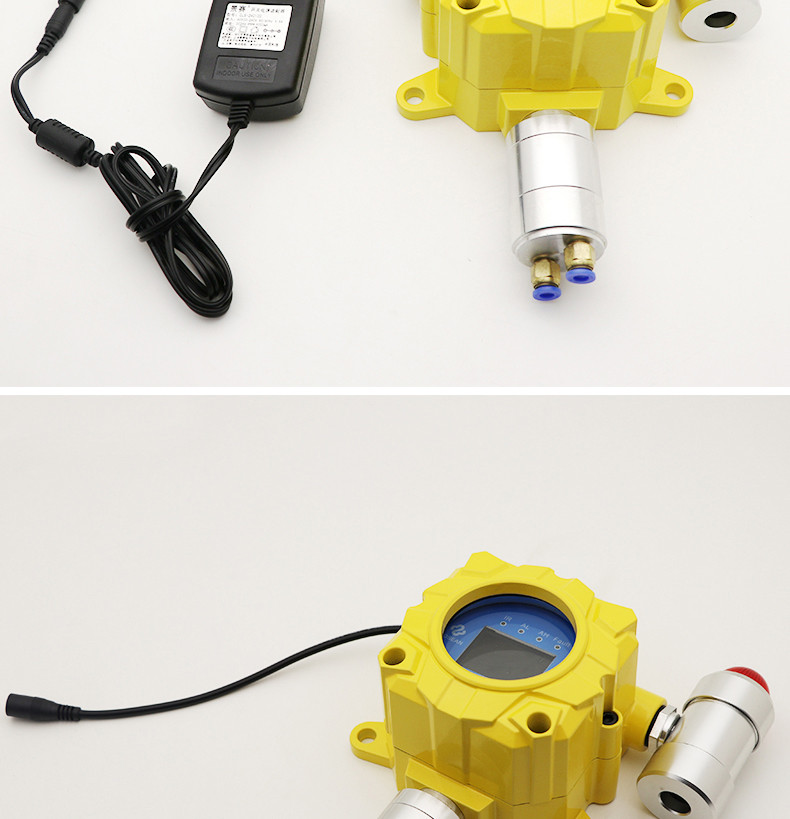

Complete-built unit X1, Encasement box X1, Charger X1, Calibration cover X1, Manual X1, Certificate X1, Warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
