TQC VF2051 inks Viscosity Cup No. 8 ISO cup with VF2061 bracket

Introduction to Viscosity Cups

TQC desktop Viscosity Cup has VF2048, VF2049, VF2050, VF2051, VF2183 five models, all of which are made of titanium anodized aluminum, and are in line with the relevant provisions of ISO2431 international standards, there are 3mm, 4mm, 5mm, 6mm, 8mm five filter diameters, the viscosity range of the test is different, and the viscosity value test of the viscosity range of 7~2000cst can be realized. The filter section of the TQC benchtop Viscosity Cup has a small protrusion.

Originally designed for rapid viscosity and consistency assessment of products that conform to or are close to Newtonian mechanical properties, TQC benchtop Viscosity Cup aluminum provides a high degree of accuracy and repeatability based on production quality. The TQC benchtop Viscosity Cup provides outstanding test quality. These viscous cups are produced from selected high-grade materials, using the latest computerized machining technology, and under strict quality control conditions. The smooth, bright surface decoration makes the product easy to use and clean, guaranteeing a long working life.

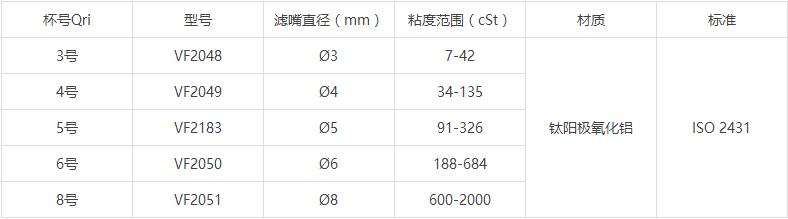

Viscosity cup series parameters

Introduction to the stent

The tripod of the TQC VF2061 viscometer holder has a built-in level, and the balance can be adjusted freely through the level, and the size can be adjusted by using a telescopic stand. The VF2061 viscometer holder is made of stainless steel and the bottom foot ring is made of polyvinyl chloride.

The VF2061 viscometer fits all DIN, ISO and ASTM viscometers.

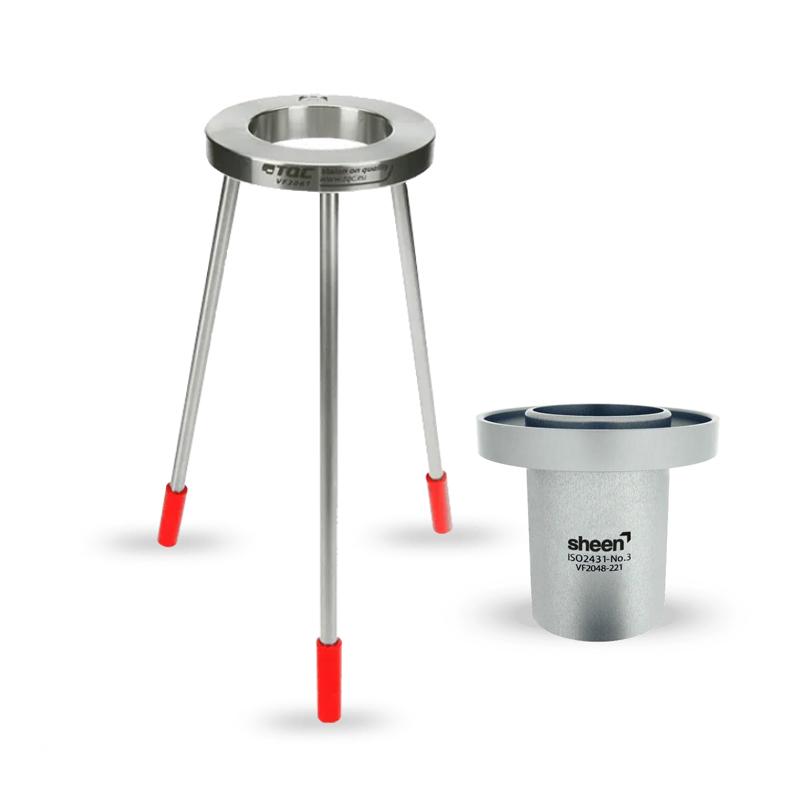

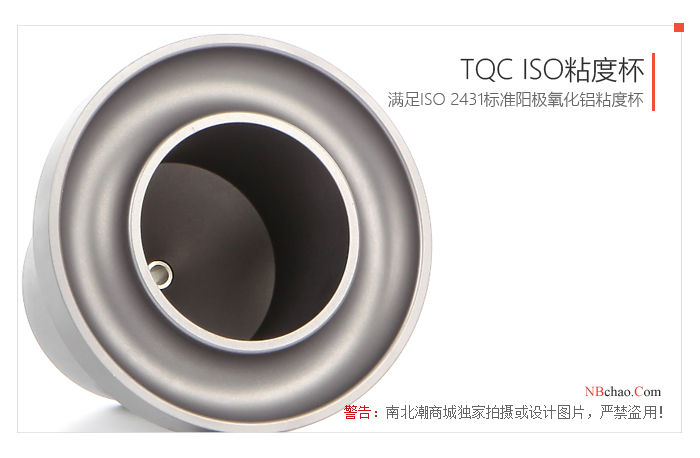

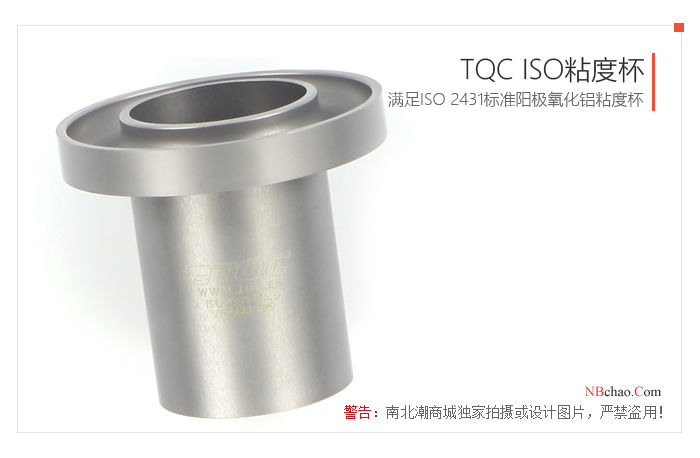

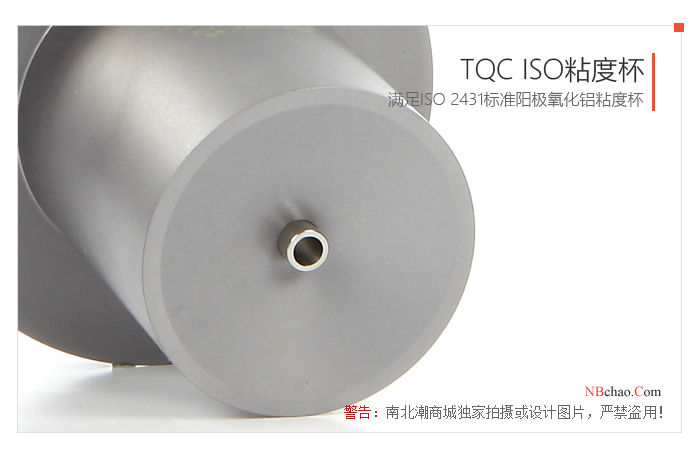

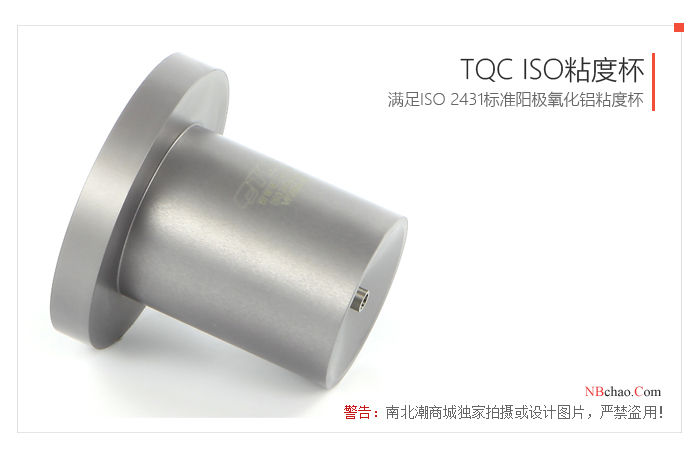

Actual picture of the product

Viscosity cup x1, bracket X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
