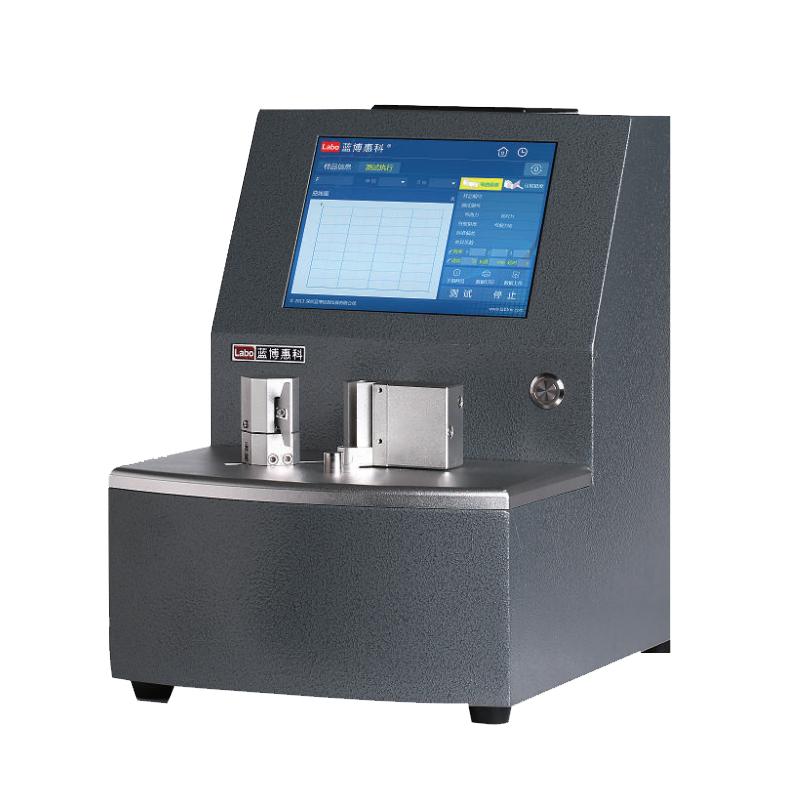

LABO 17071 Stiffness meter indentation Stiffness meter

Introduction

17071 is used to test the bending resistance of materials, is a materialThe determination of an elastic performance index of the material is easy to useQuickly, the instrument clamps the specimen and automatically rotates the specimen clamp to make itAfter bending to a certain angle, the force value (in mN, g) is recorded,At the same time, the bending stiffness (in mN-m) is calculated and testedIt automatically returns to the initial measurement position and prepares for the next measurementTry.

This instrument can test crease force and bending stiffness.

Features

• Imported high-precision load cell, the accuracy is controlled at <0.5%;

• The bending length is adjustable from 1~50mm, and the angle of 090° can be set arbitrarily, making the test faster and more accurate；

• 8-inch touch screen Chinese display, friendly man-machine interface operation；

• Automatic clamping of the specimen (photoelectric induction, pneumatic clamping), fully automatic completion of the test；

• It has the function of statistical processing of test data, printout of test report, measurement average, maximum, minimum value and each test value, which is convenient for technology；

• Experimenters quickly make statistics and compile test reports

• The calibration program is specially set up inside the instrument, which is convenient for the measurement and calibration department (third party) to calibrate the instrument. For calibration, standard weights can be usedcode or force measuring device to calibrate the accuracy of the indication value.

Description of the experiment

Bending stiffness: Evenly cut the specimen from the sample with a sampling device, clamp one end of the specimen in the specimen clamp, and bend it at an angle of 15° to one side (orother angles) to record the force value, and measure 10 valid data on the front and back sides.

Crease force: use special sampling equipment to evenly cut the sample from the sample, clamp one end of the sample in the sample clamp, and bend it at an angle of 90° to one side.Hold for 15 seconds to record the force value.

Applicable Standards

Flexural stiffness: GBT23144-2008 ISO2493 ISO5628 TAPPIT556 DIN53121 SCAN P29

Stiffness: BS6965 BS3748

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
