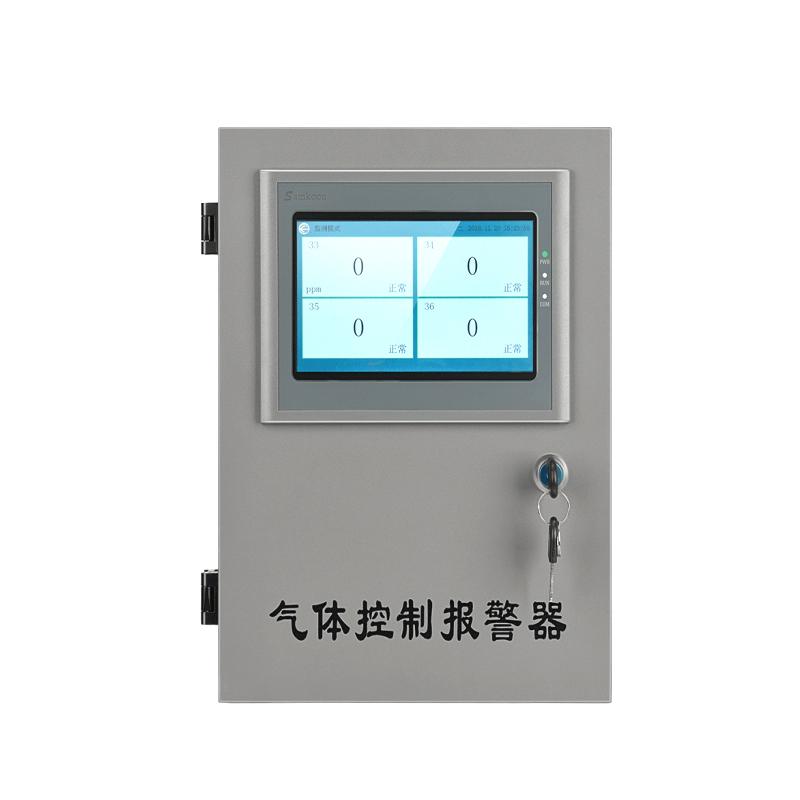

SK-6500-48 Industrial touch screen host controller 48-channel gas alarm

Introduction

This management host uses a 7-inch, 260,000 true-color display, four-wire resistive touch panel, accurate touch accuracy, durability, and long touch life. It is also equipped with a high-performance Cortex M4 processor with a main frequency of up to 180MHz. The data storage mode is U disk storage, which stores a large amount of data and provides convenience for later data analysis.

Special feature

1. Password login to prevent misuse by irrelevant personnel;

2. The channel can be set freely, which is convenient for users to configure flexibly;

3. U disk storage of historical data;

4. History alarm U disk storage;

5. The time interval of historical data recording can be set;

6. Free setting of 4 alarm modes;

7. Time display and setting;

8. Simultaneously support up to 32 channels of 485 devices + 16 channels of 4-20mA devices;

9. The default 4-way passive dry node output, can be equipped with relay expansion modules and so on according to user needs.

Host Dimensions

Internal Circuit Structure Diagram

1) U disk interface, used to store historical data and historical alarm information.

2) RS485-2 interface, as an external DCS or PLC to read the RS485 slave interface of the local monitoring data, as a slave, the address of the slave can be modified in the "system settings";

3) RS485-1 interface, as the host interface for reading the real-time concentration value of the Detector;

4) The relay output is a passive dry node. The default number corresponds to 33, 34, 35 and 36 in the "Relay Number" in the "Slave Settings" from left to right, and then the total low-report output from 33 to 36, and a total high report output of 33 to 36;

5) 4-way 4-20mA input interface, three-wire connection method, the corresponding "slave number" is 33, 34, 35 and 36 from left to right, and the definition of each 3-core interface is 24V- from left to right , current input and 24V+.

6) External terminal block, including one 24V power supply and RS485-1 interface, which is used to supply power to the external Detector and read the data of the external Detector through the RS485 interface;

7) 24V/2A AC220V to DC24V switching power supply to supply power for the entire system;

8) Built-in alarm buzzer, after enabling "Alarm Sound" in "System Settings", when a slave alarm occurs, it will drive the buzzer to send out a fire alarm.

host X1, certificate X1, manual X1, key X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
