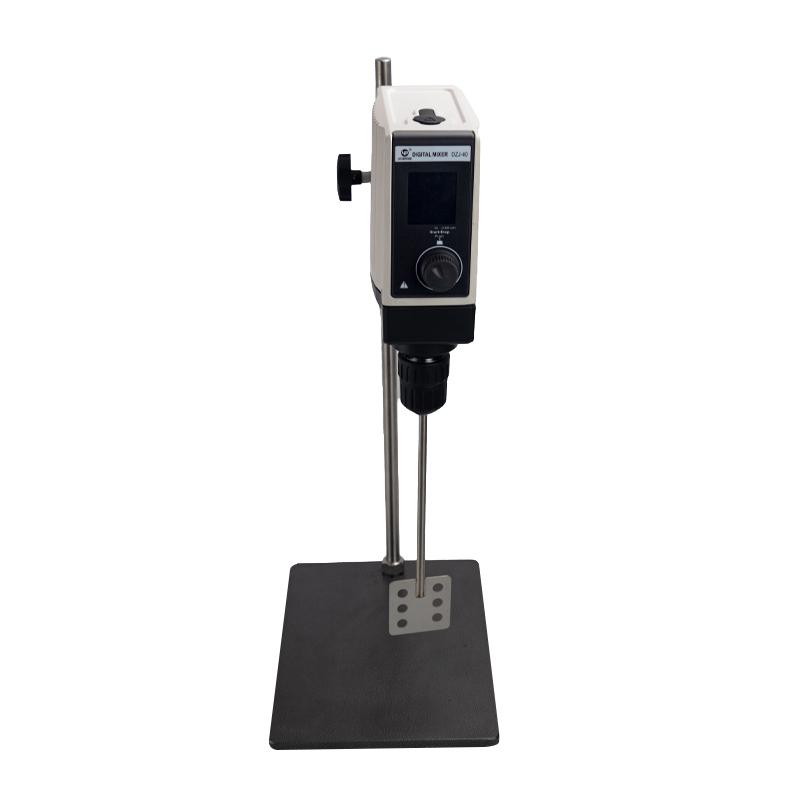

YUEPING DZJ-40 Digital Display Overhead Electric Stirrer
Speed range 0/30-2000rpm, Rotation speed display LED seven zones, Stirring Processing capacity 25L, Max. Viscosity 30000mPas, Input Power 150W, Line Control Method Stepless, Max. Torque 40Ncm
YuePing
DZJ-40
-
HUXI JB90-SH Digital display constant speed powerbasic stirrer Centrifugal Impeller pulp 90mm Rod length 400mm
$ 389.00 -
HUXI RWD100 LCD Overhead Stirrer, Three Blades Impeller Slurry 70mm Rod Length 300mm
$ 665.00 -
HUXI JB90-SH digital powerbasic stirrer Centrifugal Impeller blade 90mm Rod length 350mm
$ 388.00 -
CHIJIU D2004W digital Overhead Stirrer digital display Stir power 40W
$ 253.00 -
DADI DJ1C-60 powerbasic stirrer 60W
$ 119.00
Introduction
This mixer uses a brushless DC motor and operates silently. It is suitable for conventional mixing and has a processing capacity of up to 25L of water. The speed range is 0/30-2000rpm, and the speed is automatically adjusted through microprocessor control technology. The safety loop design ensures that the equipment can automatically stop running when the motor is stalled or overloaded. Continuously compares the actual speed of the stirring shaft with the set speed, and automatically adjusts the speed deviation. This ensures that the rotational speed remains constant during the experiment, even when the viscosity of the sample changes.
Features
Digital display speed stepless speed regulation
Penetrating stirring paddle
Overload protection
Short-term overload operation
Compact and novel appearance, silent operation

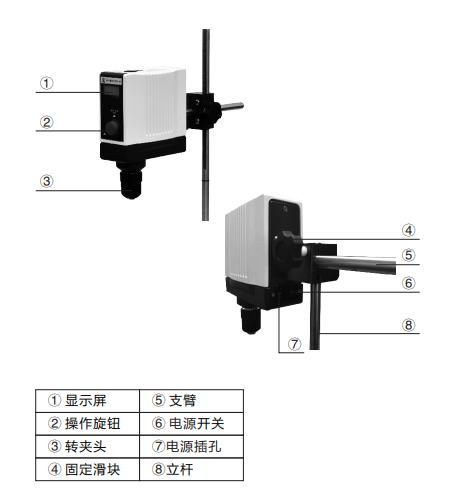

Product Structure
YuePing DZJ-40 Digital Overhead Electric StirrerSpecifications
| LIST | VALUE |
|---|---|
| Speed range | 0/30-2000rpm |
| Rotation speed display | LED seven zones |
| Processing Capacity | 25L |
| maximum viscosity | 30000mPas |
| Input Power | 150W |
| output power | 105W |
| Speed regulation mode | stepless |
| Max Torque | 40Ncm |
| drive type | Brushless DC motor |
| Maximum output power of mixing shaft | 105 W |
| Permissible continuous running time | long continuous |
| Rotation speed control Accuracy | 1±rpm |
| Speed measurement deviation at n > 300rpm | 1±% |
| Speed measurement deviation at n < 300rpm | 3±rpm |
| Impeller fixing method | Collet |
| Rotary collet clamping range | 0.5~10mm |
| Hollow shaft, inner diameter | 11mm |
| Hollow shaft (stop state, can be inserted) | Yes |
| bracket fixing | Extension arm chuck fixed |
| Extension arm diameter | 16mm |
| Extend arm length | 230mm |
| Speed control | electronic |
| Rated torque | 0.4Nm |
| Shell material | Cast aluminum coating/thermal plasticity polymer |
| Weight | 3kg |
| Ambient Temperature | 5-40 ℃ |
| Allowable Relative Humidity | 80% |
| DIN EN 60529 Protection method | IP42 |
| Power | 230/115/100V |
| Rated Frequency | 50/60Hz |
| Input Power | 150W |
YuePing DZJ-40 Digital Overhead Electric Stirrer Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
