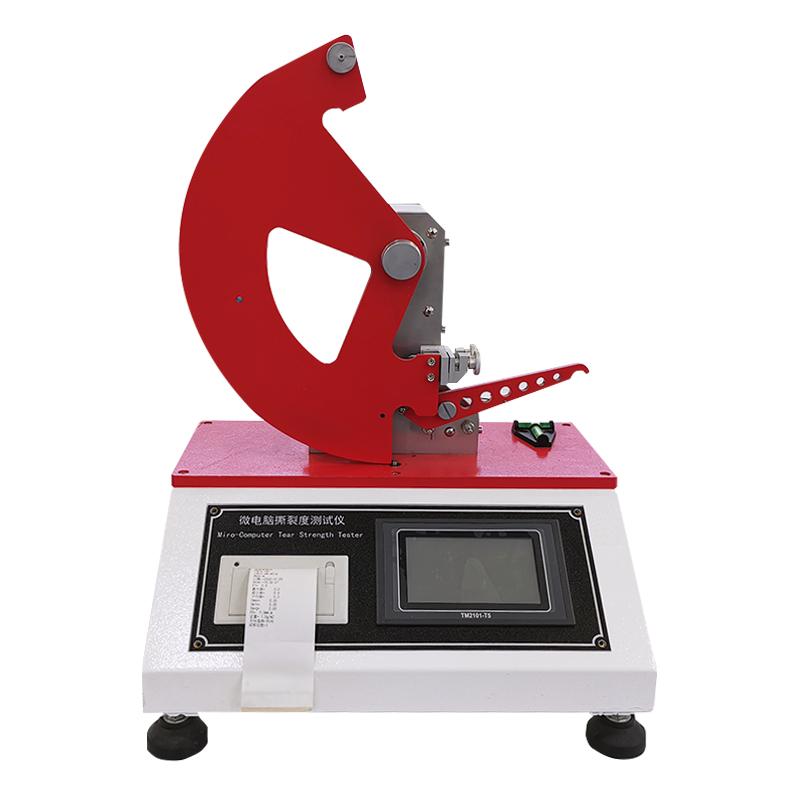

CHINA NBC-SLD16000 Microcomputer Tear Tester
HuiTai
NBC-SLD16000
Scope of application
Film, sheet, soft polyvinyl chloride, polyvinylidene chloride (PVDC), waterproofing membrane, woven material, polyolefin, polyester, paper, cardboard, textiles and non-woven fabrics and other wrappers with a tear degree of less than 16000mN and a low quantitative paperboard tear strength test within the scope of the instrument.
Test principle
The energy expended to tear the specimen by the pendulum is measured. Measure the potential energy converted into kinetic energy when the pendulum is drawn, tear the clamped paper, and calculate the tearing force required to tear the paper with the energy consumed during the tearing process.
HuiTai NBC-SLD16000 Microcomputer tearing TesterSpecifications
| LIST | VALUE |
|---|---|
| tearing initial angle | 27.5±0.5° |
| Tear arm | 104±1mm |
| tear distance | 43±0.5mm |
| Paper surface size | 25*15mm |
| Specimen size | 50*63mm |
| Distance between clamps | 2.8±0.3mm |
| Human Machine Interface | 3.2In 320 * 240 dot matrix LCD display, real-time display of test data |
| communication output | Configurable Rs232 (optional according to customer needs, software purchased separately) |
| printout | modular integrated thermal printer |
| Operating Conditions | (0~35) ℃, Humidity < 85% |
| Dimensions | 400*320*600mm |
| Weight | 24kg |
HuiTai NBC-SLD16000 Microcomputer tearing Tester Packing list
machine X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
