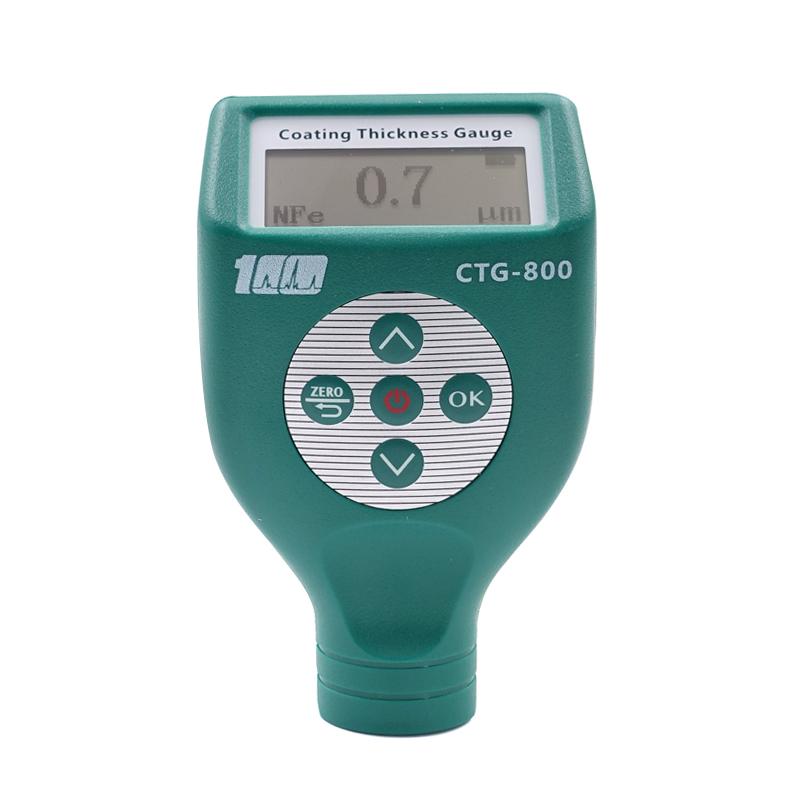

CHINA CTG-800-1500F Paint Thickness Gauge, Integrated Iron-based Standard Type

Introduction

CTG-800-1500F Coating Thickness Gauge is based on the principle of magnetic induction thickness measurement, which can quickly, without damage, and accurately measure the thickness of coating and coating. It can be used in both laboratory and engineering site. This instrument can be widely used in the detection fields of automobile industry, manufacturing industry, metal processing industry, chemical industry, commodity inspection and so on. It is the instrument required by the material protection profession.

CTG-800-1500F coating Thickness Gauge has backlight, large-screen digital display, single-point and multi-point calibration and other functions, and this product is resistant to high-low temperature, anti-drop, probe wear-resistant (more than 500,000 times), and test stability Well, the test speed is fast and it is suitable for various measurement environments. Its Specifications fully comply with national and international standards.

The Fe function detects the thickness of non-magnetic coatings on all magnetic substrates, such as paint applied to steel, iron, powder coating, plastic, porcelain, chrome, copper, zinc, etc.

Features

●Measurement method: F magnetic induction

●The spring guide sleeve probe with super wear-resistant carbide probe can ensure the probe has constant pressing force and stable sampling value when measuring on hard or rough surface;

●High precision, good stability, can measure 1-5μm ultra-thin coating;

●The measurement speed can reach 0.3 seconds/time;

●Large screen digital display is clearer;

●Two shutdown modes: manual shutdown and automatic shutdown;

●Wide measurement range and high resolution;

●Digital backlight display, no parallax, suitable for night use;

●Measurement mode: single measurement/continuous measurement;

●With metric and imperial unit conversion function, realize μm / mil conversion;

●The shell and internal structure are newly designed to enhance the product's appearance, drop resistance and impact resistance;

●Touch measurement accuracy is good.

Host X1, standard piece X6, base X1, manual X1, battery X2, warranty card X1, certificate X1, portable case X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
