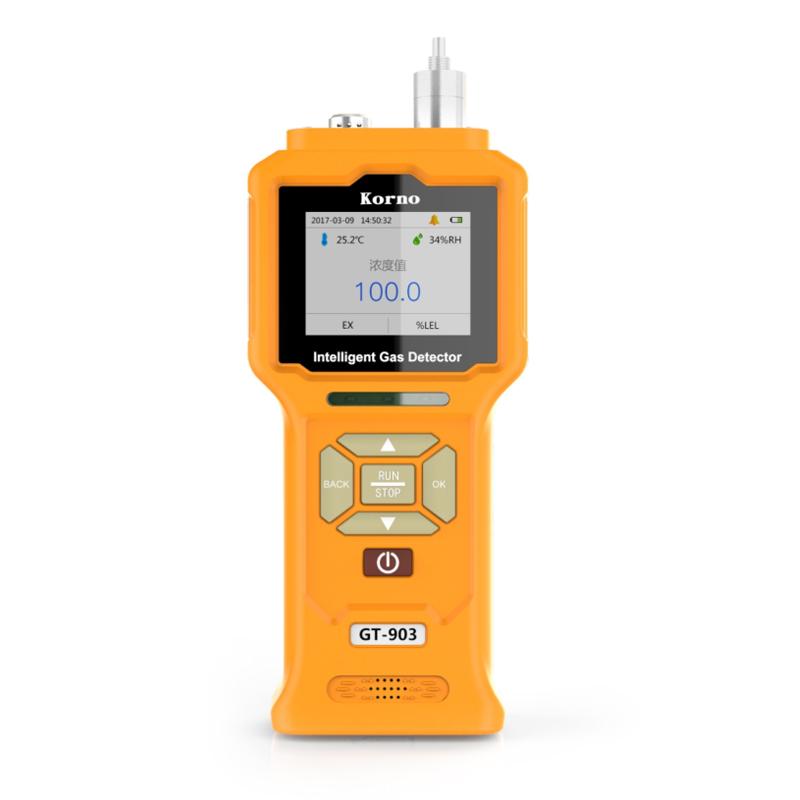

KORNO GT903-Y-THT Portable Tetrahydrothiophene Gas Detector
Pump suction, semiconductor nano process, low power consumption, test tetrahydrothiophene THT gas, range 0-50mg/m3, with a variety of detection modes, with temperature compensation function.
KORNO
GT-903-Y-THT
-
HUIRUIPU HRP-T1000-NH3 Ammonia Gas Detector (LCD display with lamp)
$ 231.00 -
Empaer APEG-D-EX Volkswagen Series Fixed Gas Detector
$ 234.00 -
Empaer AATL-H2S (pump suction) pathfinder series stationary hydrogen sulfide Detector
$ 689.00 -
HUIRUIPU HRP-T1000-NH3 Ammonia Gas Detector (with display and no light)
$ 215.00 -
Empaer SPES-EX series handheld gas concentration Detector
$ 223.00
Product Description
GT903-Y-THT portable tetrahydrothiophene (THT) Gas Detector is suitable for detecting the concentration of tetrahydrothiophene gas in various industrial environments and special environments. It adopts imported electrochemical gas sensor and microcontroller technology, and has a fast response speed. High measurement accuracy, good stability and repeatability, the performance of the whole machine is very good, various parameters can be customized by the user, and the operation is simple. Built-in 4000mA high-capacity polymer rechargeable battery, super long standby time; 2.4-inch industrial-grade color screen is used to fully display various technical indicators and gas concentration values, and historical data can be viewed on the screen, with storage, data export, temperature and humidity detection, etc. Function.
Instrument Features
①Using the new semiconductor nanotechnology ultra-low power consumption 32-bit microprocessor
② 2.4-inch industrial-grade color screen with a resolution of 320x240
② PPM, %VOL, mg/m3 three concentration units can be switched freely
③ With data storage function, a single channel can store 30,800 sets of data, you can visually view historical data on the screen, and you can export data
④ With temperature and humidity detection function, it can detect the temperature and humidity value of the gas in the field or in the pipeline (optional)
⑤ Various modes can be adjusted: detection mode, storage mode, display mode, air pump mode
⑥ Built-in powerful air pump, can work in micro-negative pressure environment, reasonable air chamber design can ensure that the sensor will not be disturbed by pressure
⑦ With overVoltage protection, overcharge protection, anti-static interference, anti-magnetic field interference and other functions
⑧ Full software automatic calibration, sensor up to 6-level target point calibration function, to ensure the accuracy and linearity of the measurement, and has the function of data recovery
⑨ Full Chinese/English operation menu, simple and practical
⑩ With temperature compensation function, the instrument is dust-proof and equipped with a dust filter, which can be used in various harsh occasions
KORNO GT-903-Y-THT Gas DetectorSpecifications
| LIST | VALUE |
|---|---|
| Detection gas | Tetrahydrothiophene (THT) Imported Electrochemistry Gas Sensors |
| Measuring range | 0-50Mg/m3 (depending on specific Sensors) |
| resolution | 0.01mg/m3 |
| Sampling method | Pump suction |
| Detection Accuracy | ≤ ± 3% Depending on Sensors |
| linearity error | ≤±1% |
| Zero drift | ≤±1%(F.S/年) |
| Sexual repeability | ≤±1% |
| Response time | ≤20s（T90） |
| recovery time | ≤20s |
| storage mode | Real-time storage and Timer storage can be set; 30,800 groups of data can be stored in a single channel, and historical data can be viewed on the screen |
| Shell material | ABS+PC |
| Operating Temperature | -30 ~ 60℃ |
| Operating Humidity | ≤ 95% RH, no condensation |
| Operating Pressure | -30Kpa ⃣ 200Kpa |
| Explosion-proof sign | Ex ia IIC T4 Ga |
| Protection class | IP66 |
| Power | 4000mA Rechargeable Polymer Battery |
| Execution standards | GB3836.1-2010、GB3836.4-2010 |
| Weight | 0.5Kg |
KORNO GT-903-Y-THT Gas Detector Packing list
host x1, manual x1, certificate of conformity
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
