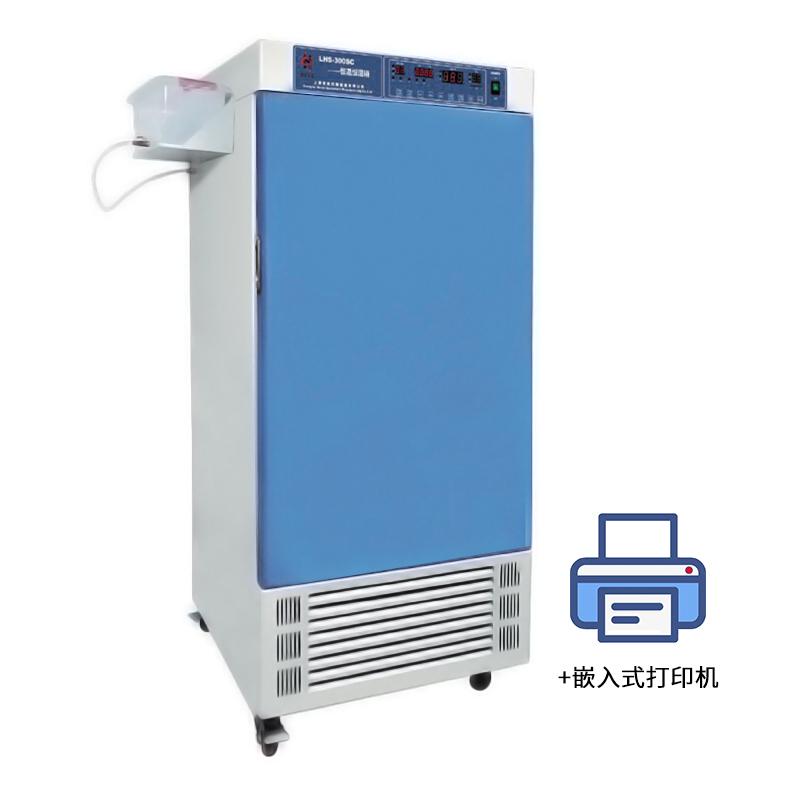

Huitai LHS-500HC constant temperature and Humidity Test Chamber -5~ 80 ℃/500L

product description

Huitai LHS-500HC Climate Chamber has an input power of 2000W, a volume of 500L, and a temperature control range of -5~80°C. It adopts large-screen LCD display, mirror-finished stainless steel liner, double-layer door structure, and good heat insulation effect. The temperature control of the constant temperature and Humidity Chamber is PID control, and the accuracy of temperature and humidity control fluctuates little.

Product use

Huitai LHS-500HC Climate ChamberWith a precise temperature and humidity control system, it provides various environmental simulation conditions for industrial research and biotechnology testing, so it can be widely used in sterility testing, stability testing, and industrial product testing in pharmaceuticals, textiles, and food processing. Raw material performance, product packaging, product life and other tests.

Features

1. Humanized design

●Large-screen LCD display, multi-group data display on one screen, menu-style operation interface, easy to understand and easy to operate. (standard configuration)

● Use 134 a, 406 a fluorine-free refrigerant, effective, energy-saving, and make the environment healthier!

● Mirror-finished stainless steel liner, semi-arc design at four corners for easy cleaning, and adjustable shelf spacing.

● Double-layer door structure is adopted, which has good heat insulation performance, and the temperature inside the box will not be affected when observing the situation inside the box.

● There is a test hole with a diameter of 25mm/50mm on the left side of the box, which is convenient for experimental operation and temperature measurement. (optional)

● Optional door observation window (except for optional, SC)

2. Quality Assurance

● International brand compressors are used, and the self-developed compressor cooling system can effectively prolong the service life of the compressor.

● Using JAKEL pipe flow circulation fan, coupled with uniquely designed air duct structure, creates a good air circulation system and effectively ensures the uniformity of temperature in the box.

● Adopt the humidity sensor of the international famous brand, and the self-designed built-in Water Tank electric heating tube humidification system can effectively guarantee the humidity deviation.

● PID control method, accurate temperature control and humidity control with little fluctuation, menu-style operation page, easy to understand and easy to operate.

● The program has 99 cycles, each cycle is divided into 30 segments, and each cycle is 99 hours and 99 minutes, which can meet almost all complicated experimental procedures.

3. Independent temperature limit alarm system (optional)

● If the temperature exceeds the limit, the operation will be automatically interrupted, and the audible and visual alarm will prompt the operator. Ensure the safe operation of the experiment without accidents.

4. Convenient data processing (optional)

● With USB or RS485 interface, it can be connected to a printer or computer, and can record the changes of temperature parameters. (optional)

Optional

Intelligent program controller

Independent temperature limit controller

BOD special socket

Embedded printer

RS485 interface and special software

Door observation window (except SC)

Test hole 25mm/50mm

LHS series Climate Chamber parameter comparison table

Note: The performance parameters are tested under no-load conditions, without strong magnetism and vibration: the ambient temperature is 20°C, and the ambient humidity is 50%RH.

1000L and other customized non-standard Incubators can be customized according to user needs.

Host X1, fuse X2, rack X2, water tank X1, certificate X1, manual X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
