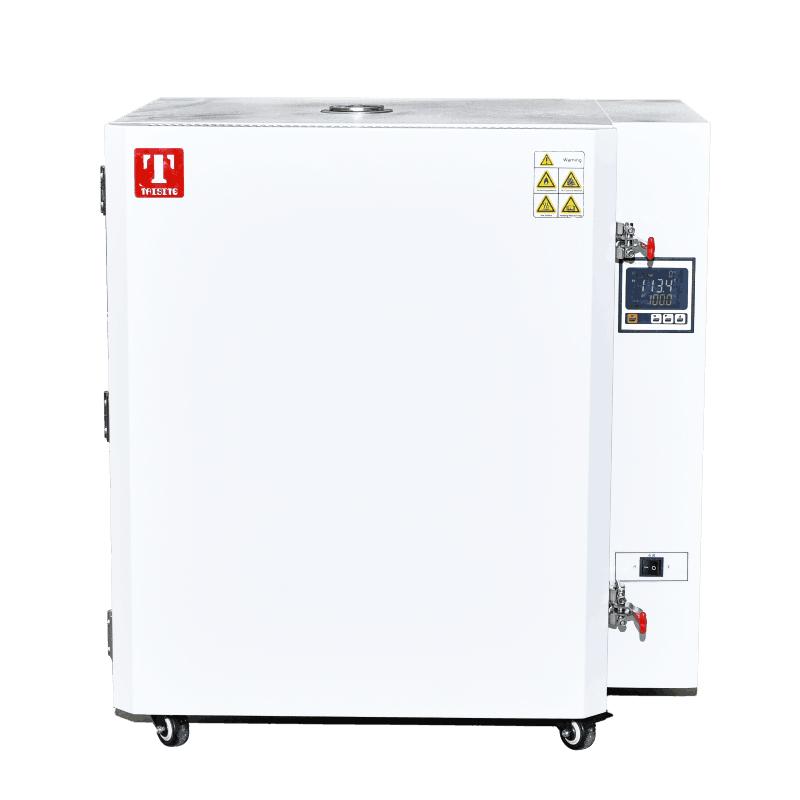

TAISITE TWG-4225L High temperature Drying Oven temperature control 400 ℃ Volume 225L
Temperature control 400 ℃, volume 225L, microcomputer PID high-precision temperature control, stainless steel heating tube, with over-rise alarm and menu lock safety function, forced hot air circulation air supply, Heating power 3.0KW.
TaiSiTe
TWG-4225L
-
SANFA GRX-30 Hot Air Sterilization Oven (Dry Heat Sterilizer) 35L
$ 462.00 -
YIHENG DHG-9203A Forced Air Drying Oven Power 2450W
$ 854.00 -
YIHENG BPZ-6123LCB Vacuum Oven imported Vacuumpump
$ 5491.00 -
HUITAI BPG-9620A digital blast oven volume 620L with test hole 50mm
$ 1877.00 -
Kenton KH-30AS digital blast drying oven 15L with independent temperature limiter
$ 349.00
Introduction
TWG high-temperature Drying Oven can realize drying, baking, sintering, curing, heat treatment, heat preservation and high temperature test.
Features
It can carry out high temperature heat resistance test and heat treatment at 400°C/500°C/6o0°C and below.
Intelligent microcomputer integrated temperature control system, PID logic operation function.
Color LCD screen digital display, with set temperature, constant temperature, timing, self-tuning, over-temperature alarm and other functions.
It has the function of call recovery, and also has the function of self-diagnosis of sensor start-up and over-temperature alarm.
The inner tank is made of 304 stainless steel, with rounded corners and corners, which is easy to clean.
The heating components are made of 304-resistant stainless steel heating tubes.
Inverted door lock, automatic locking when closing the door, easy to open and good sealing.
4 casters are given to facilitate the movement of the product, and there is a locking switch.
security
Over-lift alarm, menu lock.
TaiSiTe TWG-4225L High temperature Drying OvenSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | RT+10~400°C |
| Temperature Fluctuation | ≤±2℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±2.5% |
| Volume | 225L |
| Interior size | 500*600*750mm |
| Chamber material | 304 Hairline Brushed Stainless Steel |
| Shelf (std.) | 2pcs |
| Load per shelf | 10kg |
| Timer | 1~9999min |
| Power | 220V 14A |
| Heating power | 3.0KW |
| Dimensions | 870*810*1150mm |
| Communication interface | 485 interface |
| Convection mode | Forced hot air circulation |
| Optional accessories | Program Controller (30 segments), Independent Overtemperature Protection Controller, sound and light alarm, Timer, printing system, inert gas inflation valve, inert gas Control system, mobile phone SMS alarm |
| Packing size | 970*910*1280mm |
| Run function | Fixed value operation, regular operation |
| Temperature sensor | K type |
| Exhaust port | Overhead inner diameter 40mm |
| Heating tube | Dustproof stainless steel heating tube |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Heating rate | ≥5℃/min |
| Long-term use temperature | 380℃ |
TaiSiTe TWG-4225L High temperature Drying Oven Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
