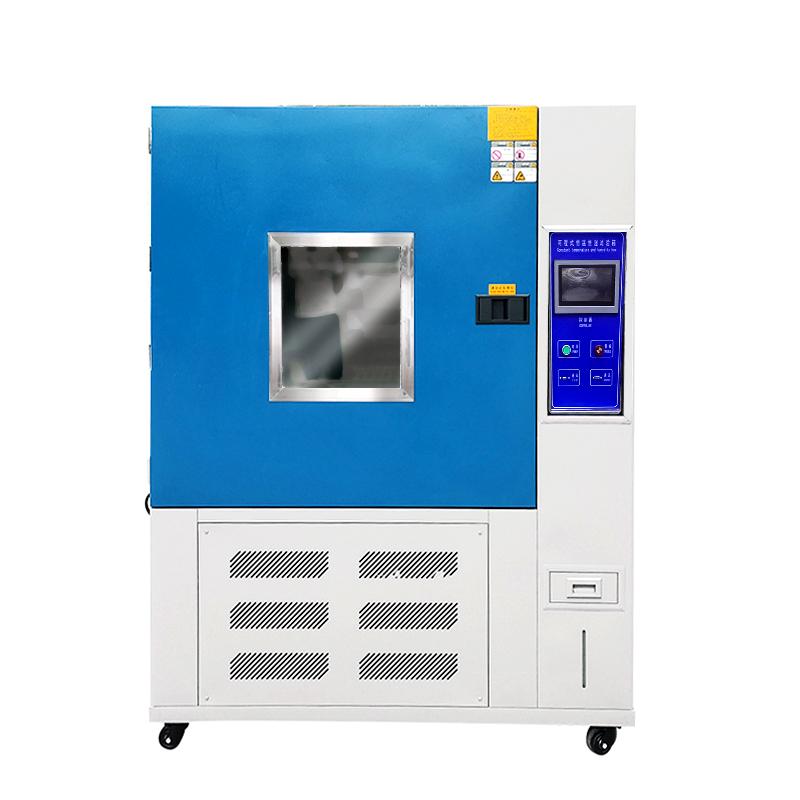

CHINA standard constant temperature and humidity laboratory Test Chamber, paint panel -20~150 ℃/50L

use

This constant temperature and humidity environment Test Chamber can simulate various temperature and humidity environments, and is mainly used to test the performance of materials in various environments and test the heat resistance, cold resistance, dry resistance and humidity resistance of various materials. It is suitable for quality inspection of products such as electronics, electrical appliances, communications, instruments, vehicles, plastic products, metals, food, chemicals, building materials, medical care, and aerospace.

Control method: Adopt balanced temperature and humidity control system (BTHC), the sensing system transmits the actual data in the Test Chamber to the controller, and the controller controls the SSR, multi-stage intelligent output, and balances the output power of the temperature and humidity system to ensure that the temperature and humidity in the Test Chamber The temperature and humidity are fully stable, and have energy-saving functions, which can reduce the power consumption of the instrument to a greater extent and ensure long-term accurate and stable operation of the instrument.

technical features

1. The product has beautiful appearance, reasonable structure, precise process, simple and convenient operation and stable and reliable performance.

2. The controller adopts a large-scale color LCD man-machine touch conversational LCD man-machine interface controller, which is easy to operate, easy to learn, stable and reliable, and can display complete system operating conditions, execution and setting program curves in Chinese and English, and can realize RS232 The computer interface is docked, and the instrument can be remotely controlled directly through the computer.

3. The refrigerating cycle system adopts a compressor: a fully enclosed compressor imported from Japan "Sanyo" brand (purchased by a French Taikang compressor), and all components are imported from Japan, France, the United States, Italy and other places of origin. The refrigerant adopts American environmental protection refrigerant (R23A, R404A).

4. There is a reserved test hole with a diameter of 50mm on the left side of the test box.

5. Equipped with full-automatic, high-precision system loop, any part action, PLC lock processing, all adopt PID automatic calculation control, the temperature of the whole area has high precision and high stability.

6. Specially designed air circulation system and sensor system, sensor detection and control at the air outlet and return air outlet to ensure the uniformity of temperature in the Test Chamber and avoid any dead angle.

7. It adopts enlarged observation window and 4-layer hollow tempered glass, which has a wider field of view.

8. The instrument has a comprehensive protection system, power overload protection, leakage protection, control circuit overload, short circuit protection, compressor protection, grounding protection, over-temperature protection, alarm sound prompts, etc. When any abnormal situation occurs, the fault will be automatically displayed on the screen immediately Point and reason and stop automatically.

Temperature and humidity control range curve

Heating system

Multi-section heating tubes are used to cooperate with PID modules to ensure temperature stability; segmental heating is fully energy-saving.

The heating tube adopts high temperature resistant and corrosion resistant alloy tube to prolong the service life

humidification system

The circular split type humidifier avoids the phenomenon of freezing during the low temperature test of the sink type humidifier.

The humidification tube is made of special alloy, which can be dry-burned for more than 1 hour when the instrument fails and lacks water. With the high temperature alarm module, the service life of the humidification system is effectively extended. Built-in Water Tank, drawer type Water Tank, convenient and beautiful.

With water circulation system, saving 40% of water.

It has a water quality filtration system to avoid blockage of the humidification system as much as possible and reduce cleaning frequency.

Air circulation system

1. High resistance air circulation motor

2. Multi-wing fan blade

3. Specially designed fan forced air circulation system

Cooling System

Compressor: Original imported Japanese "Sanyo" brand fully enclosed compressor (French Taikang compressor to buy)

Condenser: finned multi-stage condenser with integral forced cooling fan

Evaporator: Fin-type multi-stage automatic load capacity adjustment evaporator, with energy-saving regulating valve, to achieve forced refrigeration, constant temperature refrigeration section control

Refrigerant: The United States imports new environmentally friendly refrigerants R404A, R23A to achieve zero pollution to the environment

Freezing Oil: American Ice Bear Freezing Oil

Drying filter: Italy Castel drying filter

Solenoid valve: Japanese Lugong solenoid valve

Copper pipes: The pipes used in the refrigeration system are all made of imported red copper material, which has the advantage of good flexibility and is not easy to break, and has a better shock-absorbing effect on the long-term vibration characteristics of the refrigeration system.

controller

• Imported 7-inch color touch screen display

• Touch screen direct button type (touch screen operation control)

• Simultaneously programmable controller for temperature and humidity

• Chinese and English display

• Large LCD liquid crystal display controller with high contrast and adjustable backlight function.

• Accuracy: temperature ±0.1℃, humidity ±1%RH

• Resolution: temperature ±0.1, humidity ±0.1%RH

• With upper and lower limit standby and alarm function

• Temperature and humidity input signal selection PT 100Ω×2 (dry bulb and wet bulb)

• 9 groups of PID control parameter settings, PID automatic calculation

• Dry and wet bulb automatic correction

• Direct display of temperature and humidity setting (SV) and actual (PV) values

• Can display the current program number, segment, remaining time and cycle times

• Running cumulative time function

• The set value of the temperature and humidity program is displayed as a graphic curve, with the function of real-time display of the program curve execution

• With a separate program editing screen, each page can input at least 5 stages of temperature, humidity and time

• Chinese and English can be switched at will.

• The fault prompt screen is displayed.

• Adjustable screen backlight

• The screen display protection function can be set as a timer or manually closed.

• Available program groups: up to 120 groups

• Usable memory capacity: 1200 parts in total

• Repeatable commands: each command can be up to 999 times

• The production of the program adopts a conversational style, with functions such as editing, clearing, and inserting

• SEGMENTS Time setting 0 ~ 99Hour59Min

• It has the function of power-off program memory, automatically starts and continues to execute the program after power-off

Standards

The performance index meets the requirements of GB5170, 2, 3, 5, 6-95 "Environmental Test Basic Parameter Verification Method for High Temperature, Constant Humidity, Alternating Humidity Test Equipment"

Environmental test procedure test B: high temperature test method GB 2423.2-89 (IEC68-2-2)

Environmental test procedure test Ca: constant damp heat test method GB/T 2423.3-93 (IEC68-2-3)

Environmental test procedures Test Da: Alternating damp heat test method GB/T423.4-93 (IEC68-2-30)

complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
