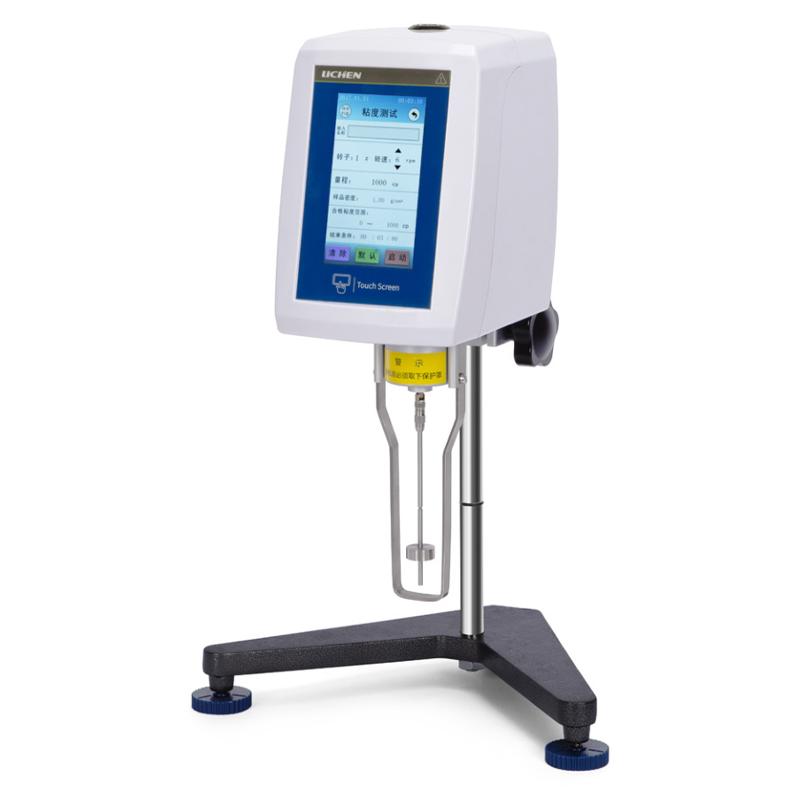

Lichen NDJ-1T Touch Screen Digital Viscometer 60000mPa's
Touch screen, 60000mPa's, rotational speed 6/12/30/60rpm, with 1, 2, 3, 4 rotors, repeability error 1% FS, measurement accuracy ± 2%
LICHEN
NDJ-1T
-
HuiNuo NDJ-8S Digital display swirl/spin Viscometer Experimental Viscosity meter 2 million CP
$ 556.00 -
NIRUN RDV-3 + Pro Digital Viscometer 20~40 million cP Measurement range
$ 4627.00 -
SNB-1 NDJ Digital Viscometer LCD Rotational Viscometer +/- 5%
$ 1014.00 -
HUINUO SNB-3 digital display Rotational Viscometer with a small number of sample adapters
$ 1614.00 -
Ander NDJ-79 Pointer Viscometer Viscosity Range 2~ 1000000mPa·s
$ 568.00
Viscometer is a physical property analysis instrument to measure the viscosity of fluids, viscosity is a physical property of fluid substances, which reflects the intermolecular presentation of fluids when they are subjected to external forcesThe viscosity of a substance is closely related to its chemical composition. In industrial production and scientific research, the composition or quality of substances is often monitored by measuring viscosity.
Features
It has an automatic scanning mode, which makes it easy for customers to test when the viscosity of the sample is uncertain
It has a data storage function and can store 30 measurement results
It has a curve function that allows you to display and view the measurement curve
LCD color touch screen, display parameters are more intuitive, easy to use and operate, beautiful and generous
Equipped with RS232 interface, Bluetooth printing function, can be connected to the printer output use, diversified full
Meet the needs of the public
Equipped with a temperature sensor interface, the sample temperature can be detected in real time
Equipped with a computer interface, it is convenient to connect with the computer for output use
It has the function of timing measurement and over-travel alarm
Microcomputer control technology, high measurement sensitivity, reliable test results, good anti-interference
A universal joint is added to the interface connecting the rotor for easy steering
The handwheel is a highly wear-resistant, high-performance engineering plastic, which is easy to operate
Chinese and English display, can be switched randomly
It can be used to measure the absolute viscosity of Newtonian liquids and the apparent viscosity of non-Newtonian liquids
LICHEN NDJ-1T Touch Screen Digital ViscometerSpecifications
| LIST | VALUE |
|---|---|
| Display | touch screen |
| Measuring range | 1~60000mPa`s |
| Rotor Specifications | 1 #, 2 #, 3 #, 4 #(0 #optional) |
| Rotor speed | 6/12/30/60rpm |
| Repeatability | 1%FS |
| Measurement Accuracy | ±2% |
| Viscosity display Accuracy | 0.01mPa`s |
| Power | AC110-240V 50/60Hz DC12V |
| Input power | 120W |
| Data Interface | Temperature transducer interface, computer interface, RS232 interface |
| Dimensions | 300*300*540mm |
| Weight | 4.6kg |
| Operating language | Chinese and English display |
| Environment Operating Temperature | 5~35℃ |
| Environment Relative Humidity | ≤80% |
LICHEN NDJ-1T Touch Screen Digital Viscometer Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
