TASI TASI-602 Thermocouple Temperature Logger, Single Channel, Resolution 0.1 ℃ Type K/J for

Thermocouple temperature logger product characteristics

*Type K/J thermocouple probe, single channel input.

*Thermocouple line temperature compensation adjustment, reduce the error of thermocouple line, compensation temperature adjustment range ± 3°C.

*Maximum, Minimum, Average, Relative Reading, and Reservation Functions.

*Auto shift 0.1°C/1°C.

* Auto shutdown function, backlight display function.

*Up to 125 sets of measurement data can be stored.

*Adjustable ±3°C thermocouple offset value.

*°C/°F unit selection function.

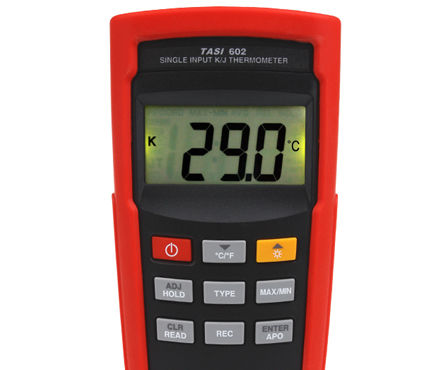

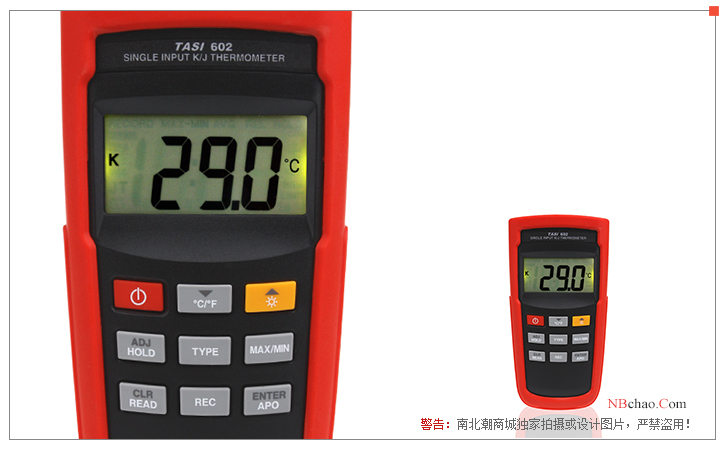

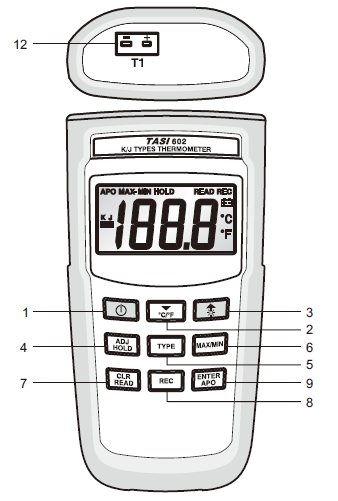

Functional structure diagram

1. Power switch button

2. "/" down/temperature unit selection button

3. " " " Adjust the function button / window backlight

4. "ADJ/HOLD" adjust/read value lock function button

5. "TYPE" type selection button

6. "MAX/MIN" automatically memorizes the maximum/minimum/maximum-minimum reading function

7. "CLR/READ" clear/read button

8. "REC" record button

9. "ENTER/APO" confirm/auto-shutdown button

12. "T1": T1 channel input temperature seat

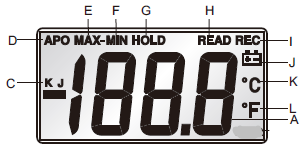

A- Temperature measurement results;B-T1, T2 channel symbols (TASI-603);C-Thermocouple input type

D - Auto Shutdown Symbol;E - maximum value display symbol;F - Minimum value display symbol

G-Reading Lock Symbol;H-Record data reading symbol;I-Data Record Symbol

J - Low Voltage display symbol； K-Celsius temperature unit symbol;L-Fahrenheit temperature unit symbol

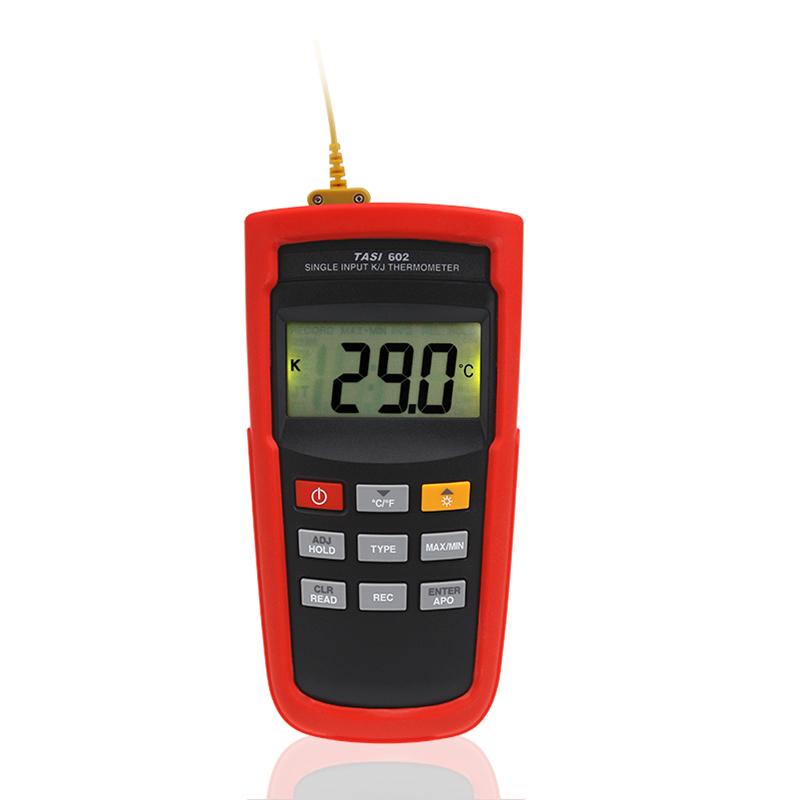

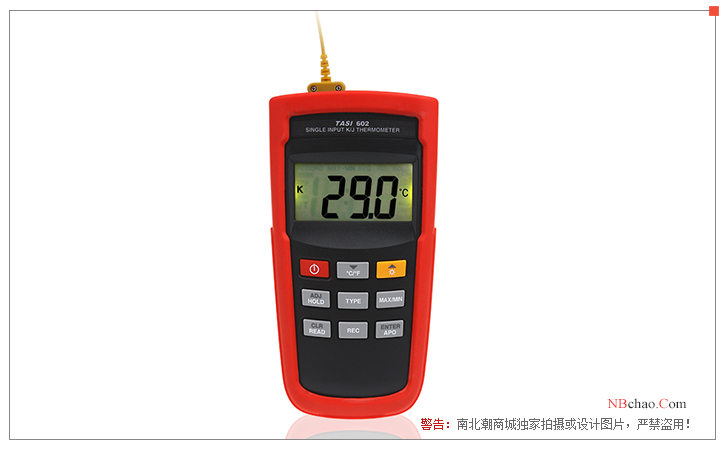

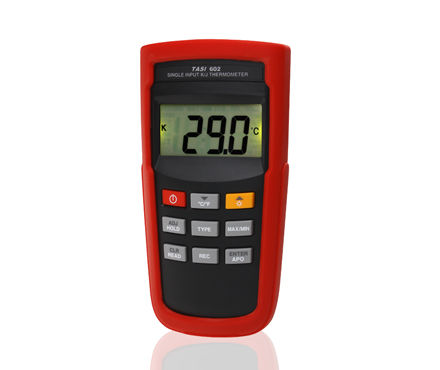

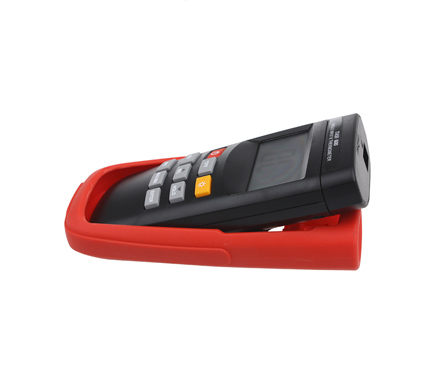

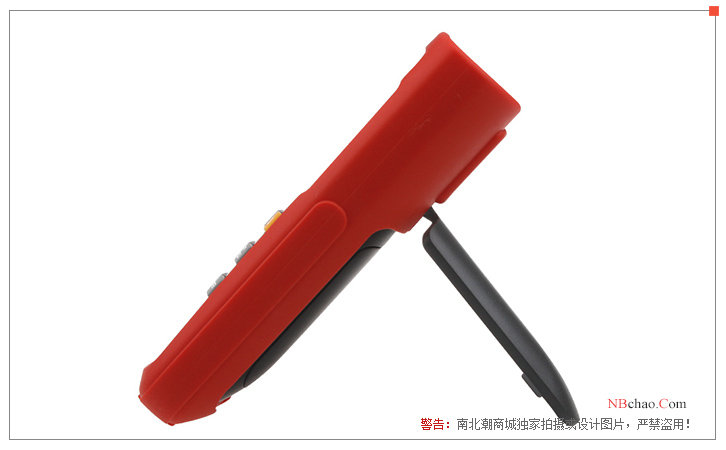

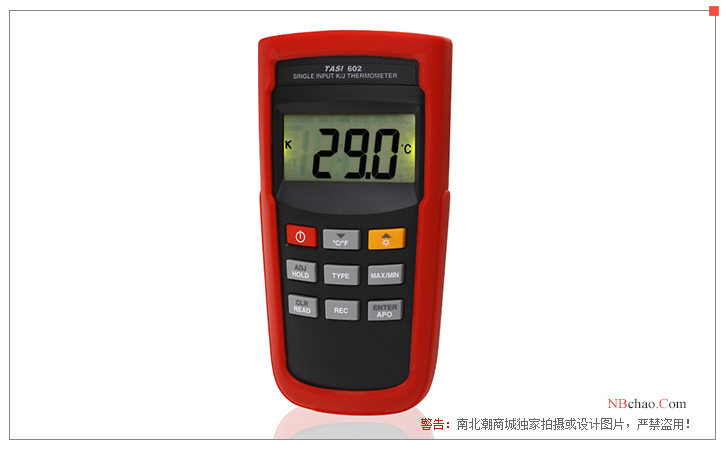

Product display diagram

Safety instructions for the operation of thermocouple temperature loggers

Before using the thermometer, please read the operating safety instructions and instructions.

When the surface measurement Voltage exceeds 24V DC/AC, the measurement needs to be stopped to avoid clicks.

Do not use in the microwave to avoid burning.

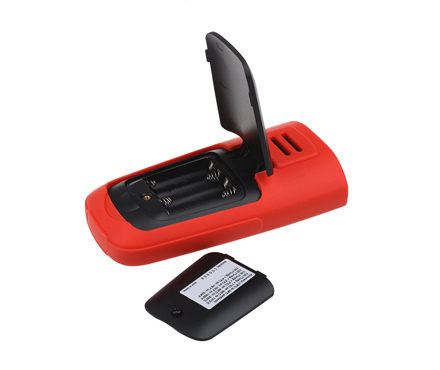

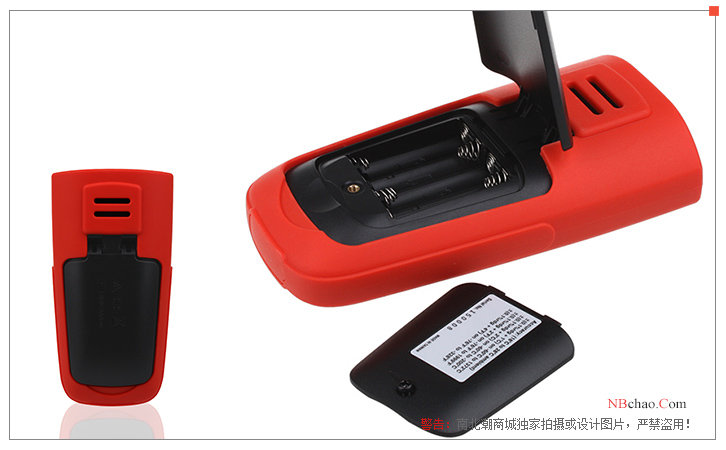

Before replacing the battery, be sure to unplug the temperature test lead from the thermometer to maintain safety.

Precautions for the use of thermocouple temperature loggers

1. If the battery is insufficient, please replace the battery to maintain the accuracy of the test.

2. When the thermometer is not used for a long time, please remove the battery from the thermometer and avoid storing it in a high temperature place.

3. Regularly use a soft damp cloth dipped in neutral detergent to gently wipe the shell, not use an abrasive cloth or solvent with soluble ability to wipe.

4. Repeatedly bending the thermocouple line will break it. Avoiding bending thermocouple wires, especially near corners, can extend the life of thermocouple wires.

Place of use

Greenhouses, offices, laboratories, environmental research, climate monitoring, art galleries, department stores, factories.

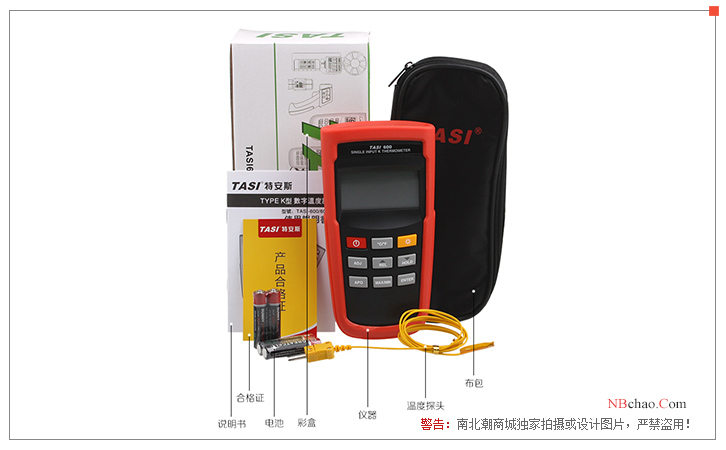

machine X1, manual X1, certificate X1, warranty card X1

[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
