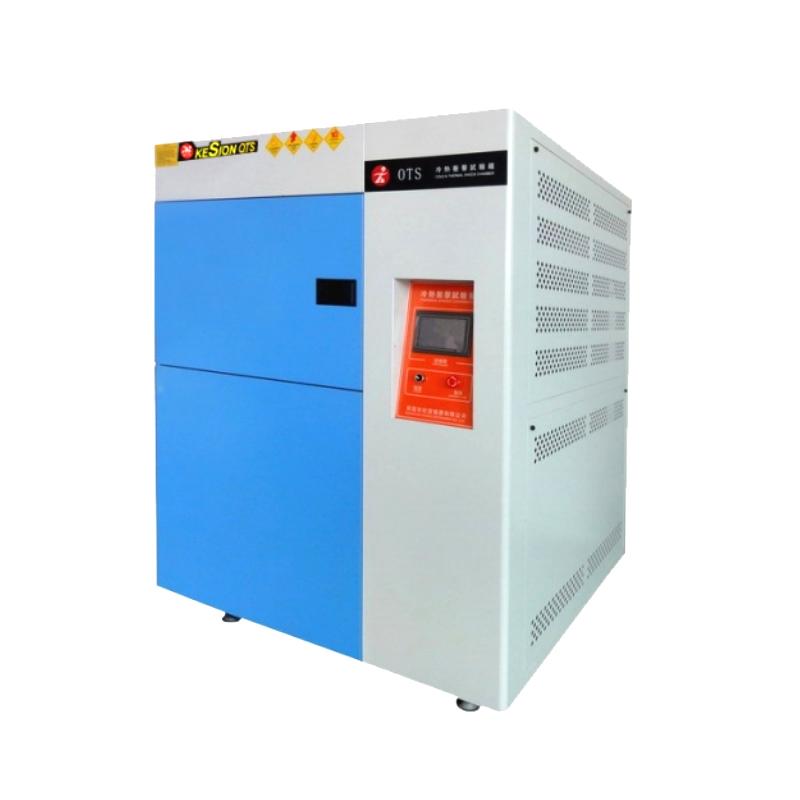

KESIONOTS Appliance High and Low Temperature Impact Tester KS-OTS-LR50LC Low Temperature -65 ℃/50L
Low temperature zone -10 ℃~ -65 ℃, divided into high temperature zone, low temperature zone, test zone three boxes, volume 50L, 304 stainless steel inner box material, suitable for testing material structure or composite.
kesionots
KS-OTS-LR50LC
-
KESIONOTS Plastic Thermal Shock Tester KS-OTS-LR408LC Low Temperature -65 ℃/408L
$ 29329.00 -
FARUI FR-1219-50 (40 ℃) triple-channel Thermal Shock testing device
$ 15891.00 -
Aipei 3AP-CJ-50C Three-Chamber Thermal Shock Test Chamber Air-Cooled -65 ℃
$ 19008.00 -
KESIONOTS Three Box Thermal Shock Tester KS-OTS-LR225LB Low Temperature -55 ℃/225L
$ 35313.00 -
Aipei 2AP-CJ-80B Two-Chamber Thermal Shock Test Chamber Air-Cooled -55 ℃
$ 17457.00
Introduction
Thermal shock testing machine, used to test the material structure or composite material, in an instant through the extreme high temperature and extremely low temperature continuous environment, so as to test the chemical changes caused by thermal expansion and contraction in the shortest time or physical damage. Applicable objects include metal, plastic, rubber, electronics... and other materials, which can be used as the basis or reference for product improvement.
Three-Chamber equipment structure
◆High-temperature zone, low-temperature zone, and test zone. The test product is placed in the test zone. During impact, the temperature of the high-temperature zone or low-temperature zone rushes into the test zone for impact. The test product is static.
*Adopt the touch-control graphical operation interface, which is easy to operate.
*The impact method uses the wind circuit switching method to introduce the temperature into the test area, and do the cold and heat impact test.
kesionots KS-OTS-LR50LC Thermal Shock Test ChamberSpecifications
| LIST | VALUE |
|---|---|
| Temperature range | High temperature zone: 60 ℃~ 150 ℃; low temperature zone: -10 ℃~ -65 ℃ |
| Heating rate | RT-200 ℃ takes about 35min |
| Cooling rate | RT-70°C≈85min |
| Liner size | 360*400*350mm |
| Dimensions | 1380*1800*1550mm |
| Temperature recovery time | Within ≤ 5min |
| Temperature transition time | ≤ 10s |
| Temperature control Accuracy | ±0.5℃ |
| Temperature Uniformity | ±2.0℃ |
| Liner material | stainless steel |
| Enclosure Material | The whole machine is SUS304 #stainless steel plate matte surface treatment or cold-drawn steel plate nanotechnology advanced baking paint |
| Thermal insulation material | High temperature resistant high density formic acid vinegar foam insulator material |
| system | P.I.D + S.S.R + microcomputer equilibrate temperature Control system |
| Chill down the system | Semi-hermetic double-stage compressor (water-cooled)/fully hermetic double-stage compressor (air-cooled) |
| protection device | Fuseless switch, compressor high and low Voltage protection switch, refrigerant high Voltage protection switch, fault warning system, electronic alarm |
| Accessories | viewing window (special optional type), two Upper/Lower adjustable partitions, power-on measuring holes, casters, horizontal brackets |
| Power | AC 380V 50HZ/60HZ |
| Weight | 700kg |
| Controller | South Korea "TEMI" South Korea "TEMI" or Japan "OYO" card |
| Refrigeration system | French "Taikang" brand or German BITZER |
| Inner Volume | 50L |
kesionots KS-OTS-LR50LC Thermal Shock Test Chamber Packing list
host X1, manual X1, certificate X1, warranty card X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
