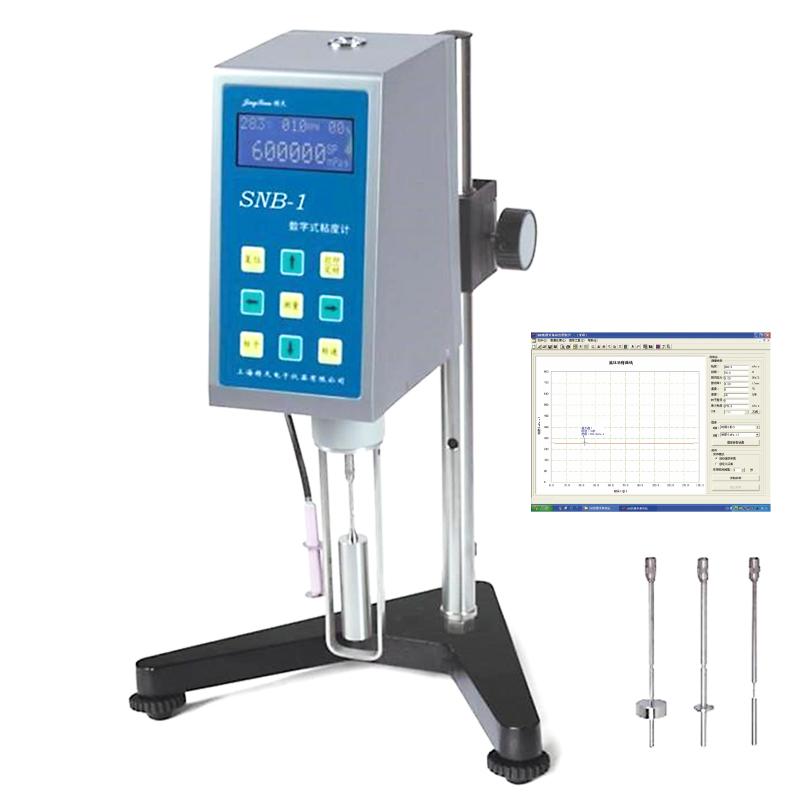

JINGTIAN SNB-1 Experimental Rotational Viscometer with data collection analysis software 600,000 CP
Equipped with data collection analysis and drawing software, can collect analysis and download data, measurement viscosity up to 600000mPa·s, equipped with L1, L2, L3, L4 four rotors, Rotation speed 60rpm.
JingTian
SNB-1 + analysis software
-
HUINUO LVDV-2H digital display swirl/spin high temperature Viscometer 1 million mPa · s 250 ℃
$ 2154.00 -
HUINUO RVDV-1 digital display Rotational Viscometer 40 million mPa · s 99.9rpm
$ 1260.00 -
HUINUO HBDV-2 Digital Rotational Viscometer with L0 rotor
$ 1964.00 -
Ultra low viscosity adapter LCP (T) (with dedicated temperature sensor)
$ 2682.00 -
NIRUN DV-79 Digital Viscometer with Printer 1 million mPa · s
$ 1059.00
Introduction
The LCD of Jingtian SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotation speed, temperature, percentage torque, rotor number and the maximum measurable viscosity of the selected rotor at the current rotation speed. Worth waiting. It is a digital display Rotational Viscometer with a measuring range of 20 to 600,000 mPa·s.

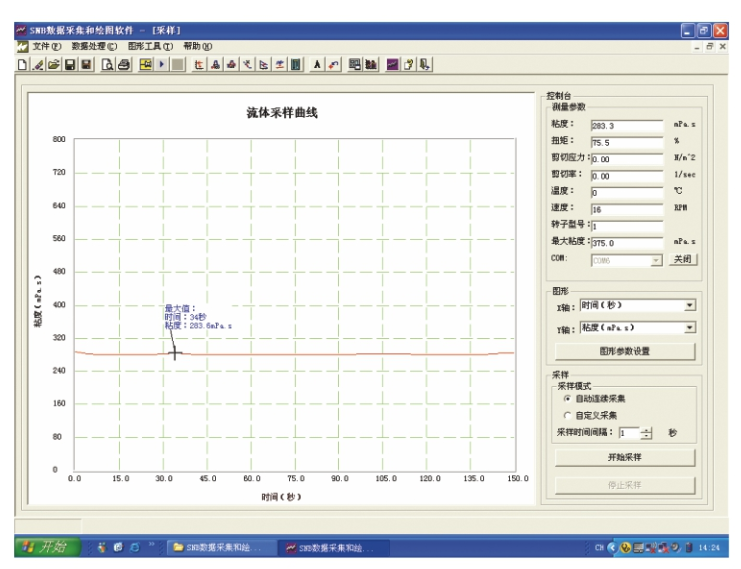

Introduction to data acquisition, analysis and graphing software
Automatically collect and record measurement data and generate relevant measurement curves, conduct data analysis, support ten historical data comparisons, output excel format files and print charts.
JingTian SNB-1 + analysis software Digital Rotational ViscoMeterSpecifications
| LIST | VALUE |
|---|---|
| Display mode | digital |
| Measurement range | 20~600000mPa·s |
| Rotor specification | L1#、L2#、L3#、L4# |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 1~60rpm |
| Display information | Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc |
| Rotation speed Control mode | Continuously variable speed |
| software system | With data collection analysis and mapping software |
JingTian SNB-1 + analysis software Digital Rotational ViscoMeter Packing list
Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
