Introduction
The LCD of Shanghai Jingtian SNB-2 digital display rotary viscometer can display viscosity, shear rate, shear stress, rotation speed, temperature, percentage torque, rotor number and the maximum measurable value of the selected rotor at the current rotation speed. Viscosity value, etc. It is a digital display Rotational Viscometer with a measuring range of 12 to 6,000,000 mPa·s.

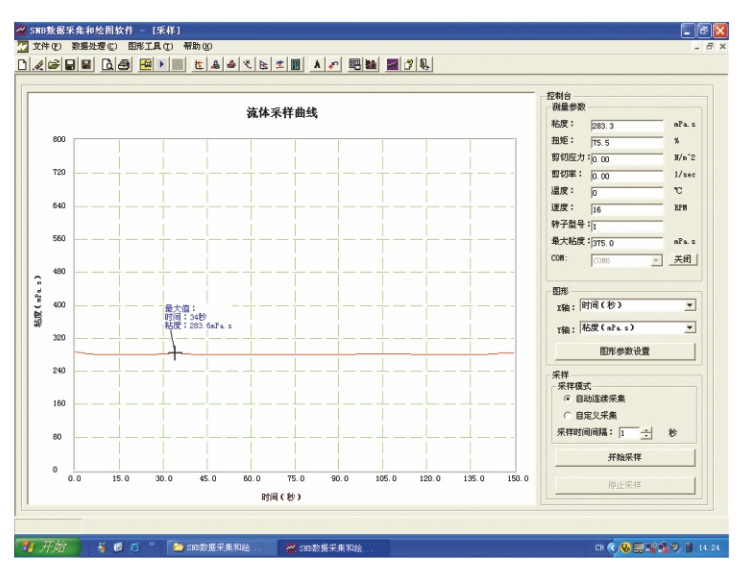

Introduction to data acquisition, analysis and graphing software
Automatically collect and record measurement data and generate relevant measurement curves, conduct data analysis, support ten historical data comparisons, output excel format files and print charts.
JingTian SNB-2 + Data analysis software Digital Rotational ViscoMeterSpecifications
| LIST | VALUE |
|---|---|
| Display mode | digital |
| Measurement range | 12~6000000mPa·s |
| Rotor specification | L1#、L2#、L3#、L4# |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±1%F.S |
| Power | Dedicated power adapter (input 100~240V 50~60Hz) |
| Rotor speed | 0.1~99.9rpm |
| Display information | Viscosity, Rotation speed, percentile torque, rotor number and the maximum viscosity value of the selected rotor at the current Rotation speed, etc |
| Rotation speed Control mode | Continuously variable speed |
| software system | With data collection analysis and mapping software |
JingTian SNB-2 + Data analysis software Digital Rotational ViscoMeter Packing list
Host X1, protection frame X1, rotor X1 (sleeve), base and horizontal adjustment bolt X1, lifting frame and lifting mechanism X1, special power adapter X1, wrench X1, RTD temperature sensor X1
[Note] Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
